69
KEYPAD OPERATION
This Chapter describes the operation of the standard Keypad of the
Soft-Starter SSW-06, providing the following information:
General Keypad Description;
Use of the Keypad;
Soft-Starter SSW-06 Parameter organization;
Parameter programming;
Description of the Status Indicators.
The standard Soft-Starter SSW-06 Keypad has two readout displays: a
LEDreadoutwitha4digit,seven-segmentdisplayandaLCDdisplay
with two lines of 16 alphanumeric characters. There are also 4 indicator
LED’sand8keys.Figure4.1showsthefrontviewoftheKeypadand
indicatesthepositionofthereadouts,keysandstatusLED’s.
Functions of the LED Display:
Shows error messages and status (see Parameter, Error and Status
Message Quick Reference), the parameter number or its content. The
unit display (to the right) indicates the unit of the indicated variable.
A → current
U → voltage
H → frequency
Blank → other parameters
NOTE!
When the indication is equal or higher than 1000 (A or U), the variable
unit will not be indicated (ex.: 568.A, 999.A, 1000.,1023., etc.)
NOTE!
When the indication is higher than 9999 (in A, for instance), the number
corresponding to ten thousand will not be displayed (Ex.: 12345 A
will be read as 2345 A).The correct indication will be displayed only
ontheLCDdisplay.
4.1 DESCRIPTION OF THE
KEYPAD (HMI-SSW06)
CHAPTER 4

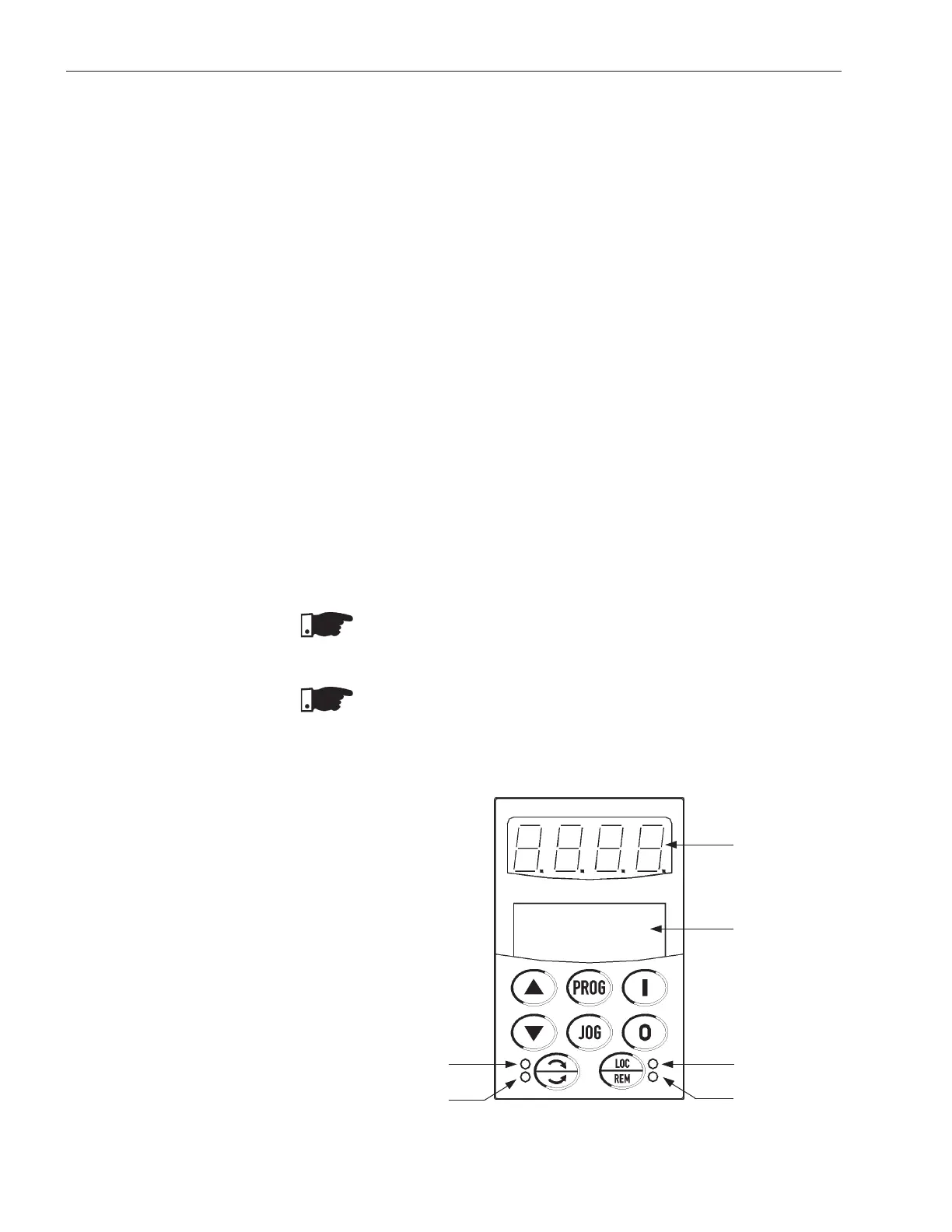

Figure 4.1 - SSW-06 keypad
RedLED"Remote"
GreenLED"Local"
LCD-Display
LED´sDisplay
GreenLED"Forward"
RedLED"Reverse"
