CHAPTER 4 - KEYPAD OPERATION
70

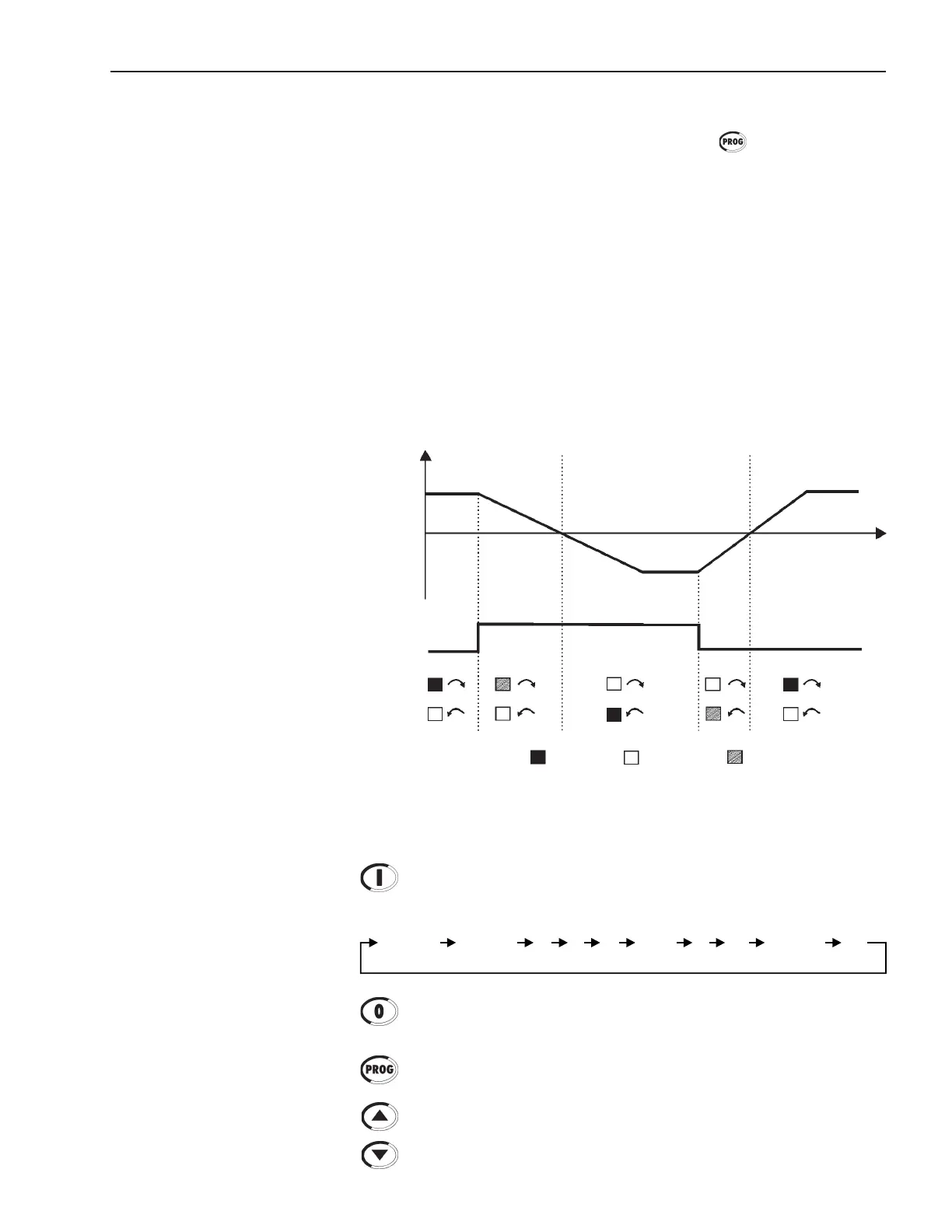

Operation of the keypad:
Starts (Enable) the motor (start).
After starting, at each touch it commutates the fast access indication
(refer to item 4.2.2) on the display, as indicated below:
Stops (Disables) the motor (stop).
Also resets the Soft-Starter after a fault has occurred.
TogglestheLEDdisplaybetweentheparameternumberanditsvalue
(position/content).
Increases the number of the parameter or the value of the parameter.
Decreases the number of the parameter or the value of the parameter.
Functions of the LCD Display:
TheLCDDisplayshowstheparameternumberanditsvaluesimul-
taneously, without the need of pressing the key. It also provides
a brief description of each parameter and also the units
(A, Hz, V, s, %, etc.) when necessary. It also provides a brief descrip-
tion of the fault code and inverter status.
Local and Remote Led Functions:
Soft-Starter in Local Mode:
GreenLedOnandRedLedO󰀨.
Soft-Starter in Remote Mode:
GreenLedO󰀨andRedLedOn.
Direction of Rotation (FWD/REV) LED Functions:
Not implemented in this Software Version
Speed
ON
OFF
FLASHING
Forward
Forward
Reverse
Figure 4.2 - Direction of Rotation (FWD / REV) LED´s
0
FWD / REV Command (key)
Current%
SSW
Current%
Motor
A
V
Input
Hz Status
SSW
P.F.V
Output
Torque%
Motor
kW
