Wood-mizer LT70L DH - Page 137

Sawmill Alignment
Complete Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-35
7

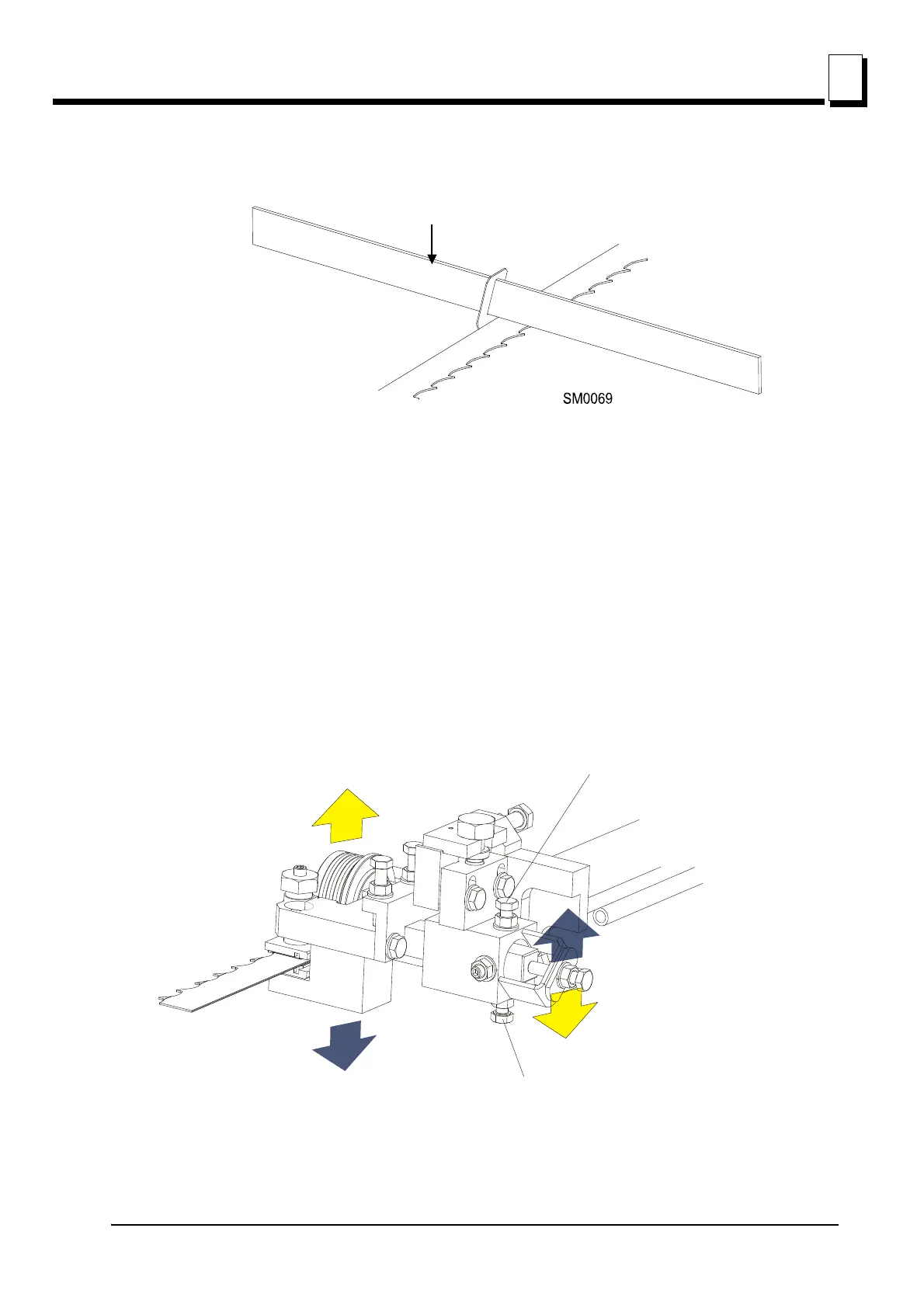

See Figure 7-35.
3. Move the carriage so that the front end of the tool is positioned above the bed rail. Measure the
distance from the bed rail to the bottom edge of the tool.
4. Move the carriage so that the back end of the tool is positioned above the bed rail. Measure the
distance from the bed rail to the bottom edge of the tool.
5. If the measurement from the tool to the bed rail is not equal, adjust the vertical tilt of the outer blade
guide roller.
See Figure 7-36. Loosen the jam nuts on the top and bottom vertical tilt adjustment screws. To tilt
the roller up, loosen the bottom screw and tighten top screw. To tilt the roller down, loosen the top
FIG. 7-35
FIG. 7-36
Clip tool to blade
Top Vertical Tilt
Adjustment Screw
Bottom Vertical Tilt
Adjustment Screw
Adjust screws down
to tilt roller up; Adjust
screws up to tilt roller
down
600034b
Top Vertical Tilt
Adjustment Screw
Adjust screws down to
tilt roller up; Adjust
screws up to tilt roller
down
Bottom Vertical Tilt
Adjustment Screw
