Wood-mizer LT70L DH - 3.7 Tracking The Blade

Sawmill Setup
Tracking The Blade
Sawmill Setup 60HDdoc102619 3-15
3
3.7 Tracking The Blade
1. Turn the key switch to #3 position.
2. Engage the blade switch.
3. Manually spin one of the blade wheels until the blade positions itself on the blade wheels.
4. Check that if the blade is properly positioned on the blade wheels.

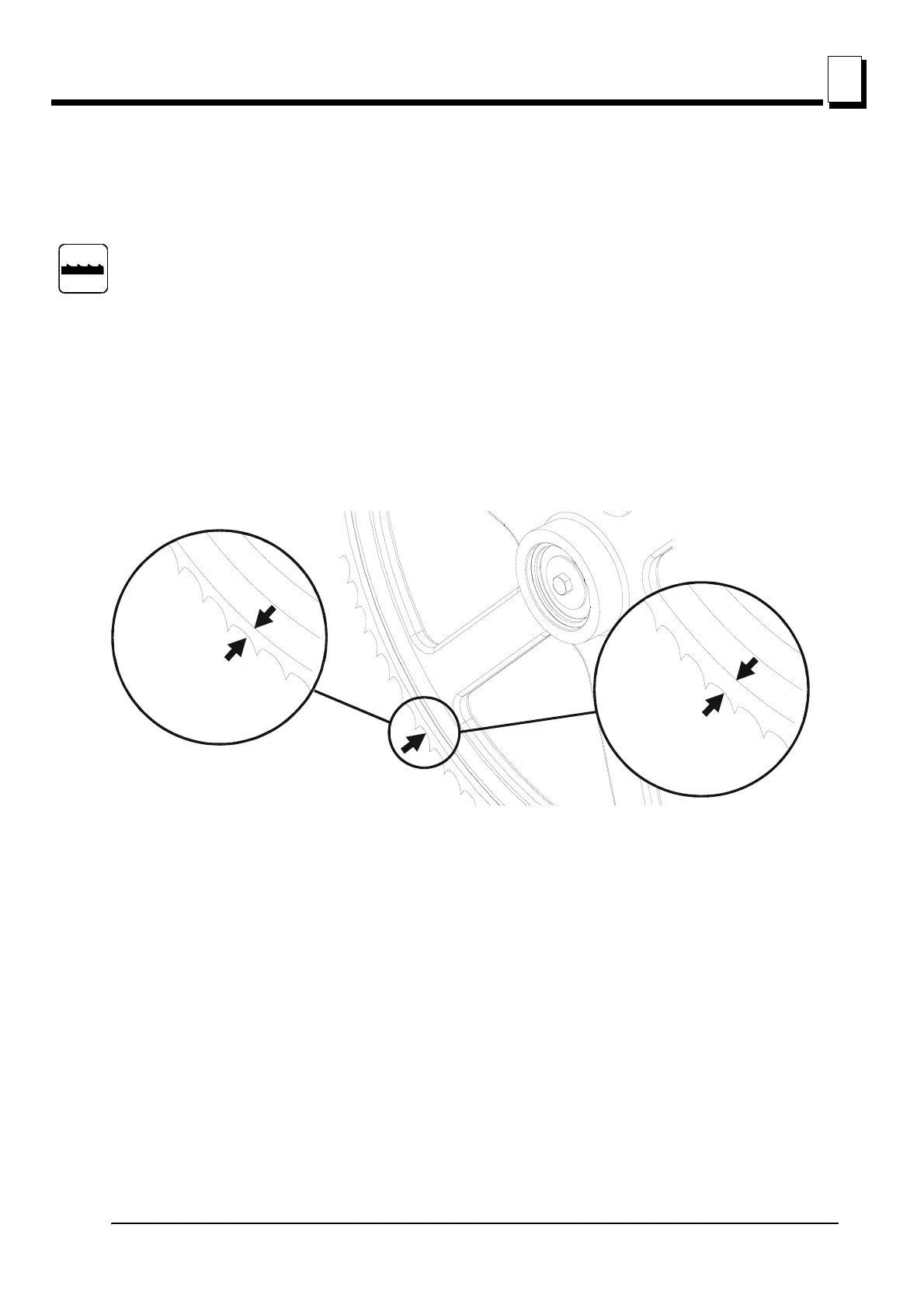

See Figure 3-7. Position 1 1/4” wide blades so the gullet is 1/8" (3.0 mm) out from the edge of the
blade wheel (±0,04” [1 mm]). Position 1 1/2”, 2” blades so the gullet is 0,16” (4 mm) out from the
edge of the blade wheel (±0,04” [1 mm]).
5. Use the cant adjustment bolt to adjust where the blade travels on the blade wheels.
FIG. 3-7
SM0044D
1 1/2"
Blade
± 1 mm (0.04”)
1 1/4"
Blade
3.0 mm (0.12”)
± 1 mm (0.04”)
4.5 mm (0.18”)
1 1/4”
Blade
1 1/2”
Blade
