3-16 60HDdoc102619 Sawmill Setup
See Figure 3-7.
To move the blade out on the blade wheel, turn the cant adjustment bolt clockwise. To move the
blade in on the blade wheel, turn the bolt counterclockwise.
NOTE: Slight adjustments of the side bolts on the outer blade wheel
are usually all that is necessary to track the blade properly.
See Section 7.4 for complete blade wheel alignment instructions.
6. Adjust the blade tension if necessary to compensate for any changes that may have occured while
adjusting the cant control.
7. Spin the blade wheel by hand.
8. Check again the position of the blade on the blade wheels.
9. Repeat Steps 4 - 7 as necessary until the blade tracks on the blade wheels properly.
10. Turn the key switch to #0 position
11. Be sure to close the blade housing and pulley covers when the adjustment is complete.

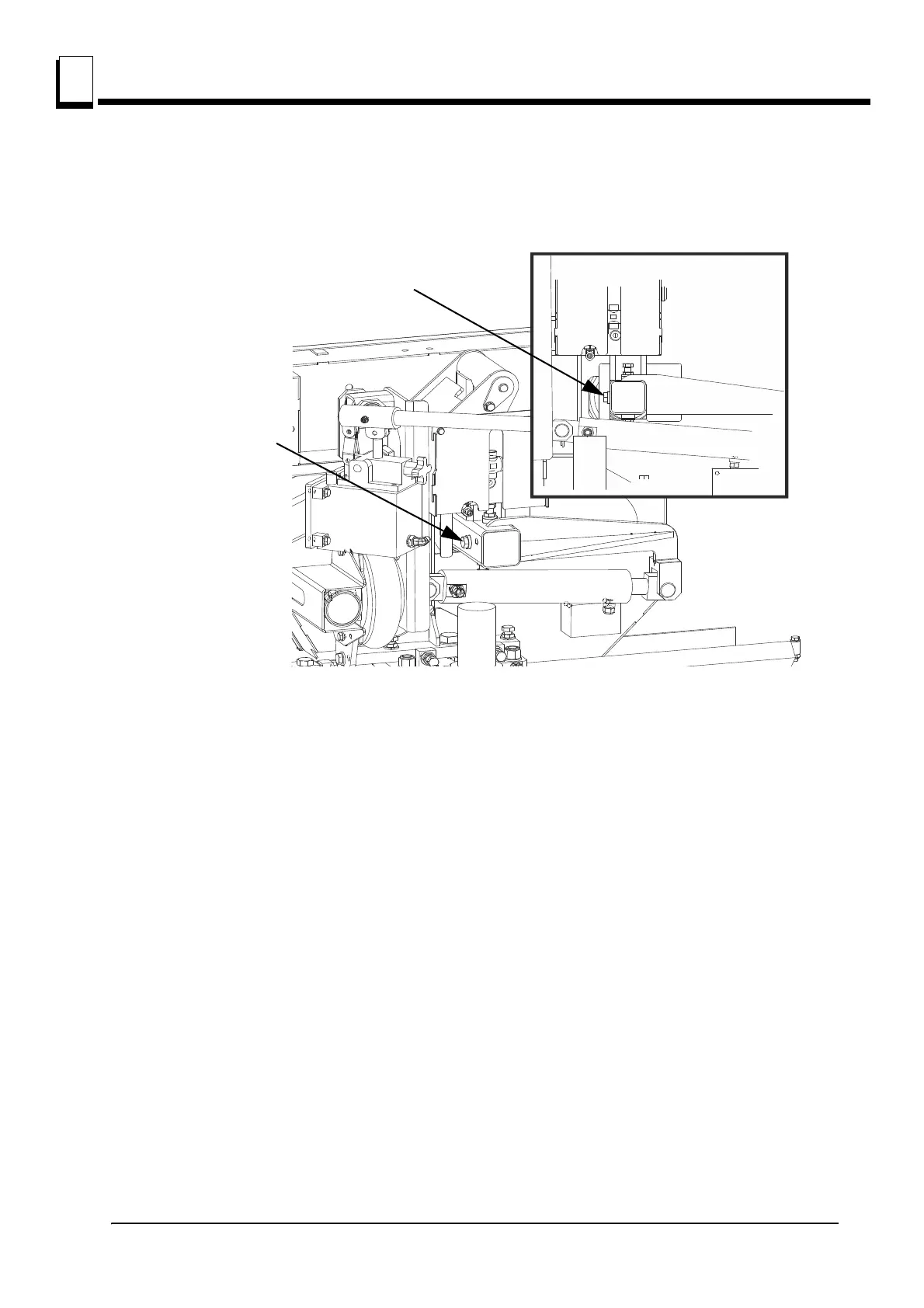

FIG. 3-7
Turn bolt clockwise
to move blade out on
wheel; counterclock-
wise to move blade in
on wheel.
Cant
Adjustment Bolt
(See Detail)
DETAIL
To Next Page
