6.10 Fuse Terminal Extension Stud
A fuse terminal extension stud is provided in the fuse box. The extension may be used to temporarily
connect a battery charger or jumper cables to raise the saw head from the towing position so the bat-
tery box lid can be removed.
CAUTION! The fuse stud extension is designed to provide enough
power to raise the saw head only. Do not attempt to start the engine or
operate any other electrical function until direct battery charging can be
performed. Do not attempt to move the saw head by attaching jumper
cables from a secondary power source to the up/down motor termi-
nals. Damage to the electrical system will result.
See Figure 6-4.
1. Remove the fuse box cover and remove the stud from its storage position inside the fuse box.
2. Thread the extension stud on the bottom-right fuse terminal.
3. Attach the positive cable from a battery charger or jumper cables to the extension stud.

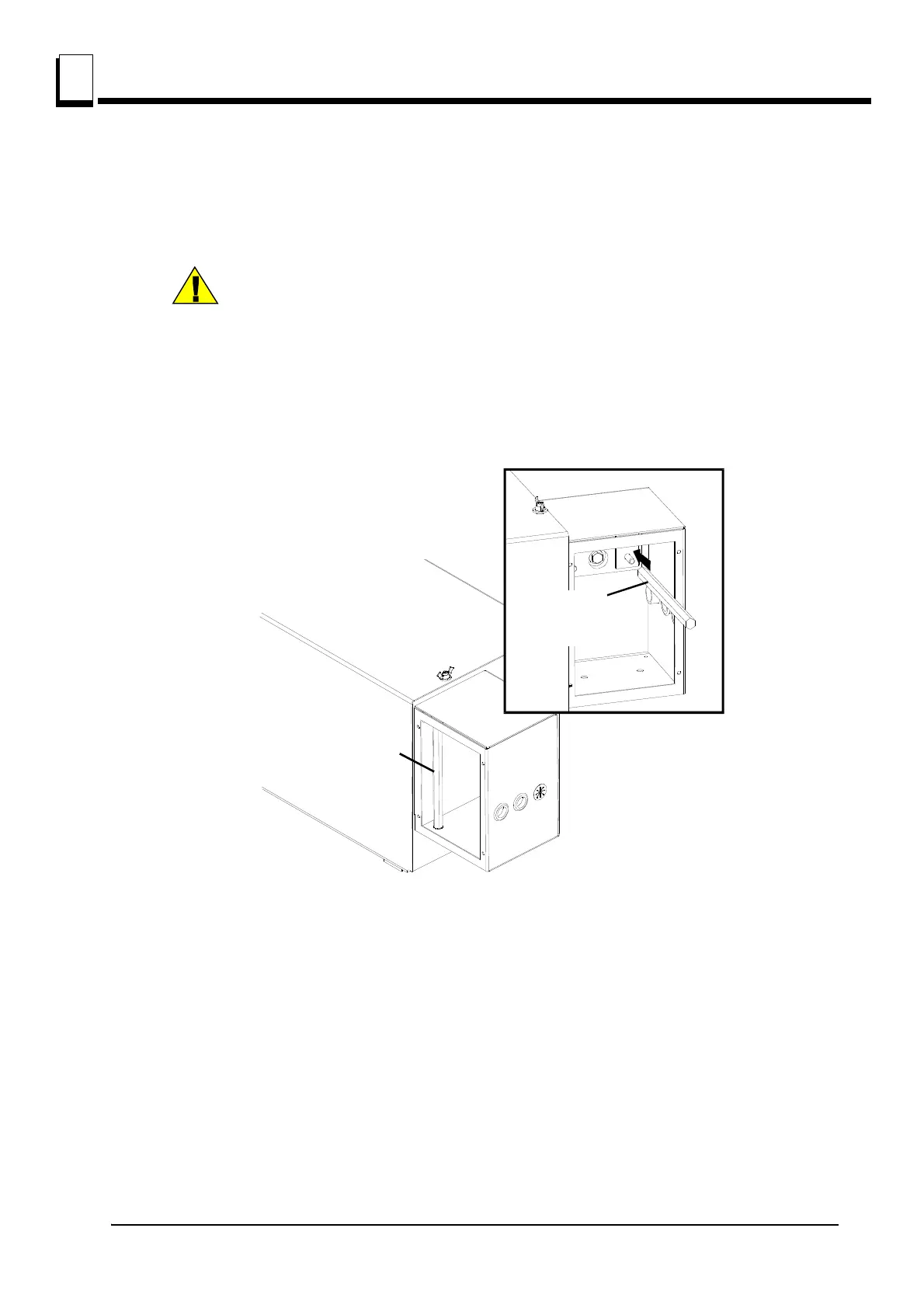

FIG. 6-4
Place stud on
bottom right
fuse terminal
3H0417
Extension stud
storage location
