Sawmill Alignment
Complete Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-43
7
Clamp Stop/Stop Bolt Adjustment
1. Once the side supports are aligned, pivot them down to their horizontal position.
2. Tie a string to the stop block at the first bed rail. Stretch the string toward the rear of the frame and tie
to the stop block at the last bed rail.
See Figure 7-44. Loosen the clamp stop bolts and adjust the clamp stop until it touches the string.

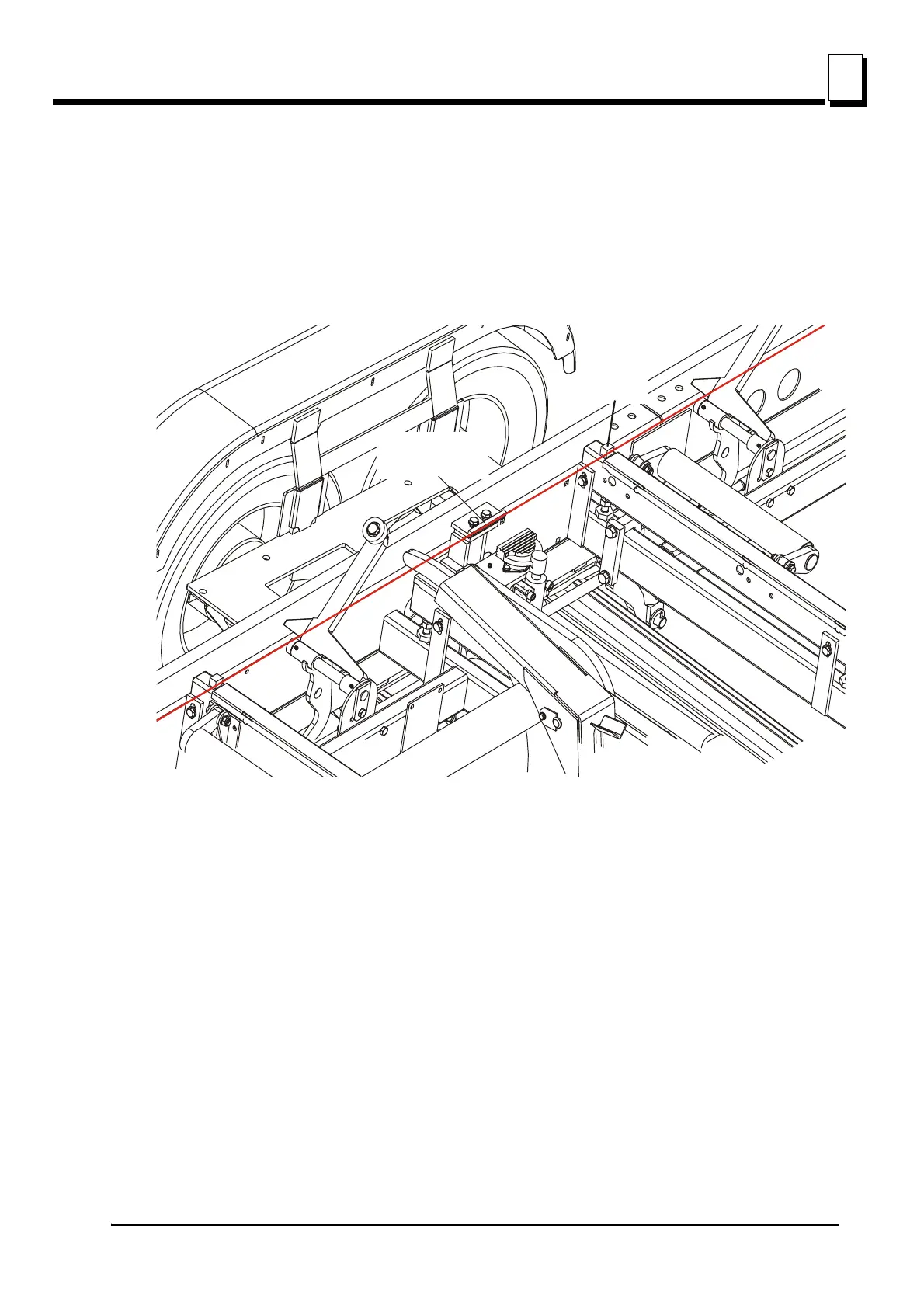

FIG. 7-44
Stop
Block
Adjust clamp
stop to string
Stop
Block
Adjust clamp
stop to string
