Sawmill Operation
Water Lube Operation
4
4-15 60HDdoc102619 Sawmill Operation
a trim cut. Return the carriage for the second cut. Now, instead of having to measure down 1 1/8"
(29 mm) on the inch scale, you can simply lower the blade so the indicator is aligned with the next
4/4 mark on the quarter scale. Turn the log 90 degrees and repeat.
4.10 Water Lube Operation
The Water Lube System keeps the blade clean. Water flows from a 5-gallon (18.9 liter) bottle through
a hose to the blade guide where the blade enters the log. A valve in the bottle cap controls the
amount of water flow.
See Figure 4-9.
A solenoid valve will automatically start the water flow when the power feed is activated in the
forward direction. The solenoid will stop the water flow when the feed switch is returned to the neutral
position.
Not all types of wood require the use of the Water Lube System. When it is needed, use just enough
water to keep the blade clean. This saves water, and lowers the risk of staining the boards with
water. Usual flow will be 1-2 gallons (3.8-7.6 liters) per hour.
Before removing the blade, engage the blade. Let the blade spin with water running on it for about
15 seconds. This will clean the blade of sap buildup. Wipe the blade dry with a rag before storing
or sharpening.
For further lubrication benefits, add one 12oz. bottle of Wood-Mizer Lube Additive to 5 gallons of
water. Wood-Mizer Lube Additive enables some previously impossible timbers to be cut by
significantly reducing resin buildup on the blade. It helps to reduce heat buildup, wavy cuts, and
blade noise. This biodegradable and environmentally friendly pre-mix includes a water softener

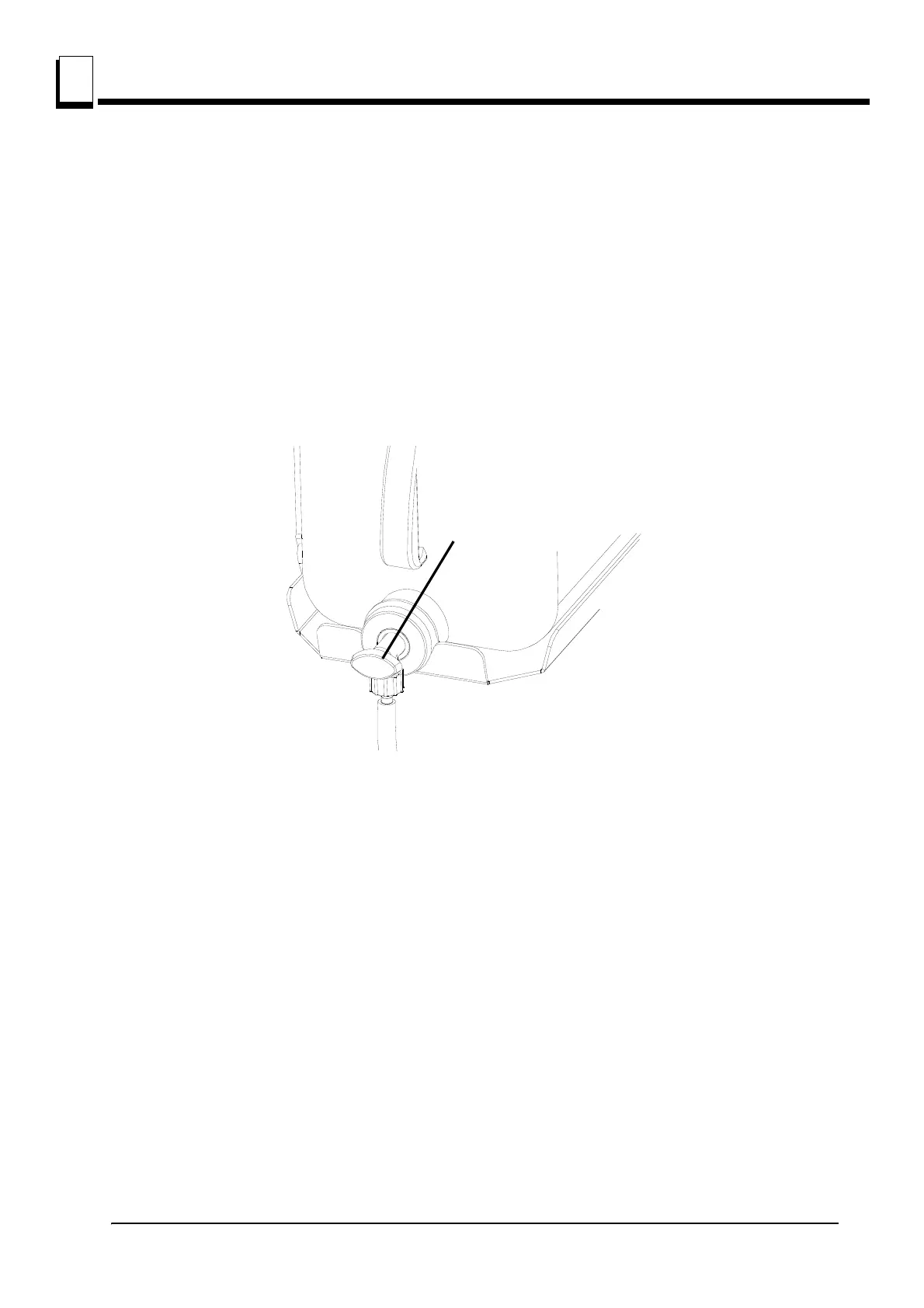

FIG. 4-9
Turn valve counterclockwise
to open; Clockwise to close
3H0129
Turn valve counterclockwise
to open; clockwise to close
