Wood-mizer LT70L DH User Manual

Specifications
Belt Sizes
Specifications 60doc102619 8-7
8

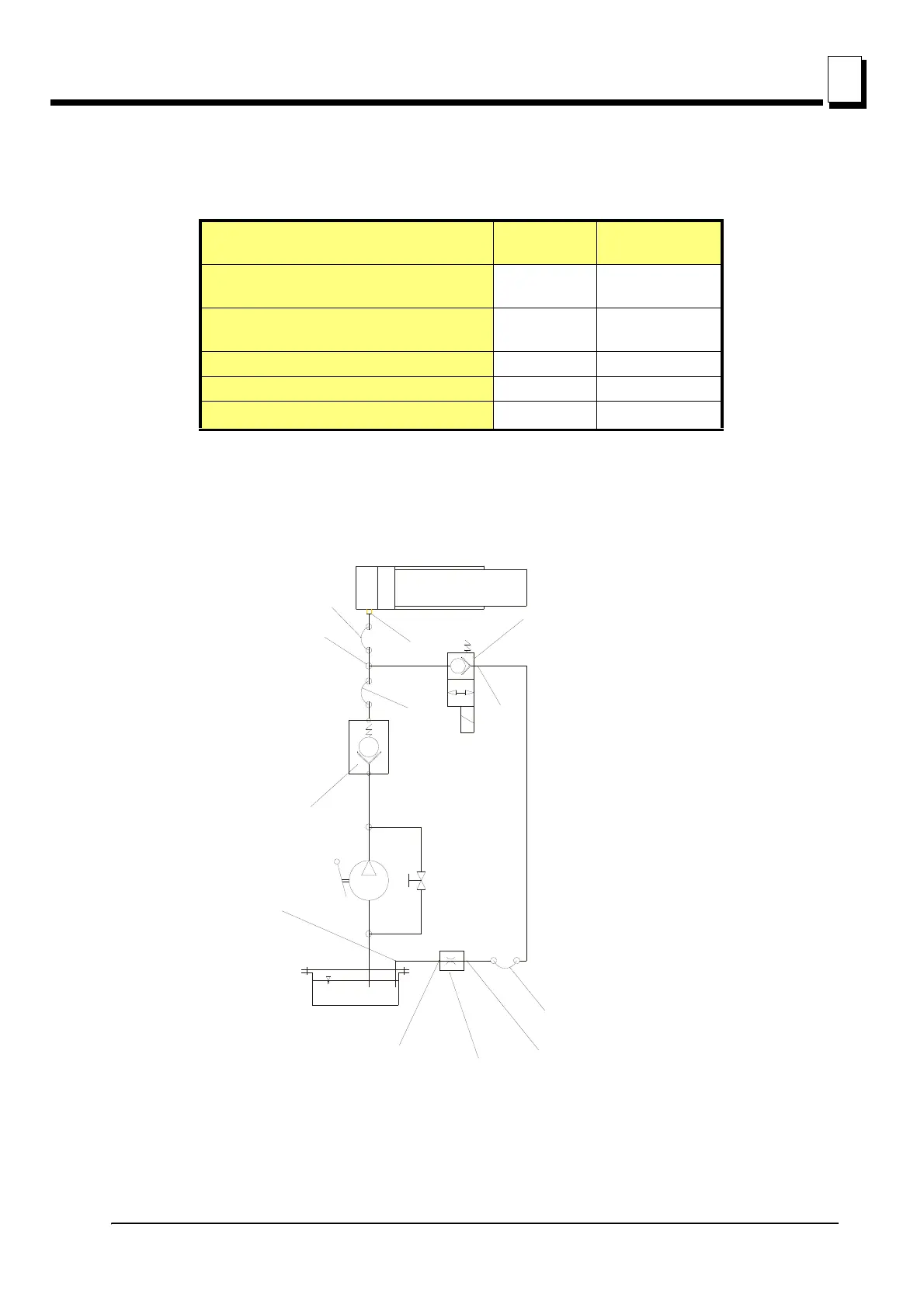

8.7 Belt Sizes
See Table 8-10. Belt sizes for the LT70 Series sawmills are shown.
8.8 Hydraulic Blade Tensioner Schematic
Description Belt Size Wood-Mizer
Part #
Motor Drive Belt ( E25 ) 3B/HB
2462La
089464
Engine Drive Belt ( D42 ) 3B/HB
2462La
089464
Alternator Belt ( DC mills only ) 6PK775 089465
Up/Down Drive Belt HA-630 090558
Blade Pulley Belts
B72.5
1
1
To insure proper blade tracking, use Goodyear, Dayco Super II, or Browning
belts.
017922
TABLE 8-10
FIG. 8-7 HYDRAULIC SCHEMATIC
600301
12 VDC
8.
1
.
7.
9.
6.
5.
3.
4.
2.
11.
10.
12.
