Sawmill Alignment
Complete Alignment Procedure
7
7-42 60HDdoc102619 Sawmill Alignment
Vertical Side Support Alignment
1. Place a flat board across the bed rails.
2. Swing a side support up so that it is vertical.
3. Pull back at the top of the support to eliminate slack as if a log were being clamped against it.
See Figure 7-43.
4. Check the angle of each support with a square on the board.
5. The side support should be 90° to the bed rails. Loosen the top adjustment bolt, adjust the side
support, and retighten the bolt.
6. Repeat for the remaining side supports.

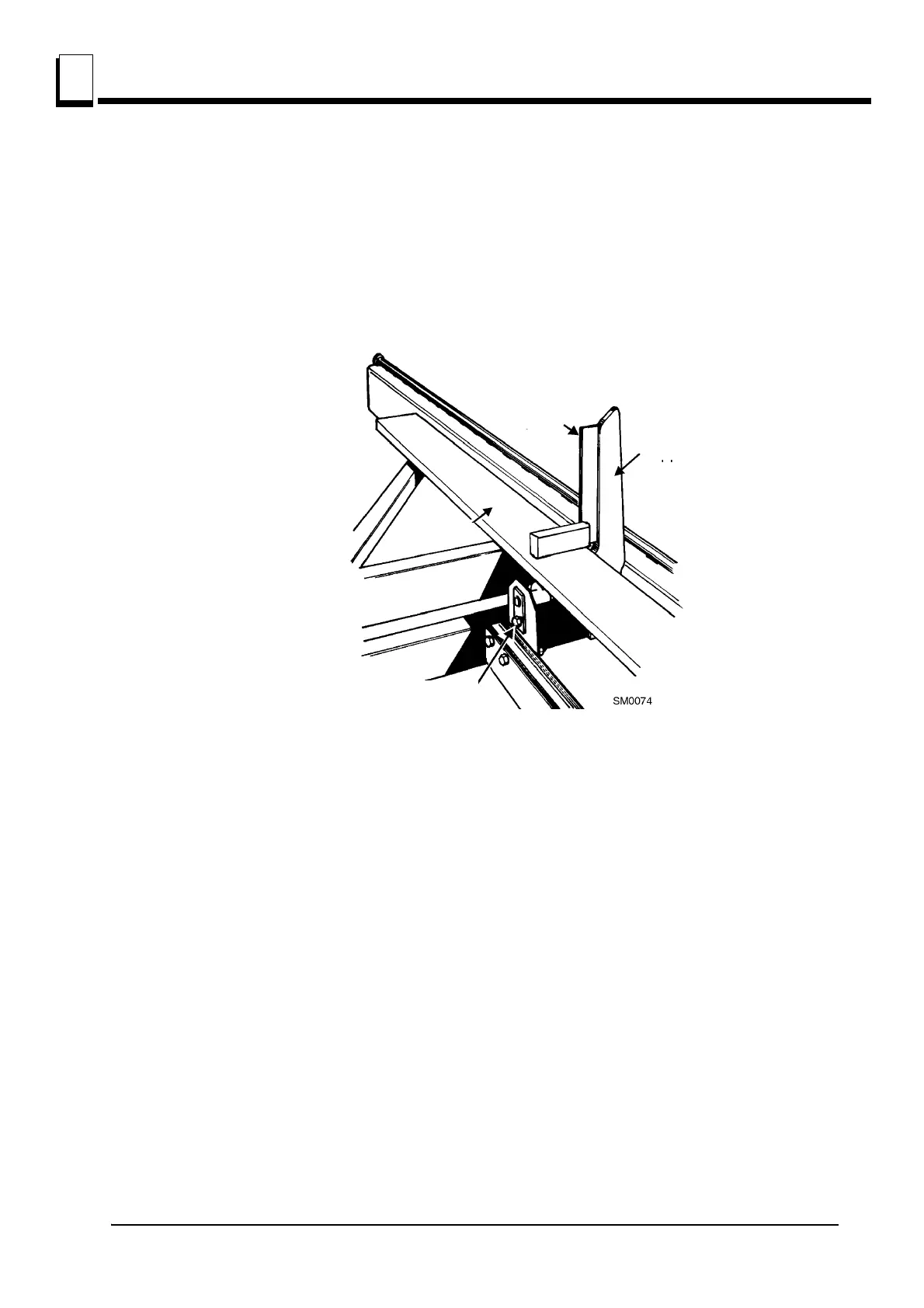

FIG. 7-43
Square
Side
Support
Board
Adjustment Bolt
