Sawmill Alignment
Complete Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-23
7
Bed Rail Adjustment
1. Open the adjustable blade guide arm to within 1/2" (15 mm) of full open.
2. Move the carriage back to the front pivot bed rail. Raise the cutting head until the bottom of the blade
is 17" (400 mm) above the outside of the pivot bed rail support by actual measurement with a tape or
ruler.

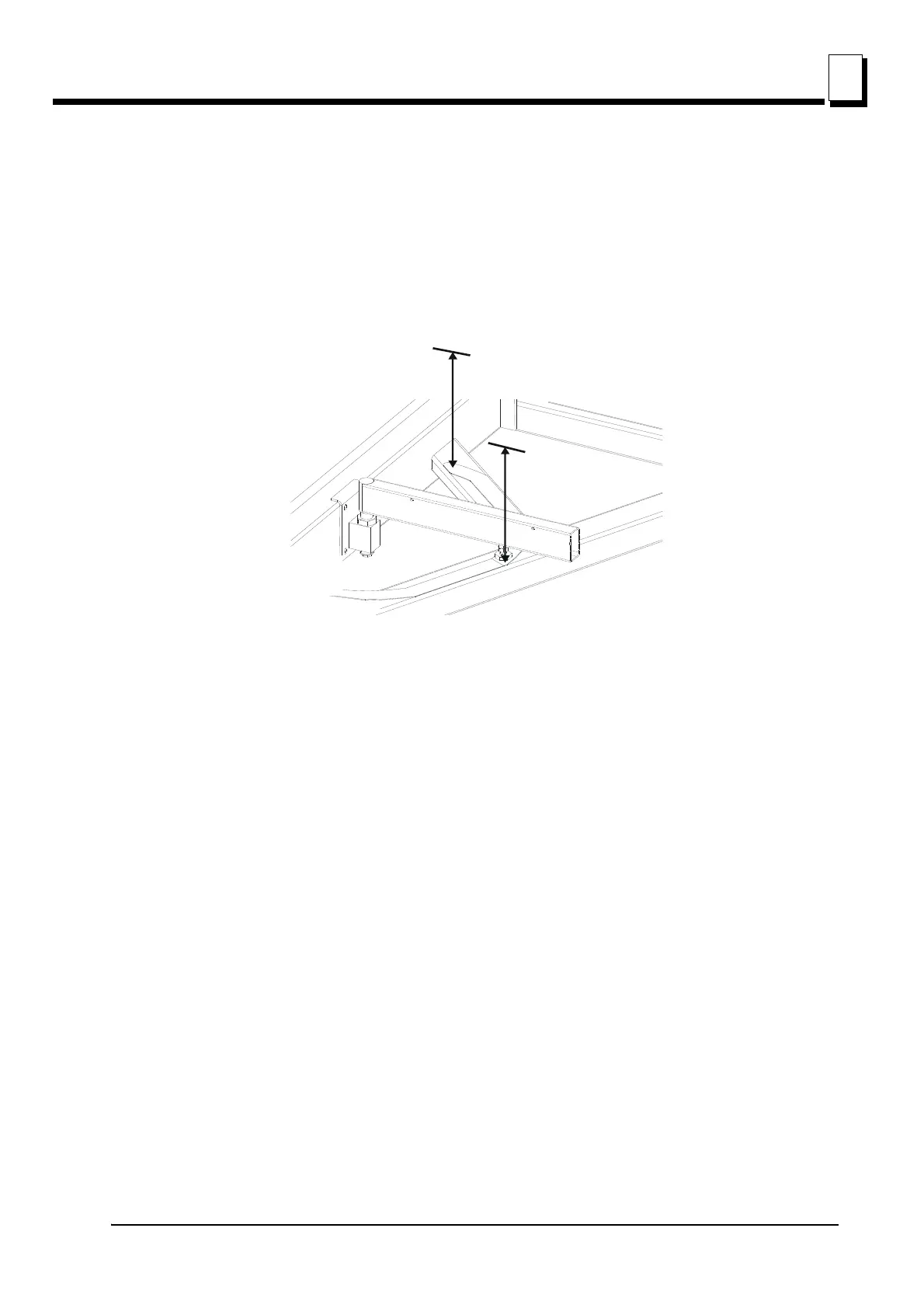

See Figure 7-22.
3. Move the carriage forward to check the distance to the blade at the inside of the pivot bed rail
support. All measurements should be equal.
FIG. 7-22
SM0137
17" (400 mm)
to blade
