Sawmill Alignment
Routine Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-9
7
and tighten the bottom screw. Tighten the jam nuts and recheck the tilt of the blade.
6. Move the blade guide alignment tool close to the inner blade guide roller assembly and repeat the
above steps. Adjust the vertical tilt of the inner blade guide if necessary.
Blade Guide Horizontal Tilt Adjustment
If the blade guides are tilted in the wrong direction horizontally, the back of the blade may contact the
flange as the roller is spinning down, causing it to push the blade away from the guide roller.
1. Remove the blade guide alignment tool from the blade and adjust the blade guide arm halfway in.
2. Remove the clip from the blade guide alignment tool. Place the tool against the face of the outer
blade guide roller.
See Figure 7-10.

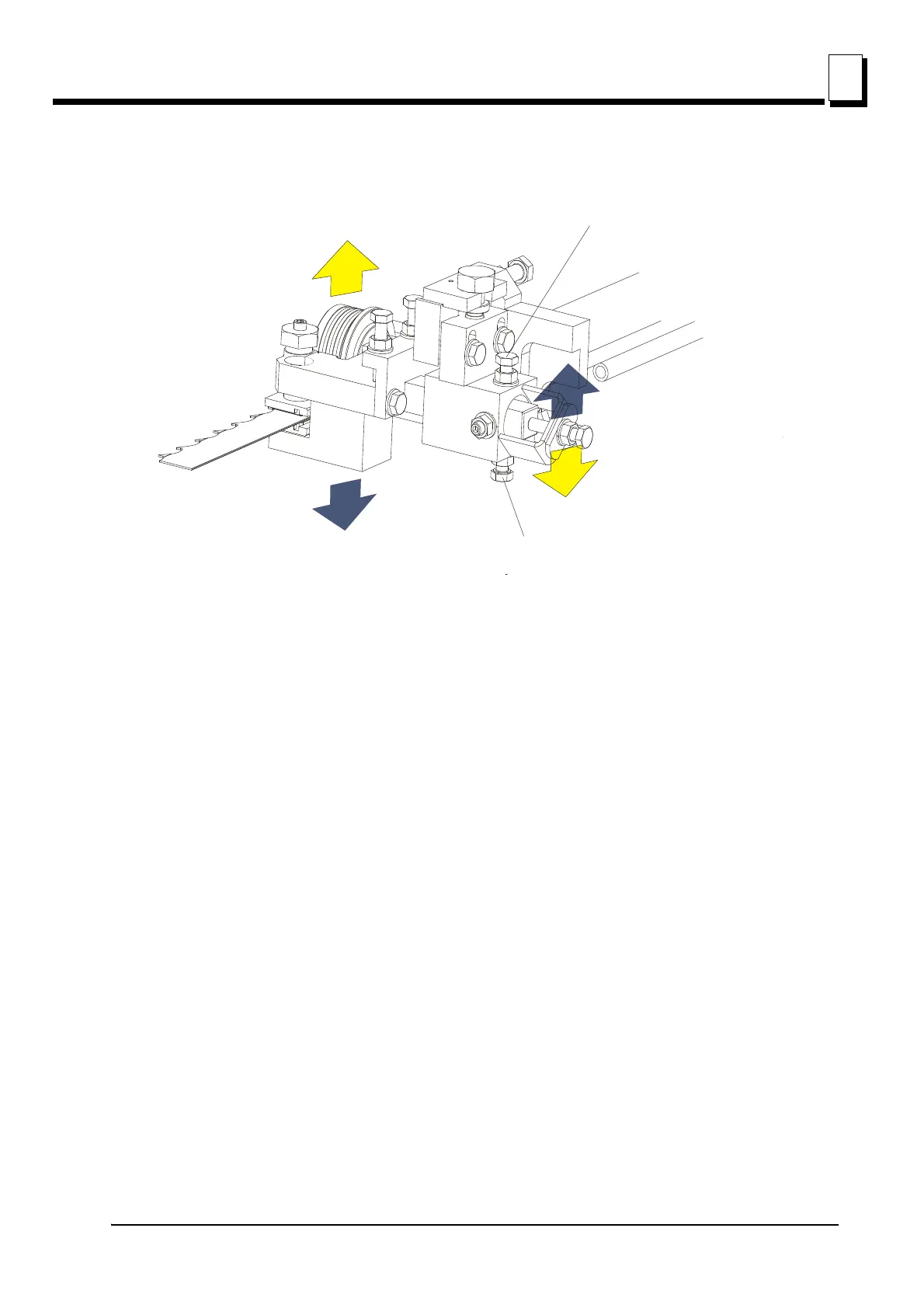

FIG. 7-9
Adjustment Screw
Bottom Vertical Tilt
Adjustment Screw
Adjust screws down
to tilt roller up; Adjust
screws up to tilt roller
down
600034b
Top Vertical Tilt
Adjustment Screw
Adjust screws down to
tilt roller up; adjust
screws up to tilt roller
down
Bottom Vertical Tilt
Adjustment Screw
To Next Page
