Wood-mizer LT70L DH User Manual

Sawmill Alignment
Routine Alignment Procedure
7
7-10 60HDdoc102619 Sawmill Alignment

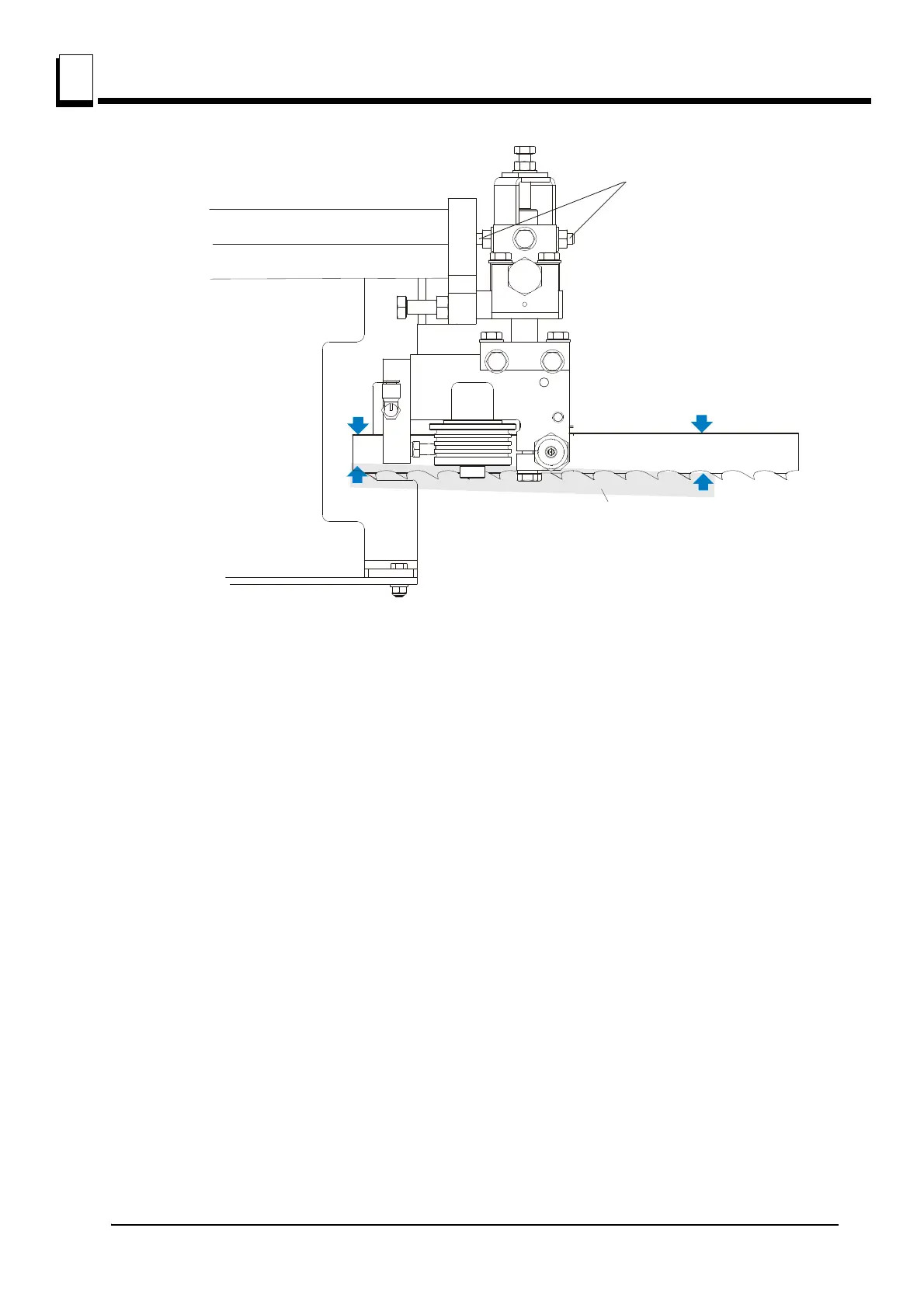

3. Measure between the back edge of the blade and the tool at the end closest to the inner blade guide
("B").
4. Measure between the back edge of the blade and the other end of the tool ("A").
The roller should be tilted slightly to the left (’A’ 1/8" [3 mm] less than ’B’ ±1/8" [3 mm]).
FIG. 7-10
Horizontal Tilt
Adjustment Screws
A
B
Blade Guide
Alignment Tool
600035b
Horizontal Tilt
Adjustment Screws
Blade Guide
Alignment Tool
