Sawmill Alignment
Routine Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-11
7
See Figure 7-11. Loosen the jam nuts on the horizontal tilt adjustment screws. To tilt the roller left,
loosen the right screw and tighten left screw. To tilt the roller right, loosen the left screw and tighten
the right screw. Tighten the jam nuts and recheck the tilt of the blade.
5. Repeat the above steps for the inner blade guide roller assembly.
NOTE: Once the blade guides have been adjusted, any cutting
variances are most likely caused by the blade. See Blade Handbook,
Form #600.

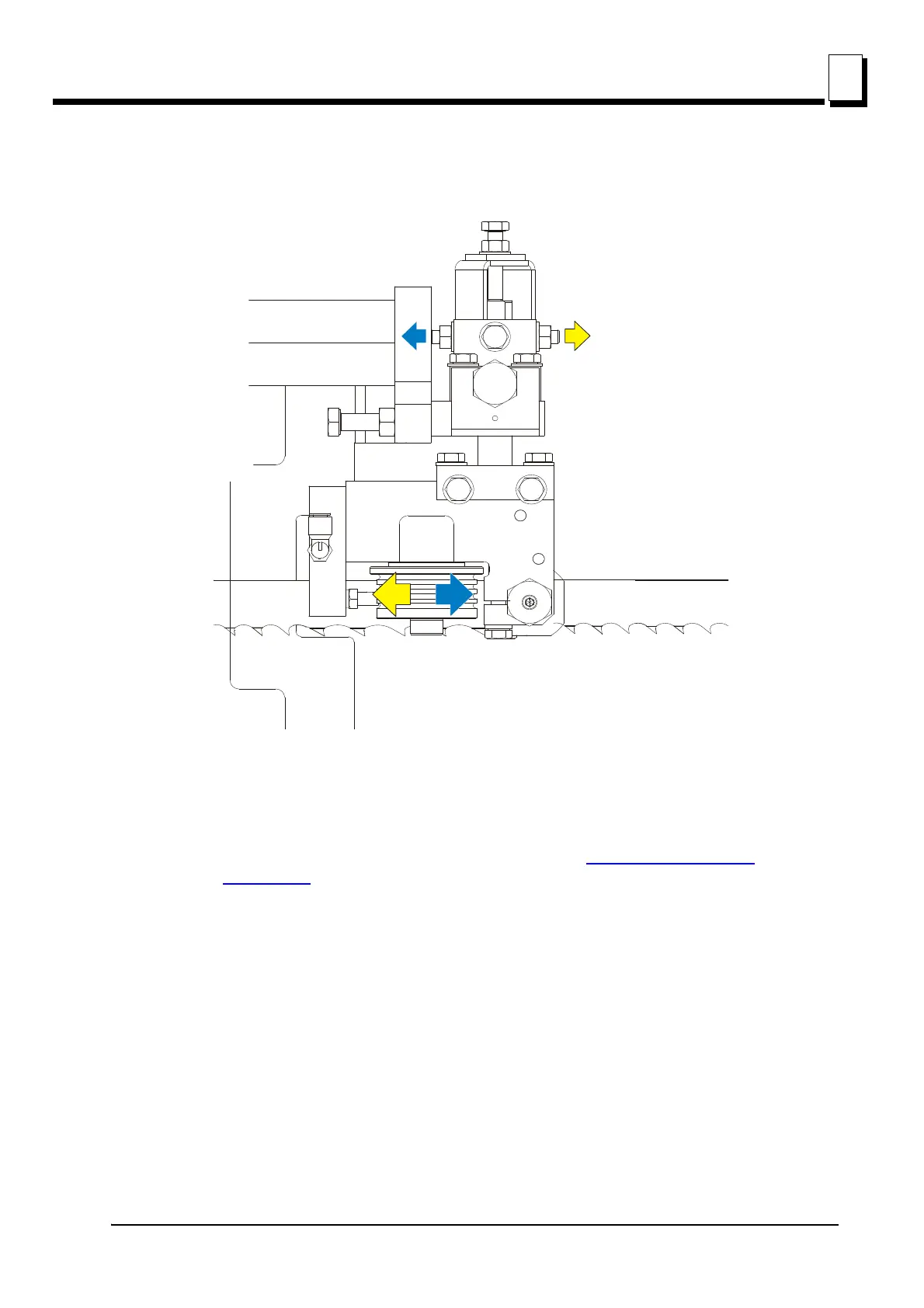

FIG. 7-11
Adjust screws right
to tilt roller left; adjust
screws left to tilt roller
right
