Sawmill Operation
Power Feed Operation
4
4-9 60HDdoc102619 Sawmill Operation
4.5 Power Feed Operation

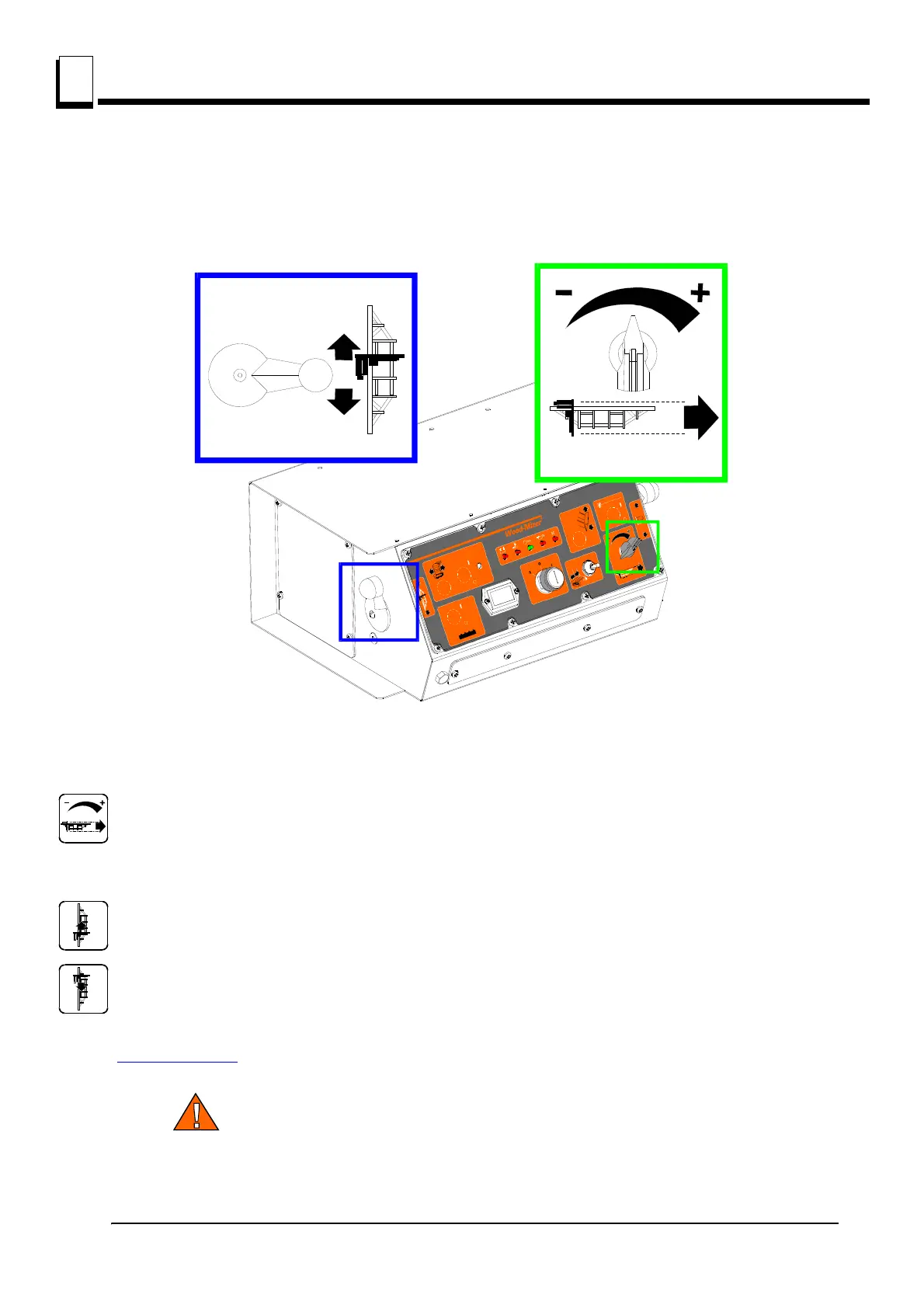

See Figure 4-7. The power feed system moves the carriage forward and backward by using two swi-
tches on the control panel.
Carriage Feed Rate
The carriage feed rate switch controls the speed at which the carriage travels forward. Turn the
switch clockwise to increase speed. Turn it counterclockwise to reduce speed.
Carriage Forward and Reverse
The carriage forward/reverse switch controls the direction in which the carriage travels. Turn the
forward/reverse switch upward to move the carriage forward. Turn the switch down to move the
carriage backward.
The middle position (as shown) is the neutral position. The power feed switch is designed to return to
the neutral or "off" position when released from operating in the reverse position. If the switch
remains engaged, manually move the switch to the neutral or "off" position. Repair the drum switch
(See Section 5.5
).
WARNING! Be sure the power feed switch is in the neutral position
before turning the key switch to the on (#1) or accessory (#2) position.
This prevents accidental carriage movement which may cause serious
injury or death.
FIG. 4-7
3H0280
Carriage
Forward
Forward Feed Rate
Carriage
Reverse
Saw Head
Forward
Saw Head
Reverse
Forward Feed Rate
