Troubleshooting Guide
Power Feed Circuit Troubleshooting
6
6-7 60HDdoc102619 Troubleshooting Guide
6.4 Power Feed Circuit Troubleshooting
LED lights are provided on the control module to help troubleshoot any feed problems you may
encounter.

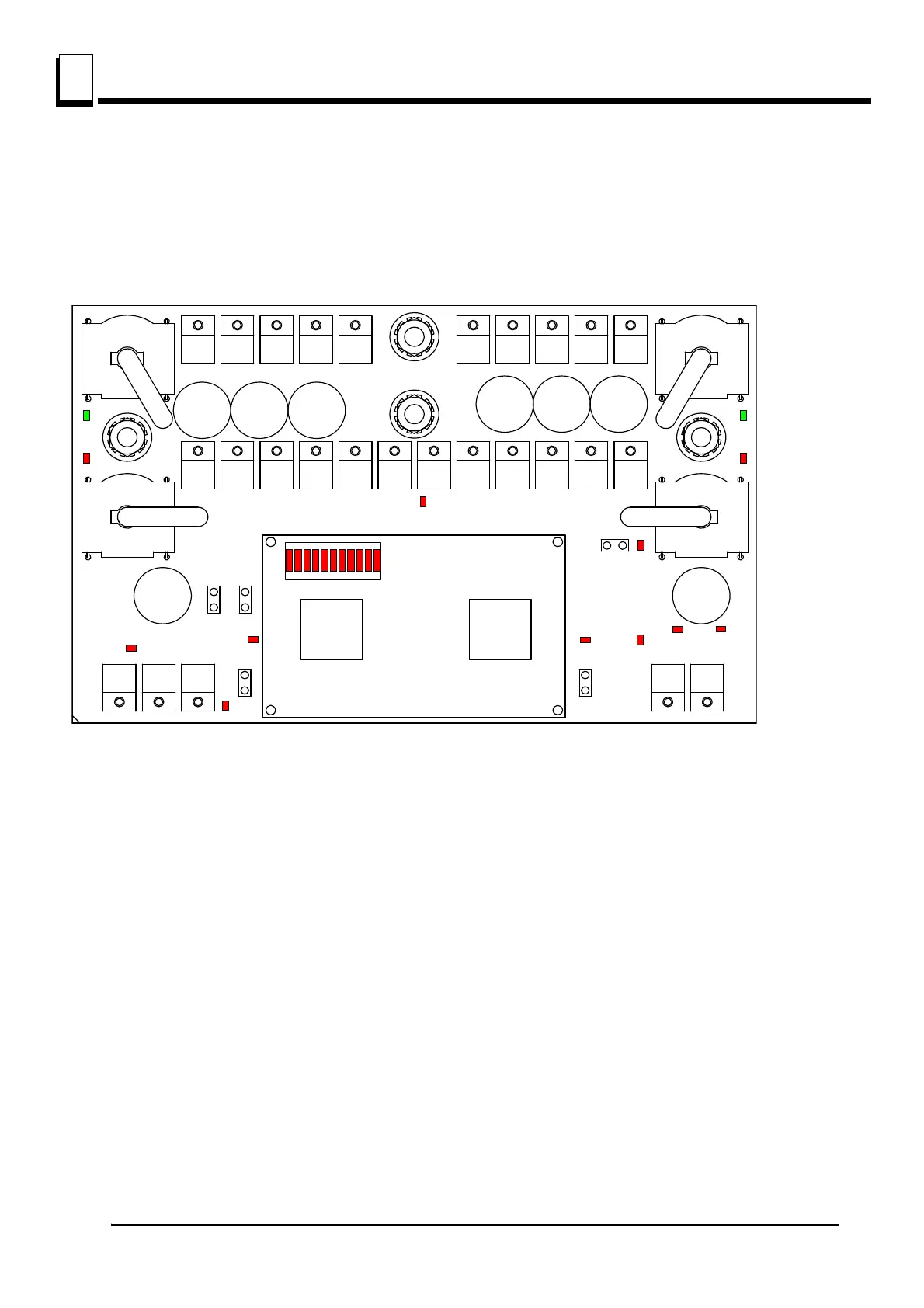

See Figure 6-1. The lights can be viewed by removing the rear control box panel.
If you have trouble determining the problem indicated by the lights, please note which lights are on
and call customer service for assistance.
BL, TL, BR, TR - The two red and two green lights indicate different states of sawmill operation. Sev-
eral different states of the lights in three positions of the power feed drum switch with the feed rate
dial switch all the way up are shown below.
FIG. 6-1
BL
TL
BR
TR
VBAT
MOTOR 1
MOTOR 2
GND
