Sawmill Alignment
Horizontal Adjustment of Side Supports
Sawmill Alignment 60HDdoc102619 7-13
7
7.2 Horizontal Adjustment of Side Supports
Logs and boards are clamped against the side supports when sawing. The sides supports must be
square to the bed to ensure square lumber.
1. Swing the side support down.
2. Measure between the face of the support and the main bed tube. Make measurements at both ends
of the side support to make sure that it is parallel to the rail.
See Figure 7-13.
3. Use the two lower bolts to adjust the side support so B=A.
4. Repeat for the remaining side supports.

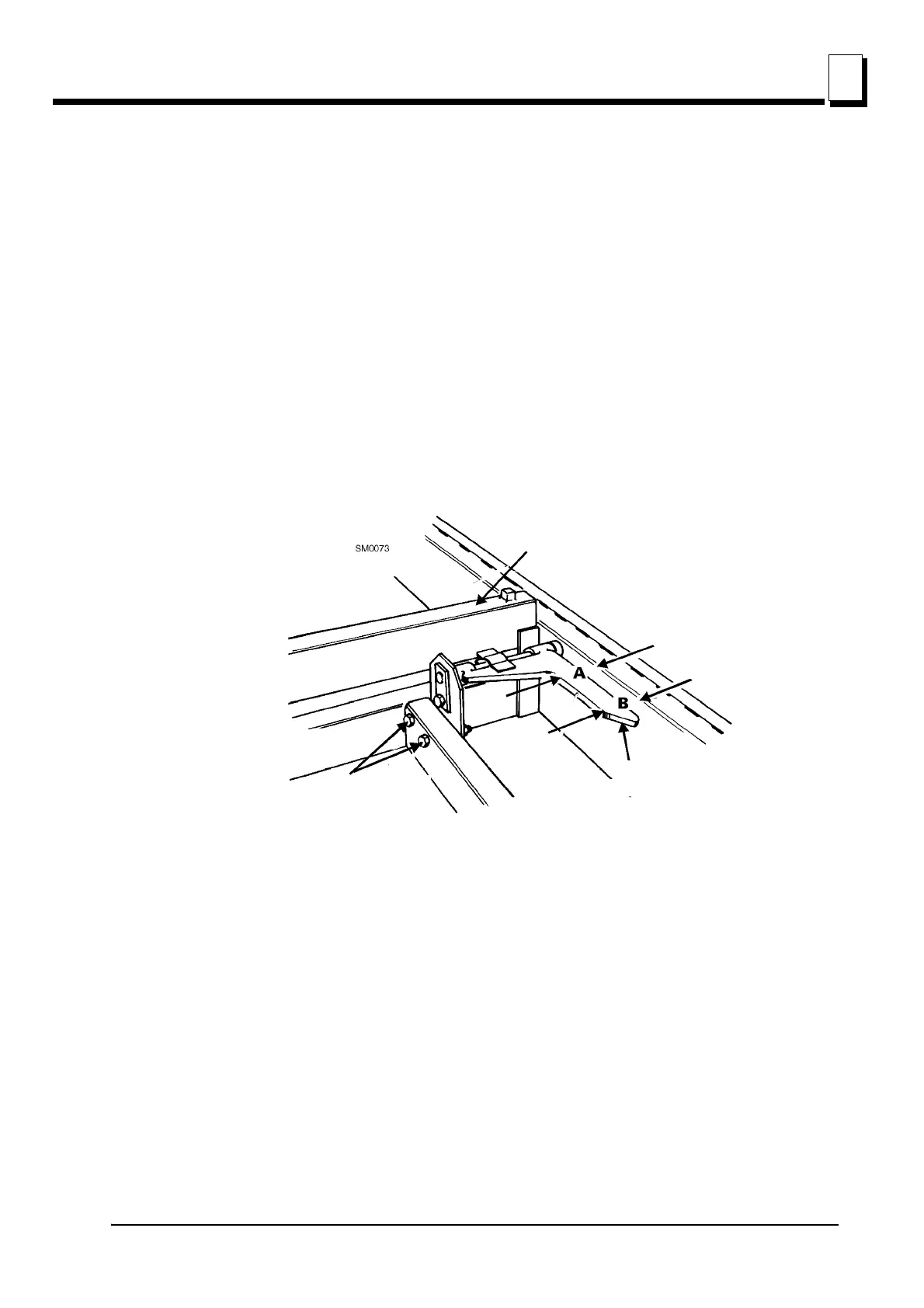

FIG. 7-13
Bed Rail
Measure
distance
Side Support
Adjustment Bolts
