Sawmill Operation
Up/Down Operation
4
4-7 60HDdoc102619 Sawmill Operation
To Level A Tapered Log
Raise the appropriate lever to raise the front, middle or rear toe board until the heart of the log
measures the same distance from the bed rails at each end of the log.
4.3 Up/Down Operation
This section describes operation of the up/down system with the standard controls. See the
operation section of the Accuset or PLC-Setwork manual for operation of the up/down system using
these options.
1. Install a blade, if needed, and check for correct blade tension (See Section 3.6
).
2. Set the cutting head to the desired height. (The blade height scale shows the height of the blade
above the bed rails.)
See Figure 4-5. The up/down switch is located on the far right side of the control panel. Push the
switch up to raise the cutting head; push the switch down to lower the cutting head. Hold the switch
in position until the cutting head reaches the desired height, then release.
The up/down switch is designed to return to the neutral or "off" position when released. If the switch
remains engaged, manually move the switch to the neutral or "off" position. Repair the up/down drum
switch.
CAUTION! Always make sure the up/down switch moves to the neutral
or “off” position when released to ensure that the saw head stops
moving. Failure to do so may result in machine damage.
CAUTION! DO NOT try to force the carriage above the 35" (88 cm)
mark or below the 1" (2.54 cm) mark. Damage to the up/down system
may result.

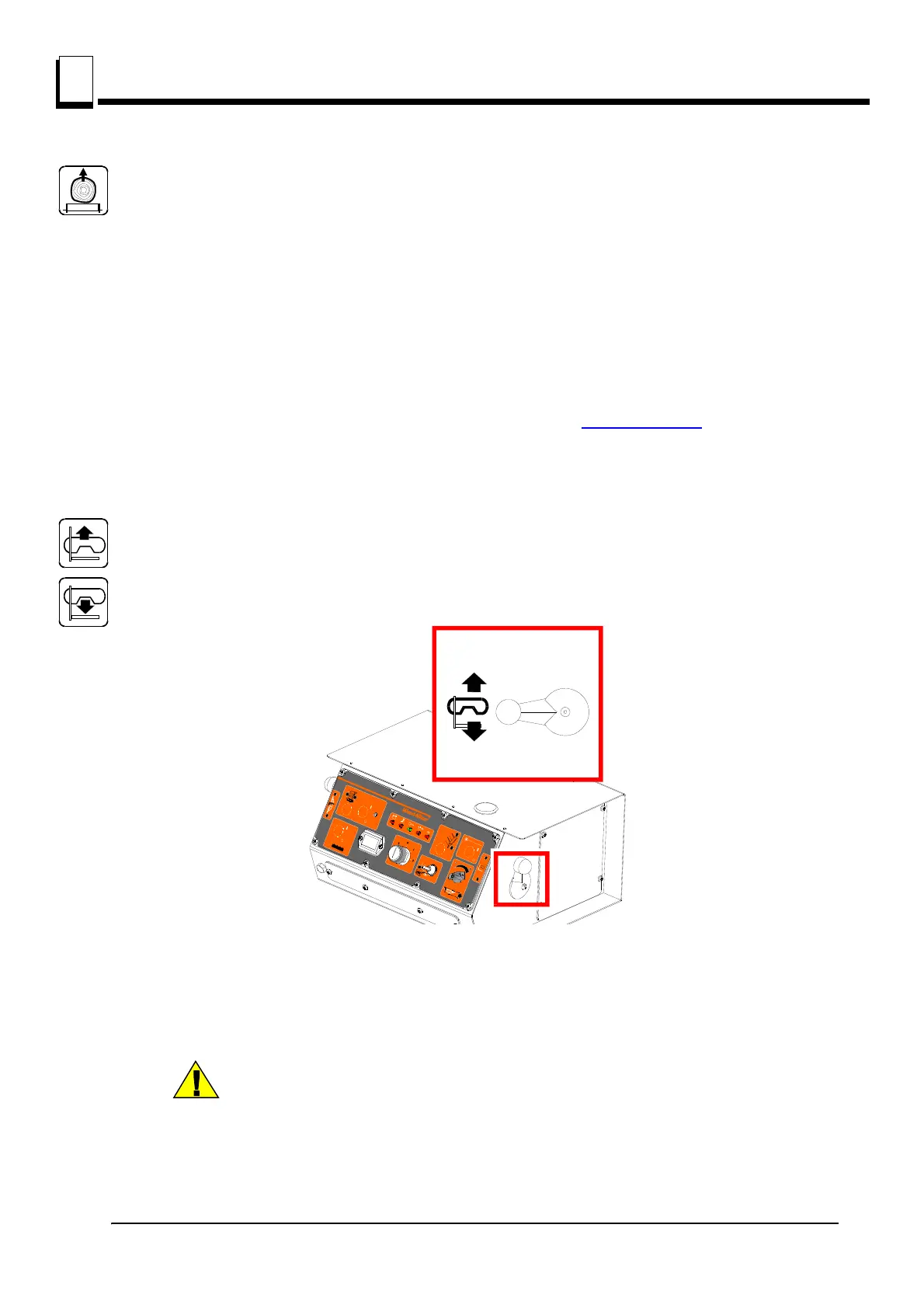

FIG. 4-5
Cutting Head
Up
Cutting Head
Down
Cutting Head
Up
Cutting Head
Down
To Next Page
