Xerox 4590/4110 Copier/Printer User Guide
11-72
11. Problem Solving

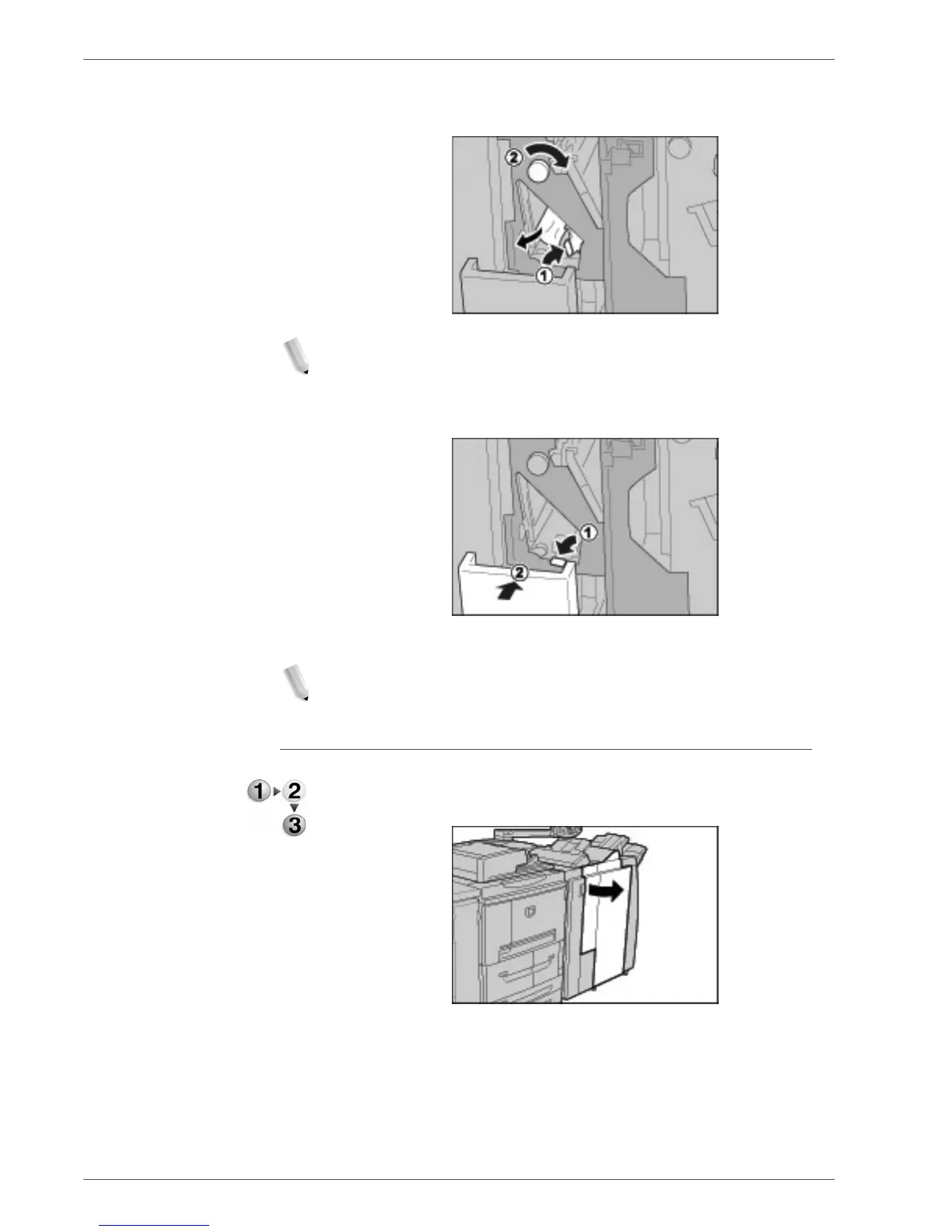

3. If you cannot remove the paper in Step 2, turn knob 2c to the
right, then remove the jammed paper.
NOTE: If paper is torn, check for any torn pieces of paper inside
the machine.
4. Swing back the opened lever (2f or 2e), and push back the tri-
fold output tray 2d.
5. Close the Finisher right cover.
NOTE: A message will be displayed and the machine will not
operate if the Finisher right cover is even slightly open.
Paper jams at tri-fold output tray 2d and lever 2g
1. Make sure that the machine has stopped and then open the
right cover on the light finisher.
To Next Page
