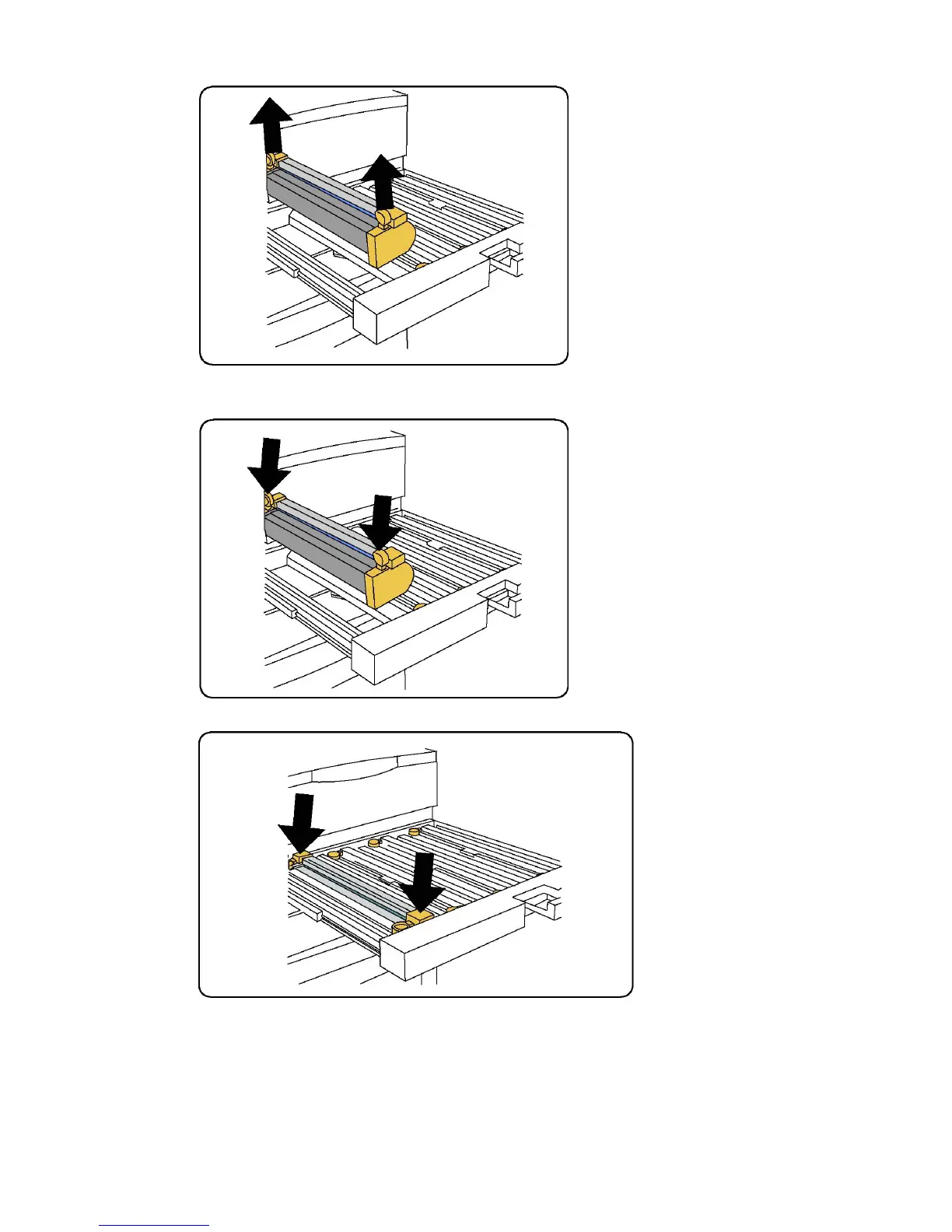

9. Place the new drum cartridge in the machine following the guides with the side
marked front facing the front.
10. Press both ends of the drum cartridge to place it in a horizontal position.
11. Immediately close the Drum Drawer to protect the other drums from light.
12. Return the Release Handle to its original position.
13. Return the R1-R4 handle to the original position and close the front door.
10-13Xerox
®
Color 550/560/570 Printer
User Guide
Maintenance
