14. Insert the used drum cartridge into an empty container for recycling.
Replacing the Charge Corotron
1. Make sure the machine has stopped running, and open the Front Door.
2. Pull down the R1-R4 handle.
3. Raise the Release Handle.
4. Open the packaging for the new Charge Corotron and gently place the new Charge
Corotron on a flat surface near the machine.
Caution
Do not expose drum cartridges to direct sunlight or strong light from indoor
fluorescent lighting for more than two minutes. Image quality may deteriorate
when the drum cartridges are exposed to light.

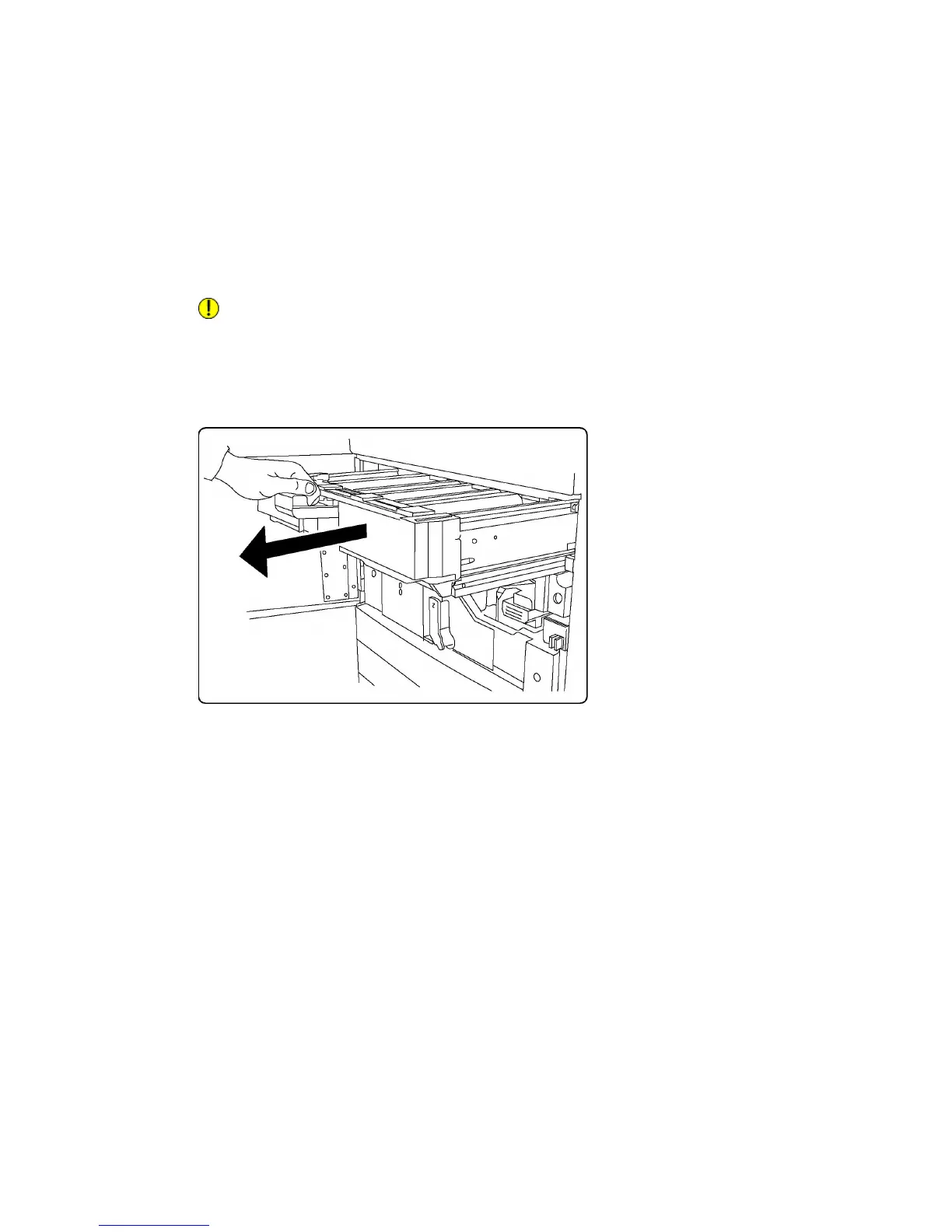

5. Open the Drum Drawer.
6. Grasp both of the amber-gold colored casings on the old Charge Corotron and push
towards the back of the machine. You will hear a clicking noise indicating that it is
being released.
7. Remove the old Charge Corotron by holding the amber-gold colored casings provided
at the both ends of the Charge Corotron and gently pulling straight up.
8. Gently lower the new Charge Corotron into the machine straight down, and not at
an angle.
9. Grasp the amber-gold colored casings on the new Charge Corotron and pull towards
the front of the machine until you hear a clicking noise to indicate the Charge
Corotron is in place.
10. Push in the Drum Drawer completely. Return the Release Handle to its original
position.
11. Return the R1-R4 handle to the original position and close the front door.
12. Insert the used Charge Corotron into an empty container for recycling.
Xerox
®
Color 550/560/570 Printer10-14
User Guide
Maintenance
