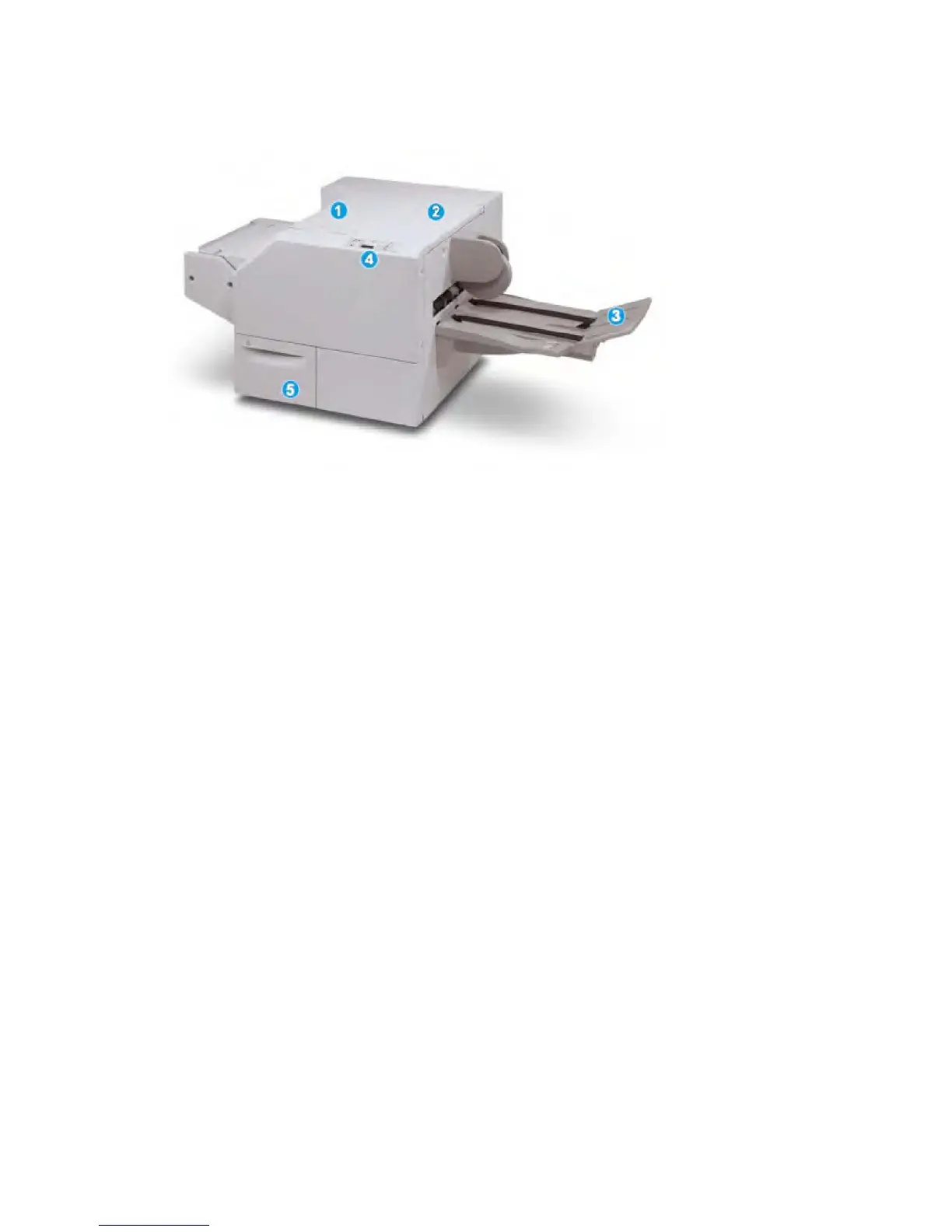

SquareFold Trimmer
1.
Top Left Cover. Open this cover to remove paper jams. The square fold mechanism is
found in this area.
2.
Top Right Cover. Open this cover to remove paper jams. The trimming mechanism is
found in this area.
3.
Booklet Output Tray. This tray receives square-fold booklet output from the finisher.
4.
Control Panel. The Control Panel consists of a mimic display, buttons, and various
indicator lights.
5.
Trimmer Waste Container. Collects scrap/waste from the trimmer. Pull open to remove
and dispose of trimmer waste scarps.
Printer Information
Your printer provides status information from the touch screen on the control panel and
in printed reports. Usage and billing information are also available from the touch screen.
For details, see Billing and Usage Information.
