The SquareFold Trimmer Module:
• Receives the booklet from the booklet maker area of the finisher
• Flattens the booklet spine, thereby reducing the booklet's thickness and giving it the
appearance of a perfect-bound book
• Trims/cuts away the face (edge) of the booklet, resulting in a neat finished edge
The booklet is assembled and stapled in the booklet area of the finisher; therefore, the
booklet enters the SquareFold Trimmer Module already assembled. Any adjustments to
the image of the original and its placement on the booklet page must be done either
from the machine's UI or from your print driver.
Note
Always refer to the Hints and Tips section of this manual before using the SquareFold
Trimmer Module. The Hints and Tips section provides valuable information about setting
up your jobs, which in turn ensures the best possible output for your print/copy jobs.
You may want to run one or more test prints/copies before running larger jobs.

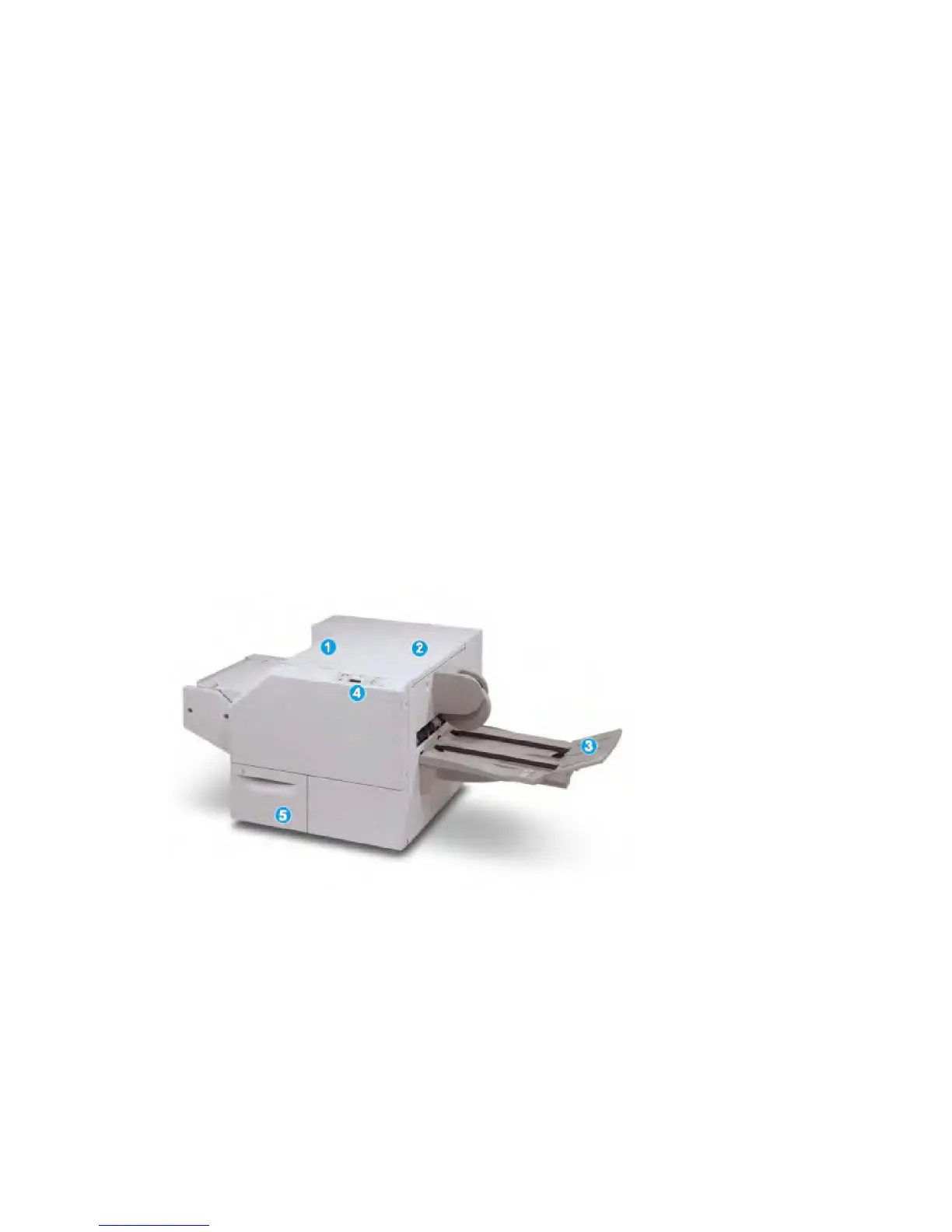

Identifying the components
Main components
The main components consist of:
1. Top Left Cover: Open this cover to remove paper jams. The square fold mechanism
is found in this area.
2. Top Right Cover: Open this cover to remove paper jams. The trimming mechanism
is found in this area.
3. Booklet Output Tray: This tray receives square-fold booklet output from the finisher.
