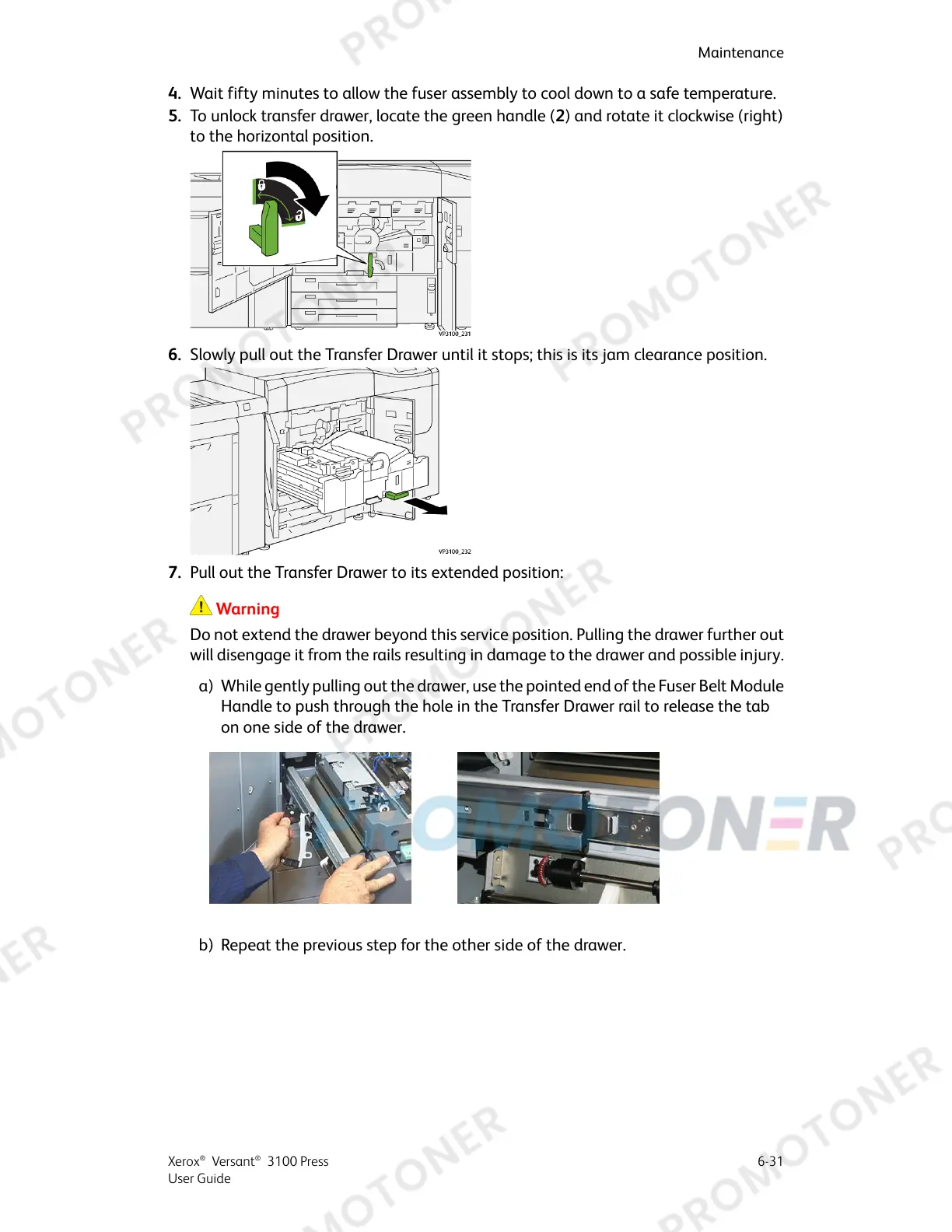

4. Wait fifty minutes to allow the fuser assembly to cool down to a safe temperature.
5. To unlock transfer drawer, locate the green handle (2) and rotate it clockwise (right)
to the horizontal position.
6. Slowly pull out the Transfer Drawer until it stops; this is its jam clearance position.
7. Pull out the Transfer Drawer to its extended position:
Warning
Do not extend the drawer beyond this service position. Pulling the drawer further out
will disengage it from the rails resulting in damage to the drawer and possible injury.
a) While gently pulling out the drawer, use the pointed end of the Fuser Belt Module
Handle to push through the hole in the Transfer Drawer rail to release the tab
on one side of the drawer.
b) Repeat the previous step for the other side of the drawer.
6-31Xerox
®
Versant
®
3100 Press
User Guide
Maintenance
