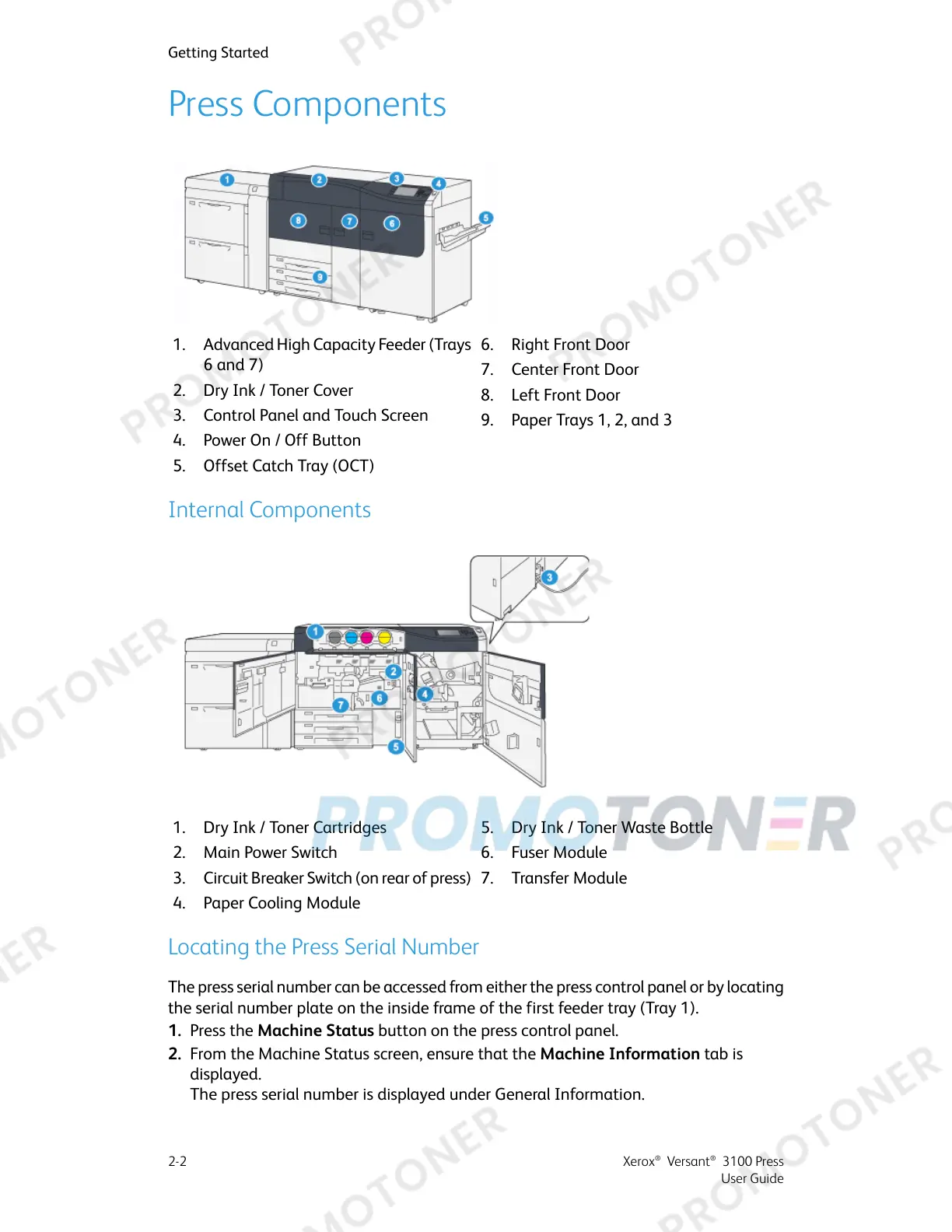

Press Components
6.1. Right Front DoorAdvanced High Capacity Feeder (Trays
6 and 7)
7. Center Front Door
2. Dry Ink / Toner Cover
8. Left Front Door
3. Control Panel and Touch Screen
9. Paper Trays 1, 2, and 3
4. Power On / Off Button
5. Offset Catch Tray (OCT)
Internal Components
5.1. Dry Ink / Toner Waste BottleDry Ink / Toner Cartridges
2. 6.Main Power Switch Fuser Module
7.3. Transfer ModuleCircuit Breaker Switch (on rear of press)
4. Paper Cooling Module
Locating the Press Serial Number
The press serial number can be accessed from either the press control panel or by locating
the serial number plate on the inside frame of the first feeder tray (Tray 1).
1. Press the Machine Status button on the press control panel.
2. From the Machine Status screen, ensure that the Machine Information tab is
displayed.
The press serial number is displayed under General Information.
