REP 4.3
Repairs and Adjustments
3. Ensure that the clutches are installed in the correct position (Figure 4).

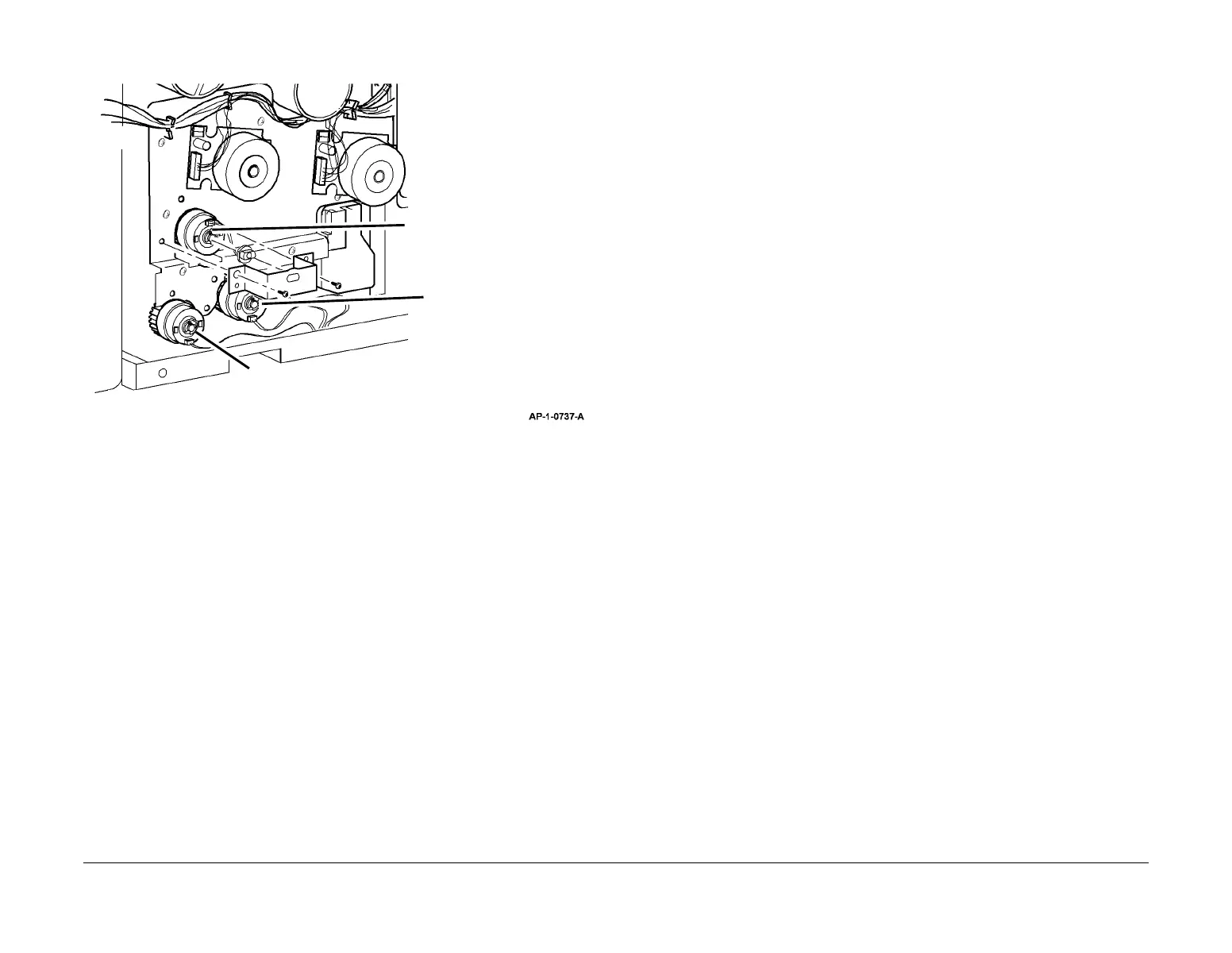

Figure 4 Clutch placement
Replacement
1. Reinstallation is the reverse of the Removal procedure.
Tray 1 feed clutch
Registration clutch
Bypass feed clutch
