REP 5.1
Repairs and Adjustments
WARNING
Do not remove the DADF while the DADF is lowered. In the lowered position the coun-
terbalance springs are compressed and can cause injury when released.

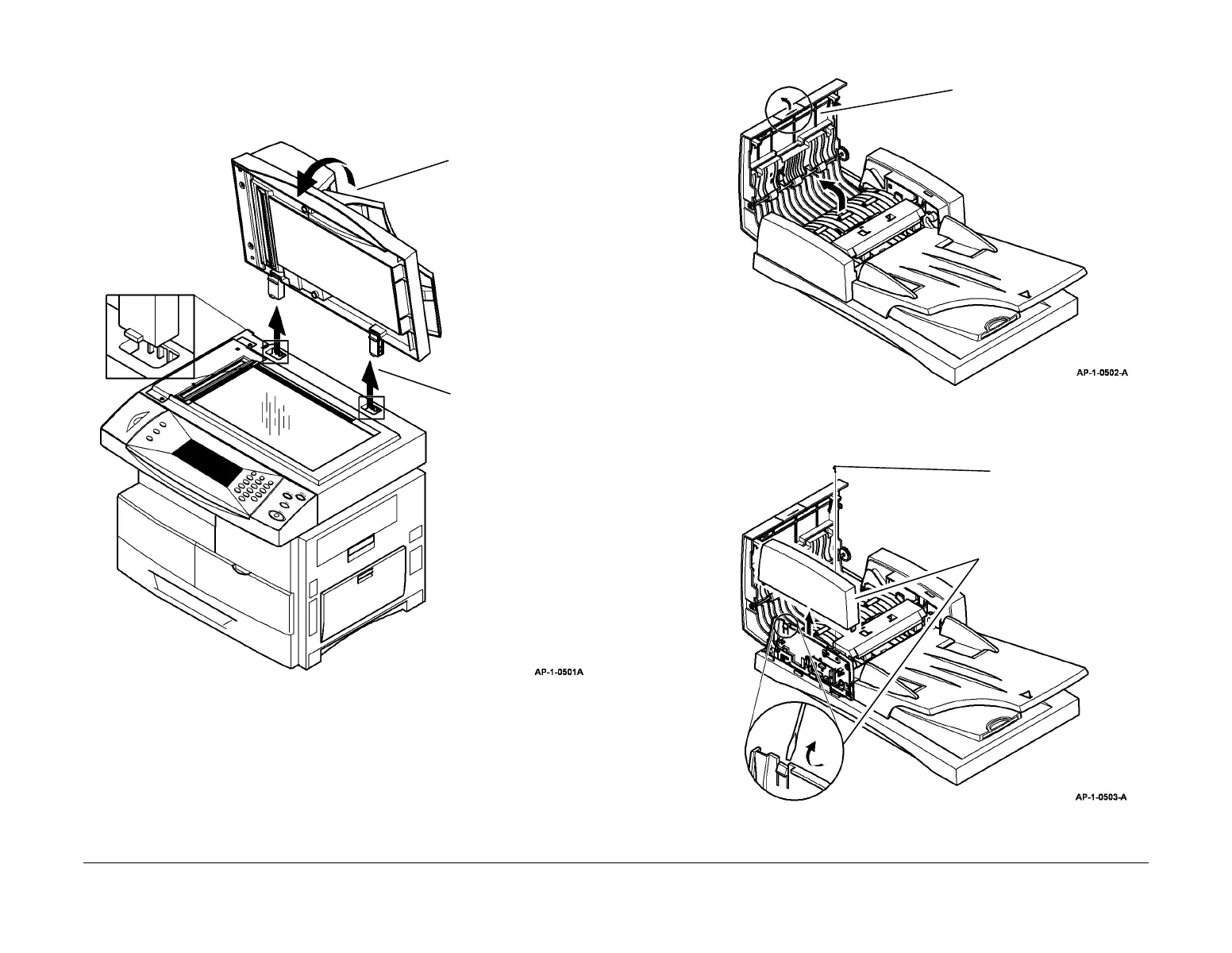

3. Remove the DADF, Figure 2. Place the DADF on a solid flat surface.
Figure 2 DADF removal
4. Open the top cover assembly, Figure 3.
Figure 3 Top cover assembly
5. Remove the front cover, Figure 4.
Figure 4 Front cover removal
1
Pull up the DADF.
2
Tilt the DADF forward
then remove.
1
Open the top cover assembly.
1
Remove 1 screw.
2
Unclip the front cover, then
remove the front cover.
