REP 5.1
Repairs and Adjustments
16. Remove the lower feed assembly, Figure 15.

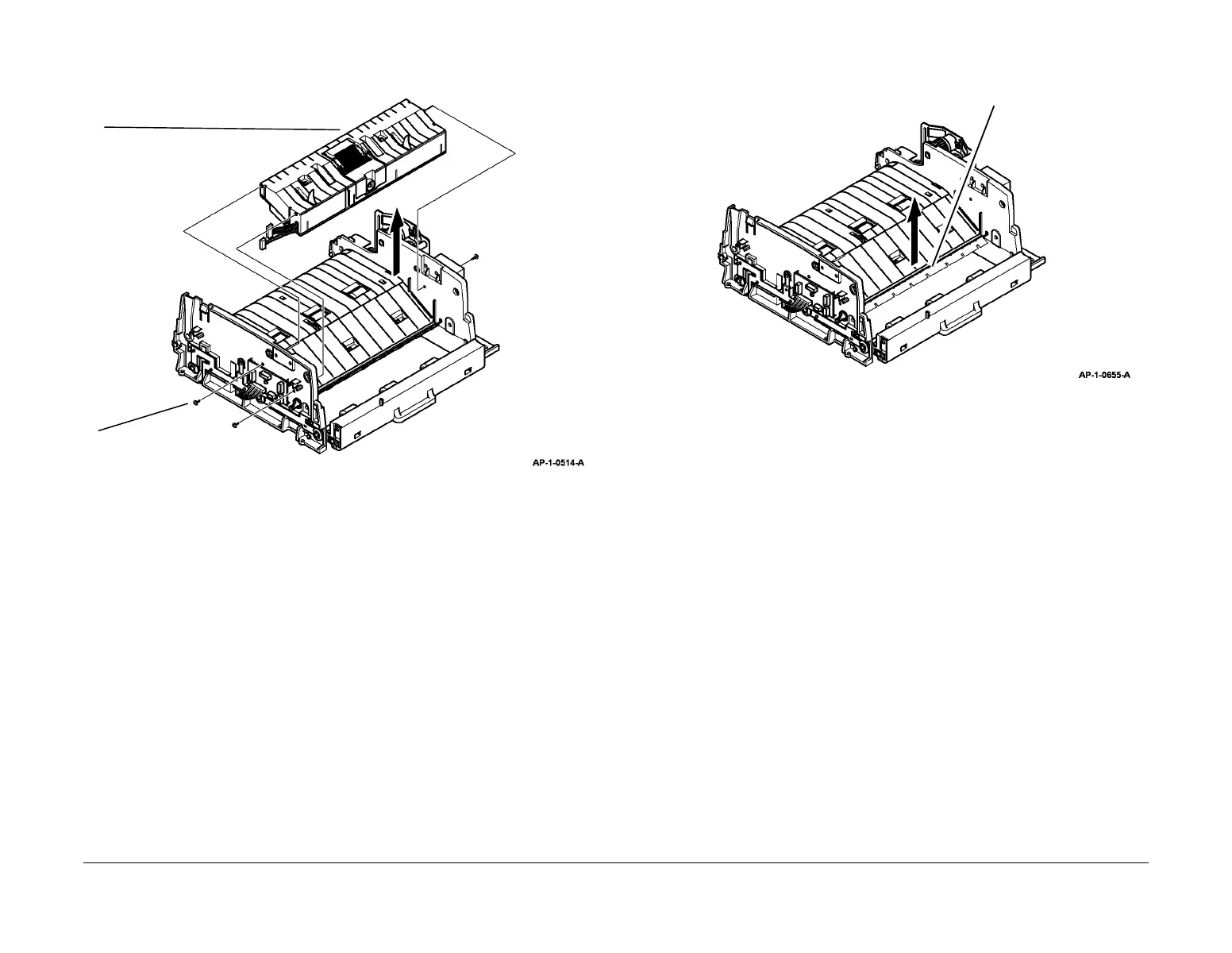

Figure 15 Lower feed assembly removal
17. Remove the duplex gate, Figure 16.
Figure 16 Duplex gate removal
1
Remove 3 screws.
2
Remove the lower feed
assembly.
1
Remove the duplex
gate.
