Xerox WorkCentre 4265

January 2016
4-37
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.1
Repairs and Adjustments

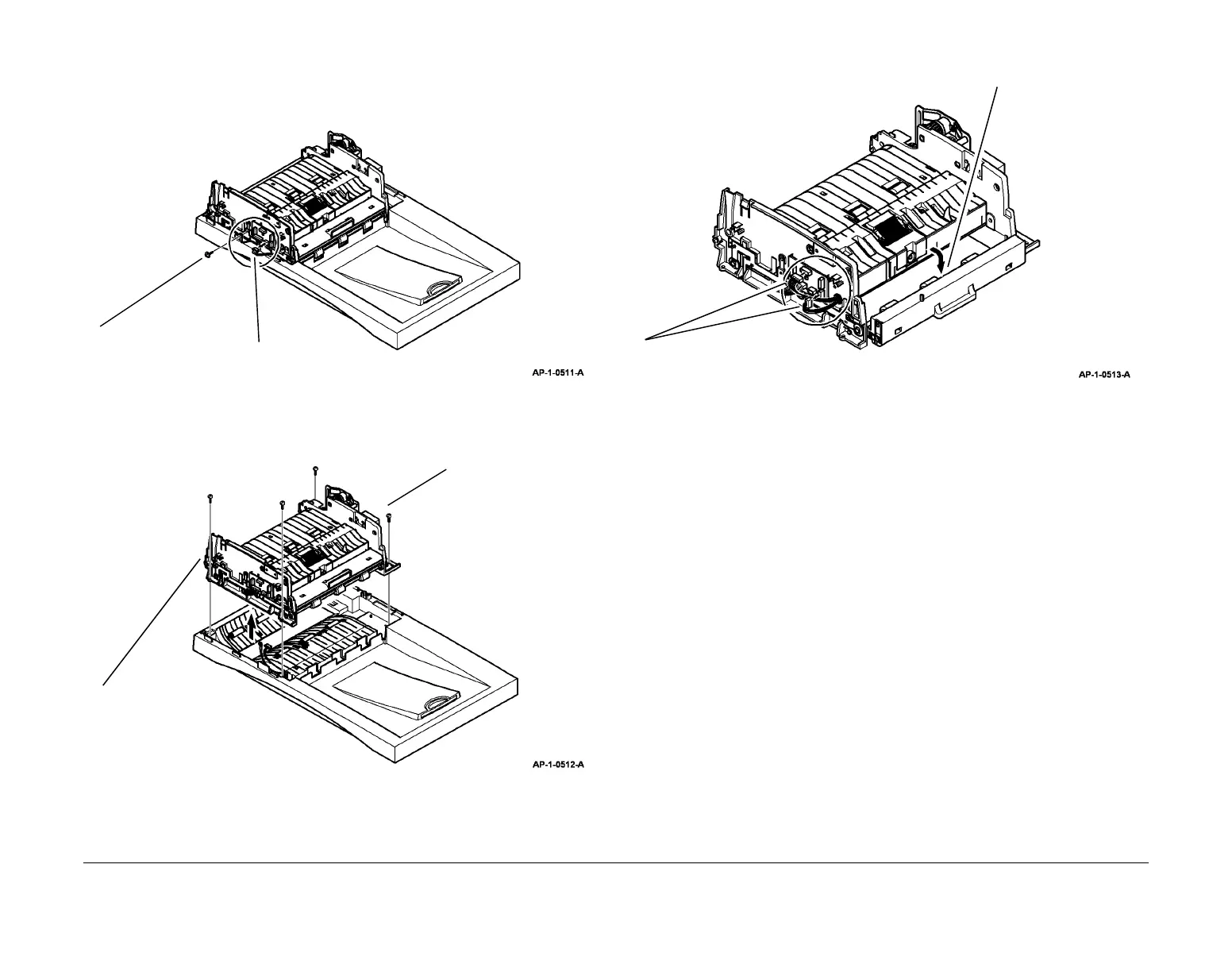

13. Prepare to remove the document transport, Figure 12.
Figure 12 Preparation
14. Remove the document transport, Figure 13.
Figure 13 Document transport removal
15. Prepare to remove the lower feed assembly, Figure 14.
Figure 14 Preparation
1
Disconnect CN1.
2
Disconnect 1 ground
harness.
1
If necessary, remove 4
screws.
2
Remove the document
transport.
1
Open the exit assembly.
2
Disconnect CN4 and CN6.
