Xerox WorkCentre 4265 Service Manual

January 2016
4-36
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.1
Repairs and Adjustments

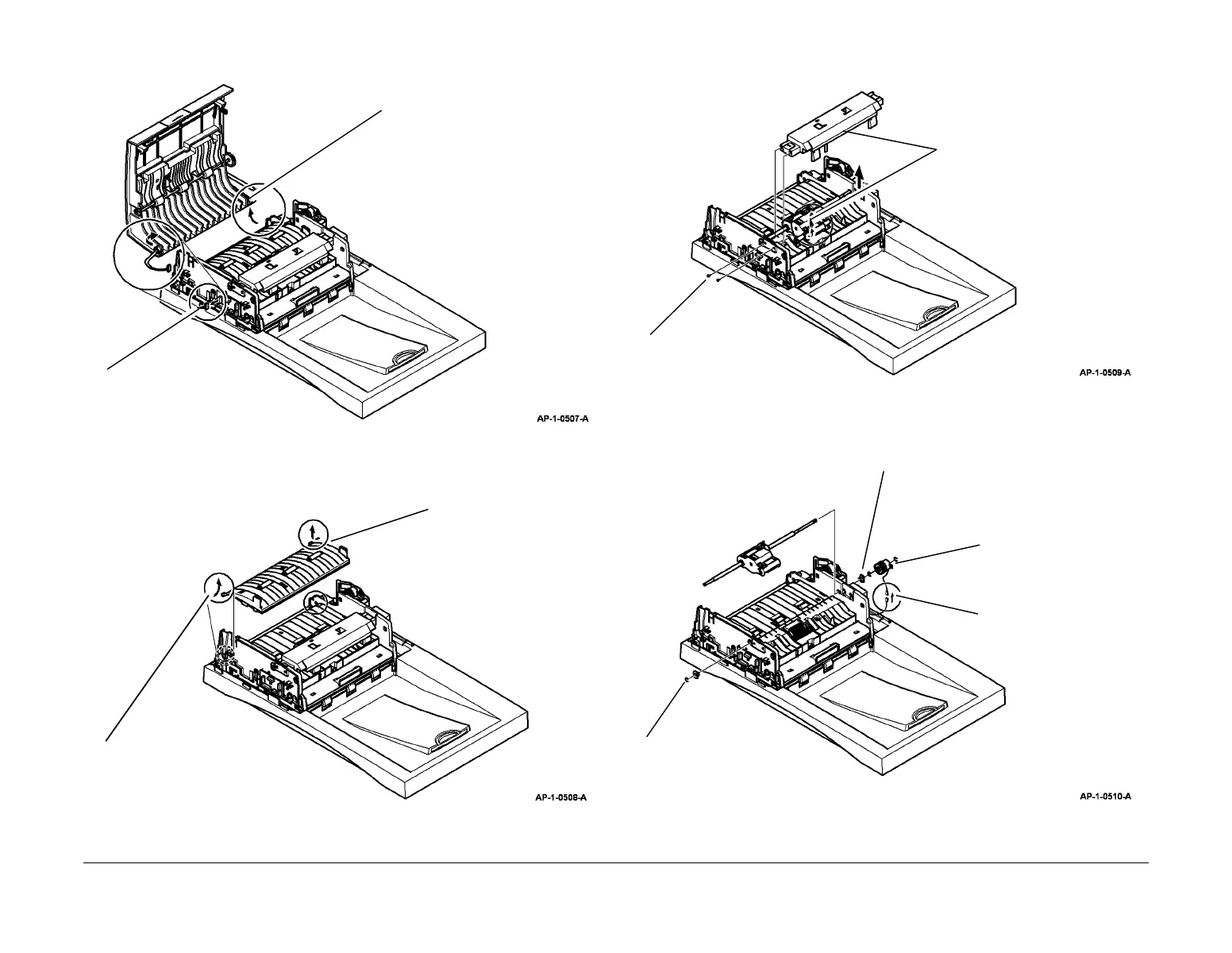

9. Remove the top cover assembly, Figure 8.
Figure 8 Top cover removal
10. Remove the duplex guide, Figure 9.
Figure 9 Duplex guide removal
11. Remove the upper feed assembly, Figure 10.
Figure 10 Upper feed assembly removal
12. Remove the feed roll assembly, Figure 11.
Figure 11 Feed roll assembly removal
1
Disconnect CN5 and 1 ground
harness.
2
Align the flat on the rear pivot with
the slot in the frame. Remove the
top cover assembly from the rear
pivot, then the front pivot.
2
Remove the duplex guide.
1
Carefully twist the front of the
frame to release the duplex guide.
2
Disconnect the spring, then
remove the upper feed assembly.
1
Remove 2 screws.
2
Remove 1 E-clip, then the
pickup clutch.
4
Remove 1 E-clip, 1 bearing,
then the feed roll assembly.
1
Disconnect the inline con-
nector.
3
Remove 1 E-clip, then the
bearing.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
