REP 5.2
Repairs and Adjustments
6. Remove the DADF PWB, Figure 1.

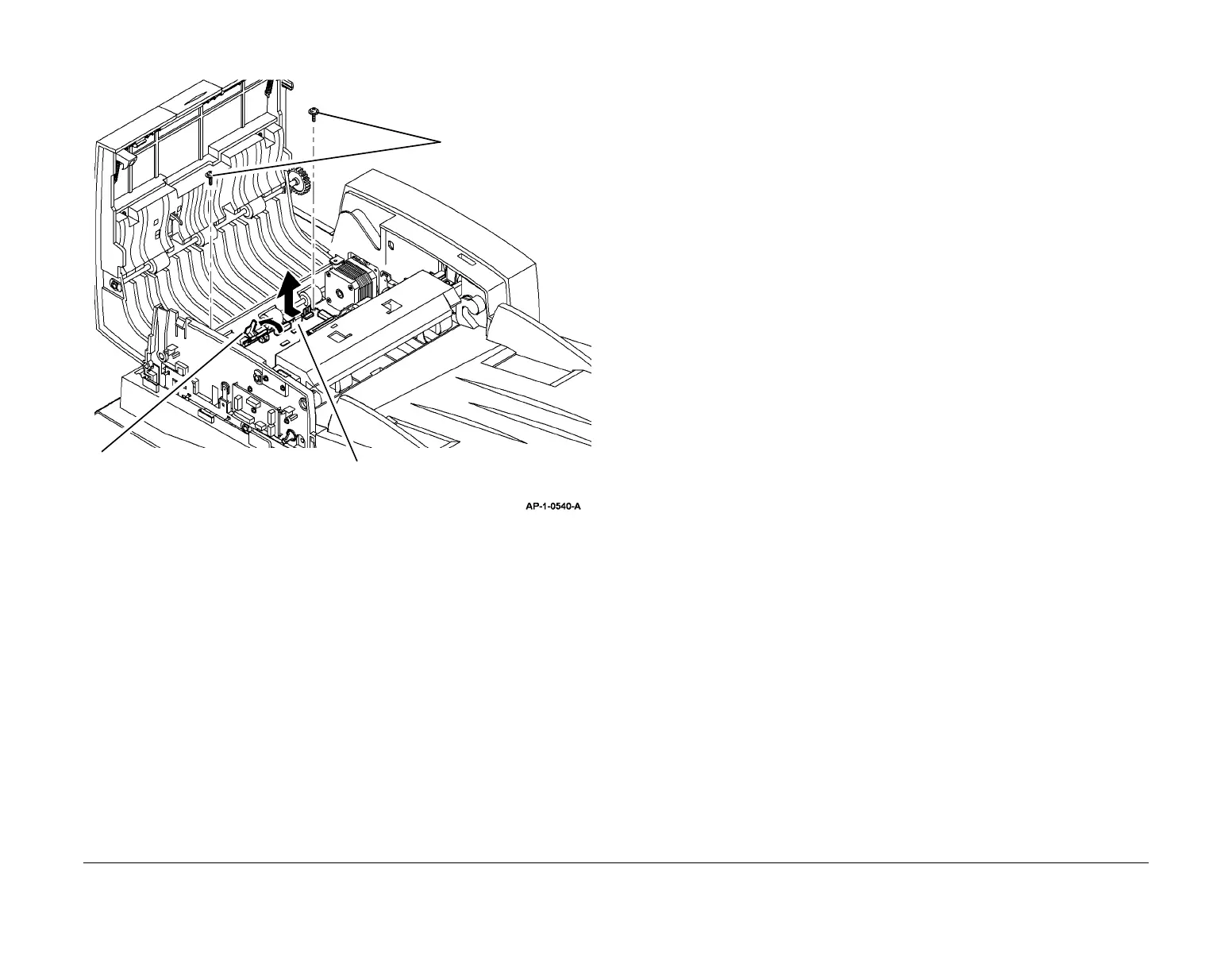

Figure 1 DADF PWB removal
Replacement
Replacement is the reverse of the removal procedure.
1
Remove 2 screws.
2
Hold the scan sensor
actuator to the left.
3
Carefully remove the
DADF PWB.
