January 2016
4-41
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.1, REP 5.2
Repairs and Adjustments
3. Ensure that the DADF feed gate and link arm are correctly positioned when the upper
feed assembly is installed, Figure 22.

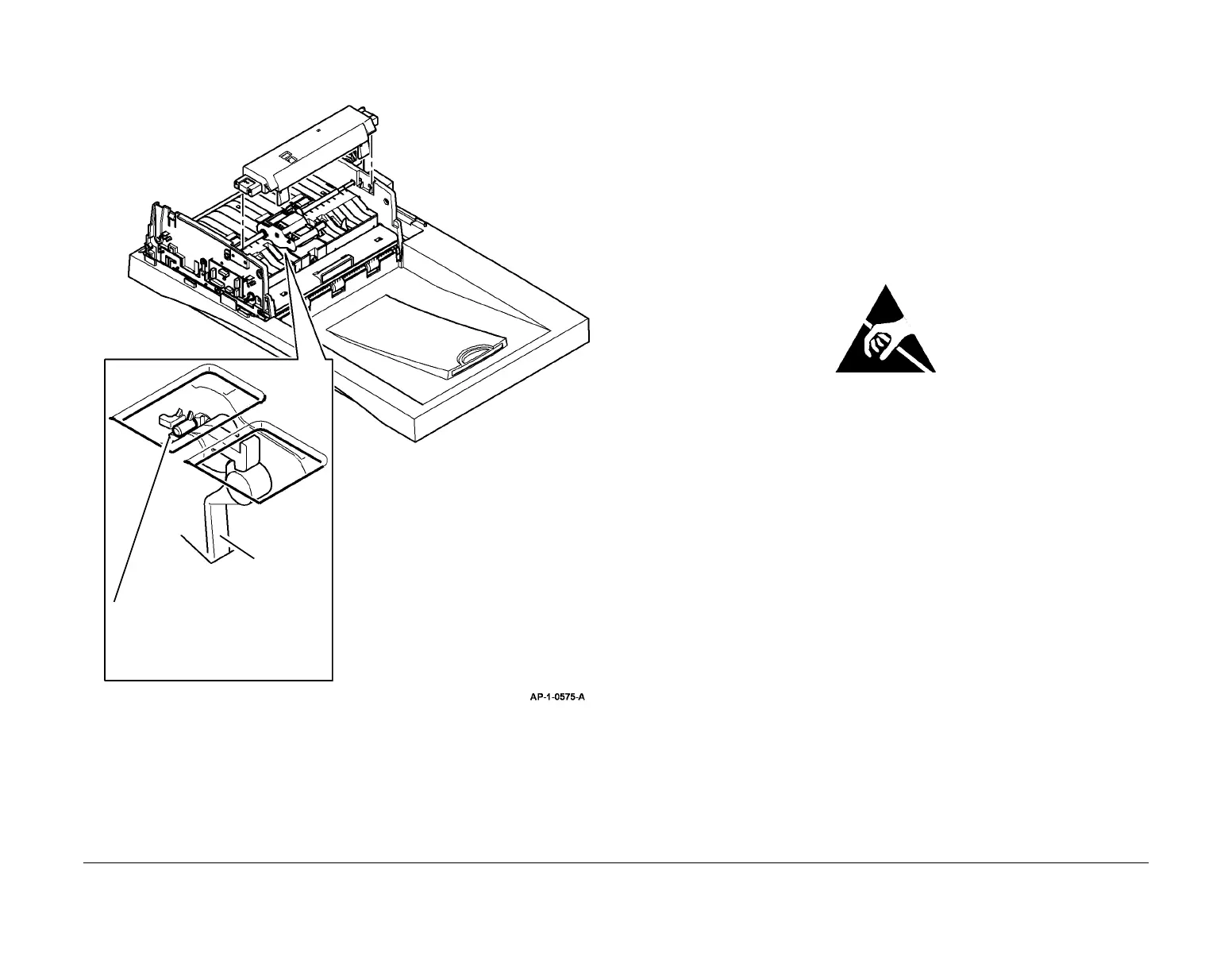

Figure 22 DADF feed gate
REP 5.2 DADF PWB (4150)
Parts List on PL 5.20
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
CAUTION
Ensure that E.S.D. procedures are observed during the removal and installation of the DADF
PWB. Make a visual check to ensure that the pins are fully inserted, without being damaged.
1. Open the DADF top cover assembly, PL 5.15 Item 11.
2. Remove the DADF front cover, refer to REP 5.1.
3. Remove the DADF duplex guide, refer to REP 5.1.
4. Remove the DADF left guide, PL 5.20 Item 9.
5. Disconnect all CNs on the DADF PWB.
Feed gate
in slot
1
Move the rear of the link
arm to below the peg on
the feed roll assembly.
To Next Page
