Xerox WorkCentre 4265 Service Manual

January 2016
4-46
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.5
Repairs and Adjustments
REP 5.5 DADF Feed Roll Assembly (4250/4260)
Parts List on PL 5.40
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Open the top cover assembly, PL 5.30 Item 2.
2. Remove the DADF feed roll assembly, Figure 1.

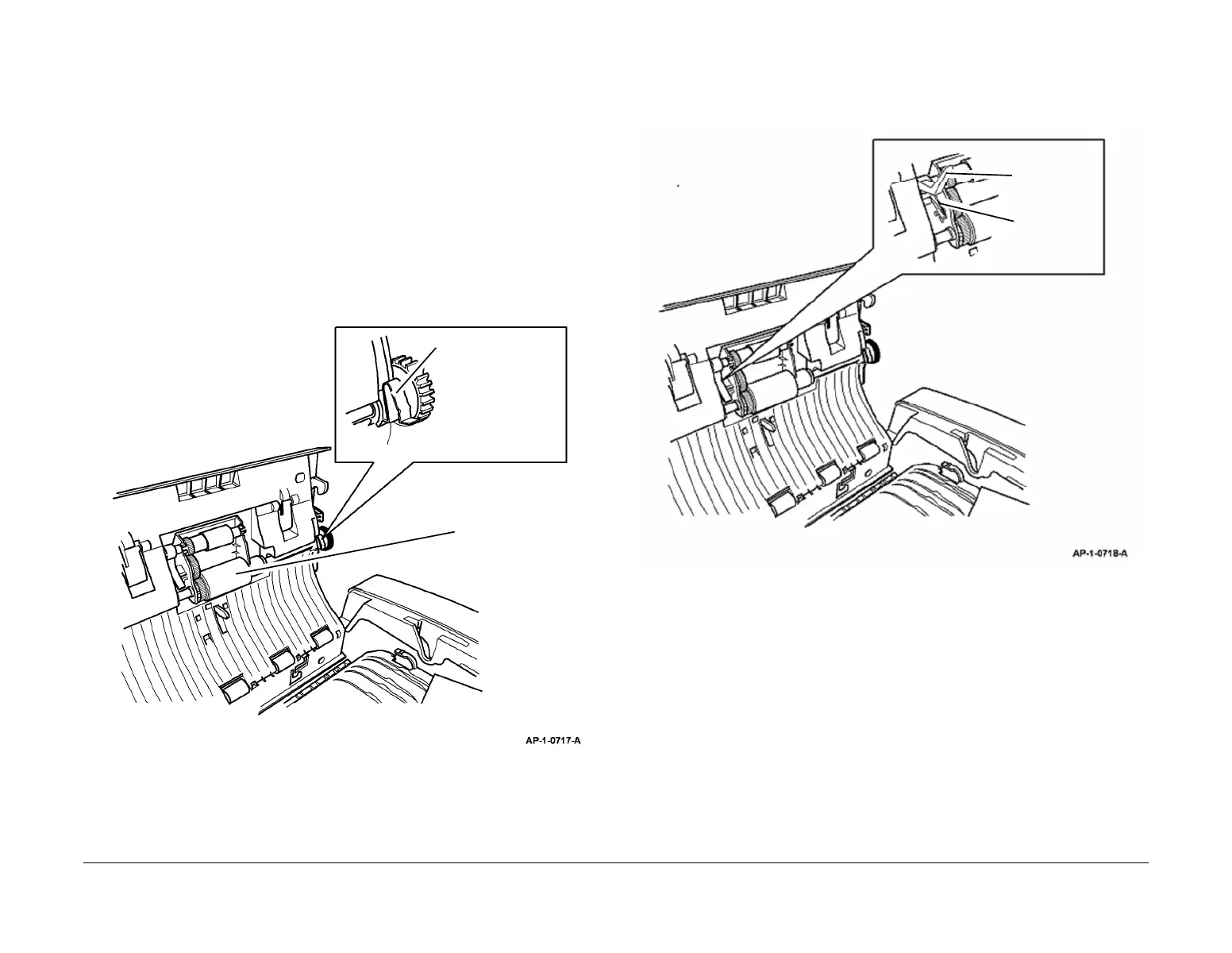

Figure 1 Removing the Feed Roll Assembly
3. Remove the bearings, PL 5.40 Item 9 and the retaining clip, PL 5.40 Item 8 from the feed
roll assembly.
Replacement
Replacement is the reverse of the removal procedure. Ensure that the DADF feed gate and
link arm are correctly positioned when the feed assembly is installed, Figure 2.
Figure 2 Replacement
1
Rotate the retaining
clip 90 degrees.
2
Remove the feed roll
assembly.
Link arm
Feed gate

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
