Xerox WorkCentre 4265 Service Manual

January 2016
4-62
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.17
Repairs and Adjustments
REP 5.17 DADF PWB (4265)
Parts List on PL 5.60
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
CAUTION
Ensure that E.S.D. procedures are observed during the removal and installation of the DADF
PWB. Make a visual check to ensure that the pins are fully inserted, without being damaged.
1. Switch off machine power. Disconnect the power cord.
2. Remove the DADF (REP 5.3).
3. Dislocate the DADF Rear Cover (Figure 1).

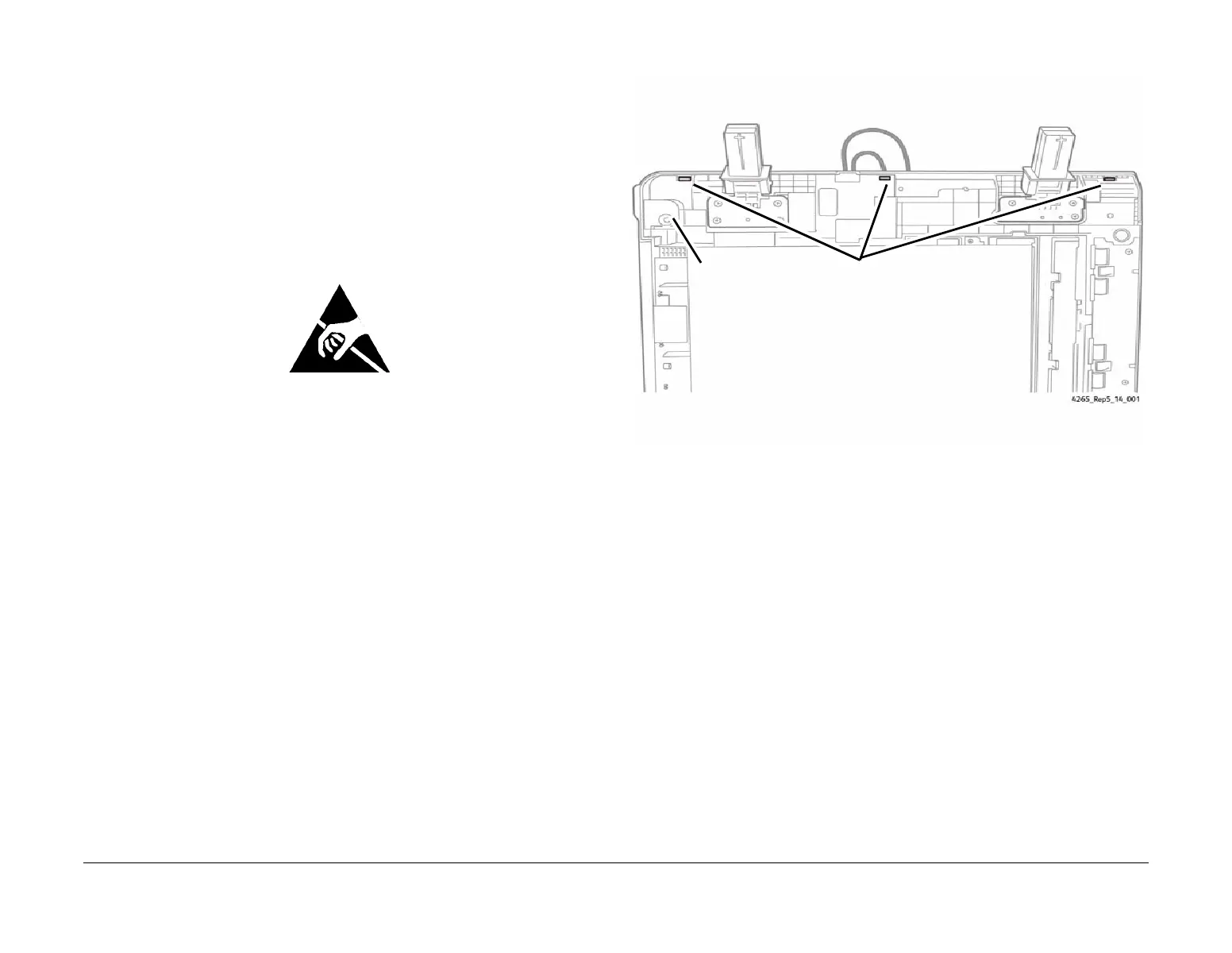

Figure 1 Dislocating the DADF Rear Cover
1
Set the DADF on its side, with the rear of the DADF facing upwards.
3
Carefully dislocate the
three locking tabs using a
flat-blade screwdriver.
4
Set the DADF down on the
table top, with the top side
facing upwards.
2
Remove the screw.
