Xerox WorkCentre 4265

January 2016
4-66
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.18
Repairs and Adjustments

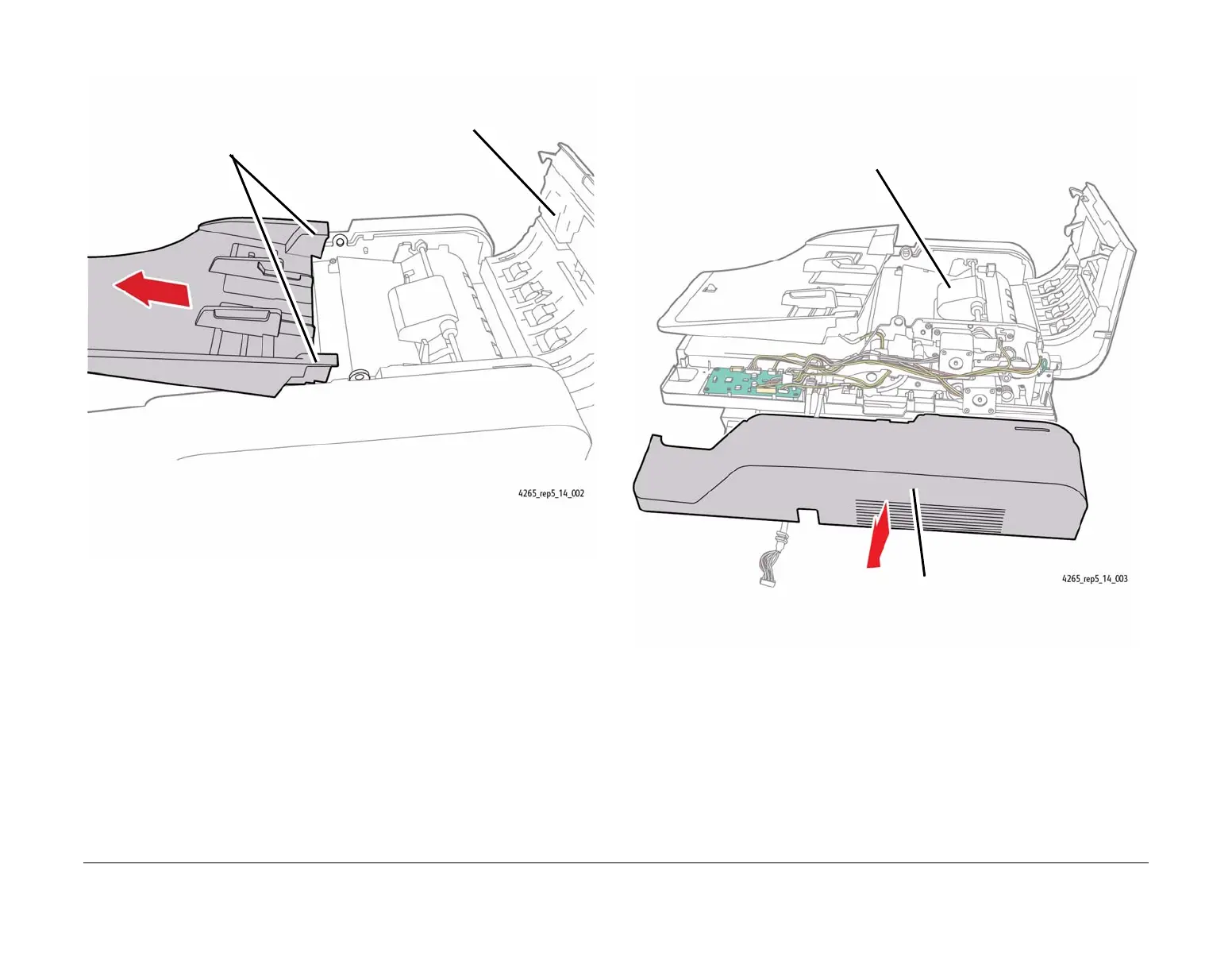

4. Dislocate the Input Tray from the DADF (Figure 2).
Figure 2 Dislocating the Input Tray from the DADF
5. Remove the Rear Cover from the DADF (Figure 3).
Figure 3 Removing the Rear Cover
2
Dislocate the Input Tray from the pivot
bearings by pressing inwards on each
side of the tray
3
Leave the Input Tray on top of the DADF.
1
Open the Top Cover
Assembly.
2
Detach the Rear Cover
from the DADF
1
Remove the DADF Pickup
Assembly (REP 5.15).
