Xerox WorkCentre 4265

January 2016
4-67
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.18
Repairs and Adjustments
6. Remove the Outer Cover from the Front Cover of the DADF (Figure 4).
NOTE: The Outer Cover is press-fit onto to Front Cover, and requires only a slot-head
screwdriver to remove.

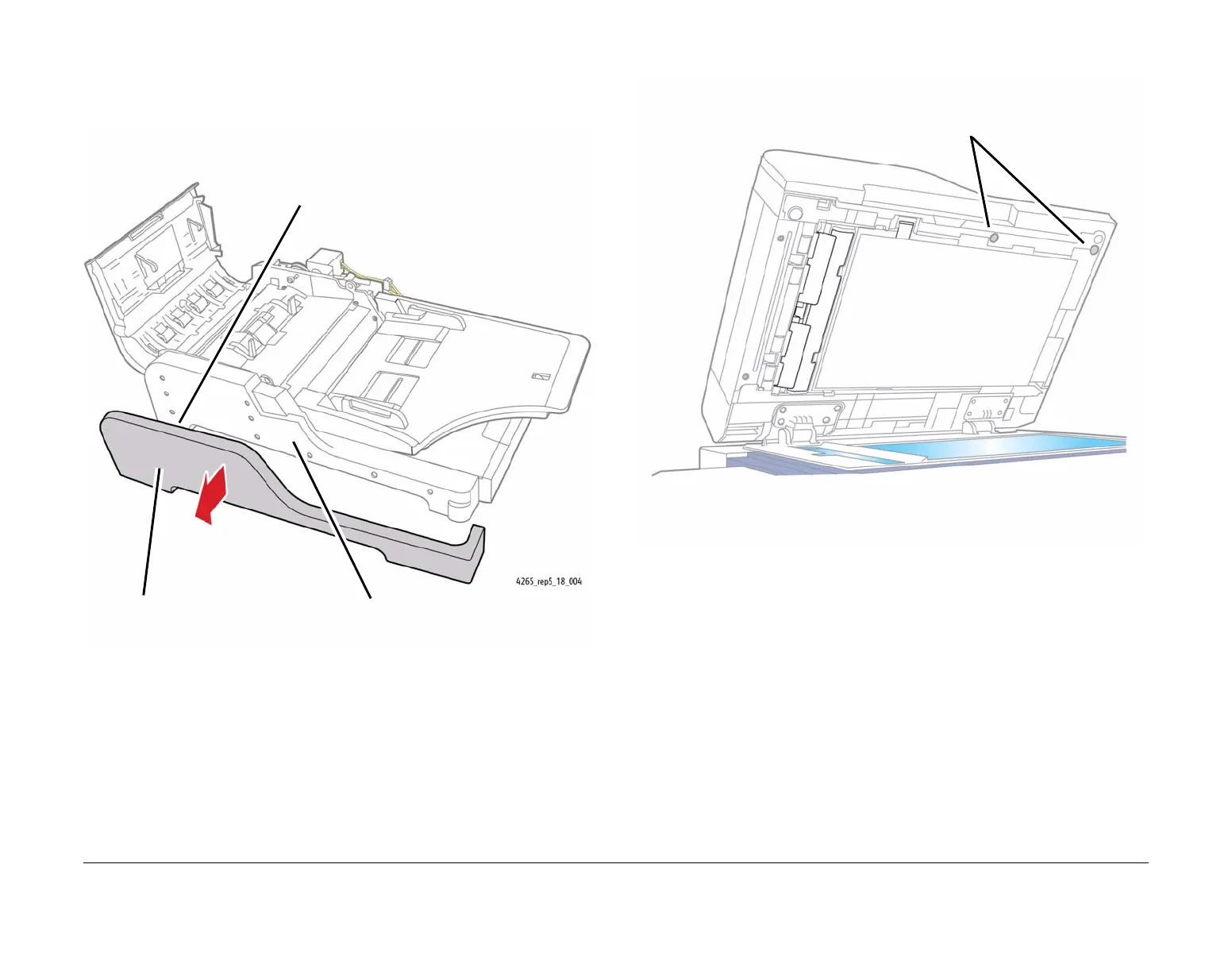

Figure 4 Removing the Outer Cover from the Front Cover
7. Open the DADF and remove the two Front Cover mounting screws (Figure 5).
Figure 5 Removing the Front Cover Mounting Screws
1
Work a small slot-head screwdriver around
the perimeter of the Outer Cover, and sepa-
rate it from the Front Cover.
Outer Cover
Front Cover
1
Remove the two Front Cover
mounting screws.
