REP 5.21
Repairs and Adjustments
4. Dislocate the Input Tray from the DADF (Figure 2).

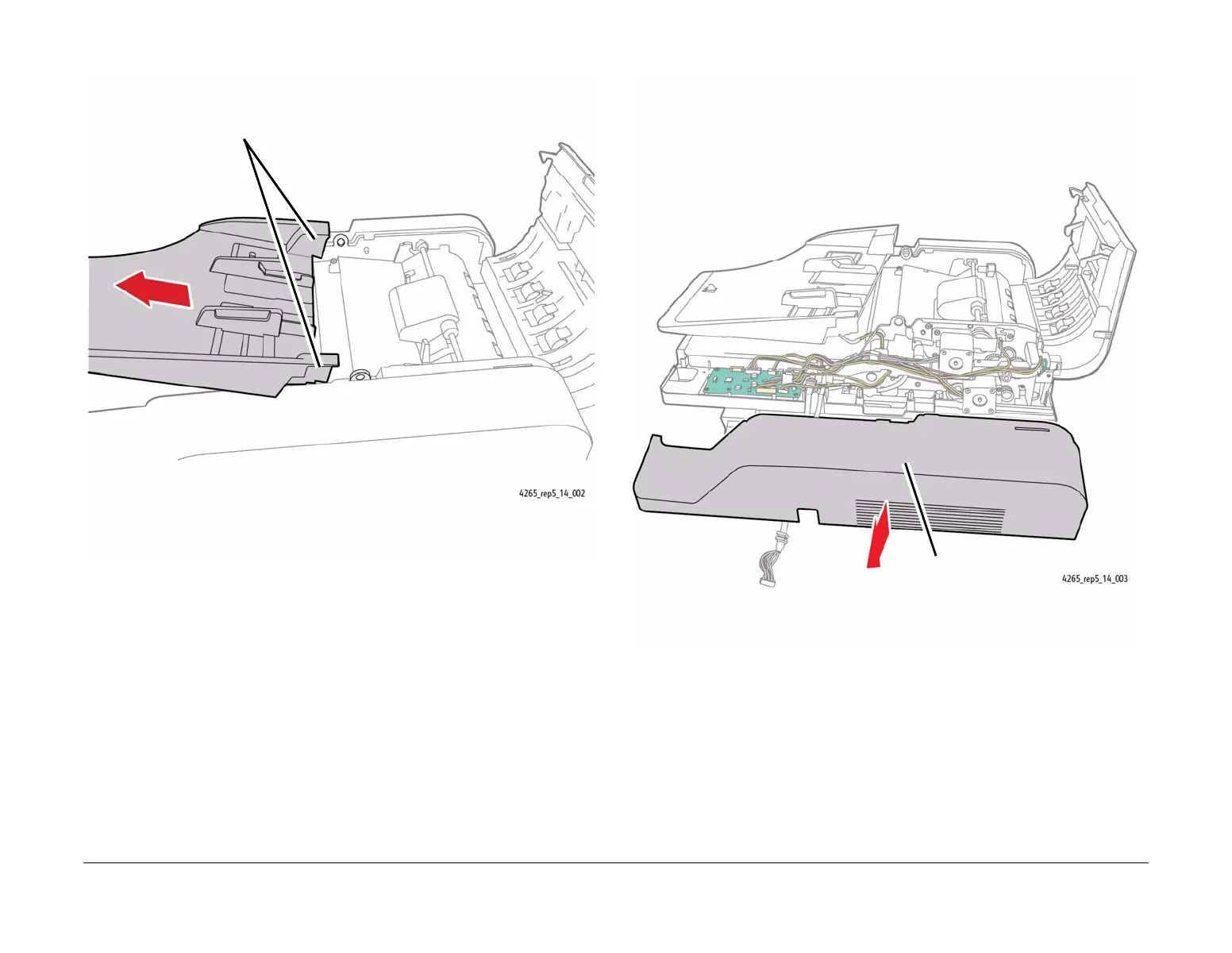

Figure 2 Dislocating the Input Tray from the DADF
5. Remove the Rear Cover from the DADF (Figure 3).
Figure 3 Removing the Rear Cover
6. Remove the DADF Pickup Assembly (REP 5.15).
1
Dislocate the Input Tray from the pivot bearings by
pressing inwards on each side of the tray
2
Leave the Input Tray on top of the DADF.
1
Detach the Rear
Cover from the
DADF
