REP 5.21
Repairs and Adjustments
7. Prepare to remove the Harness Holder (Figure 4).

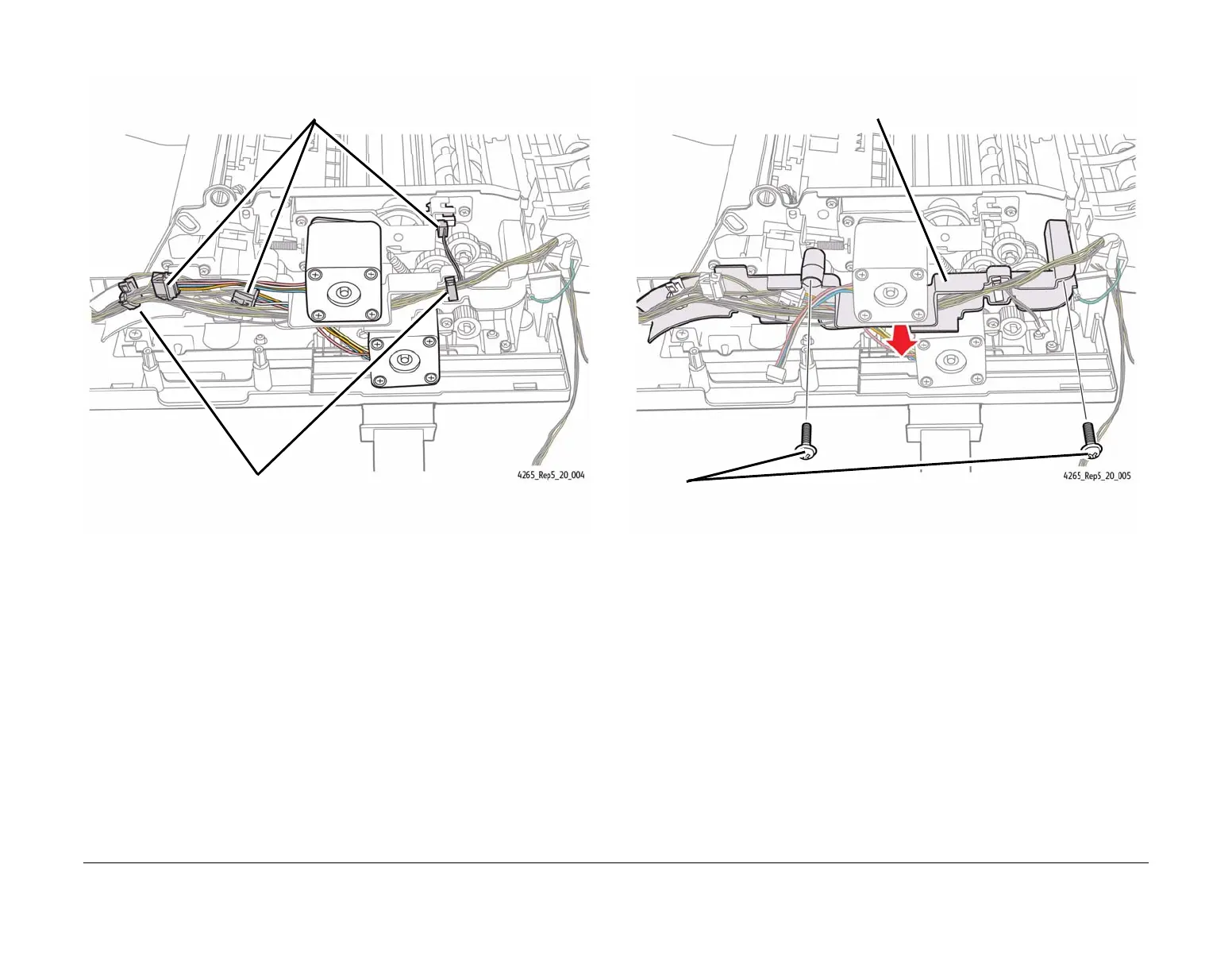

Figure 4 Preparing to Remove the Harness Holder
8. Remove the Harness Holder (Figure 5).
Figure 5 Removing the Harness Holder
1
Disconnect the three connectors.
2
Unclip the two cable clips and remove
all wires from the Harness Holder.
1
Remove the two
mounting screws.
2
Remove the Harness Holder.
