Xerox WorkCentre 4265 Service Manual

January 2016
4-179
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.9
Repairs and Adjustments
6. Prepare to remove the Stacker Tray Motor Assembly, Figure 2.

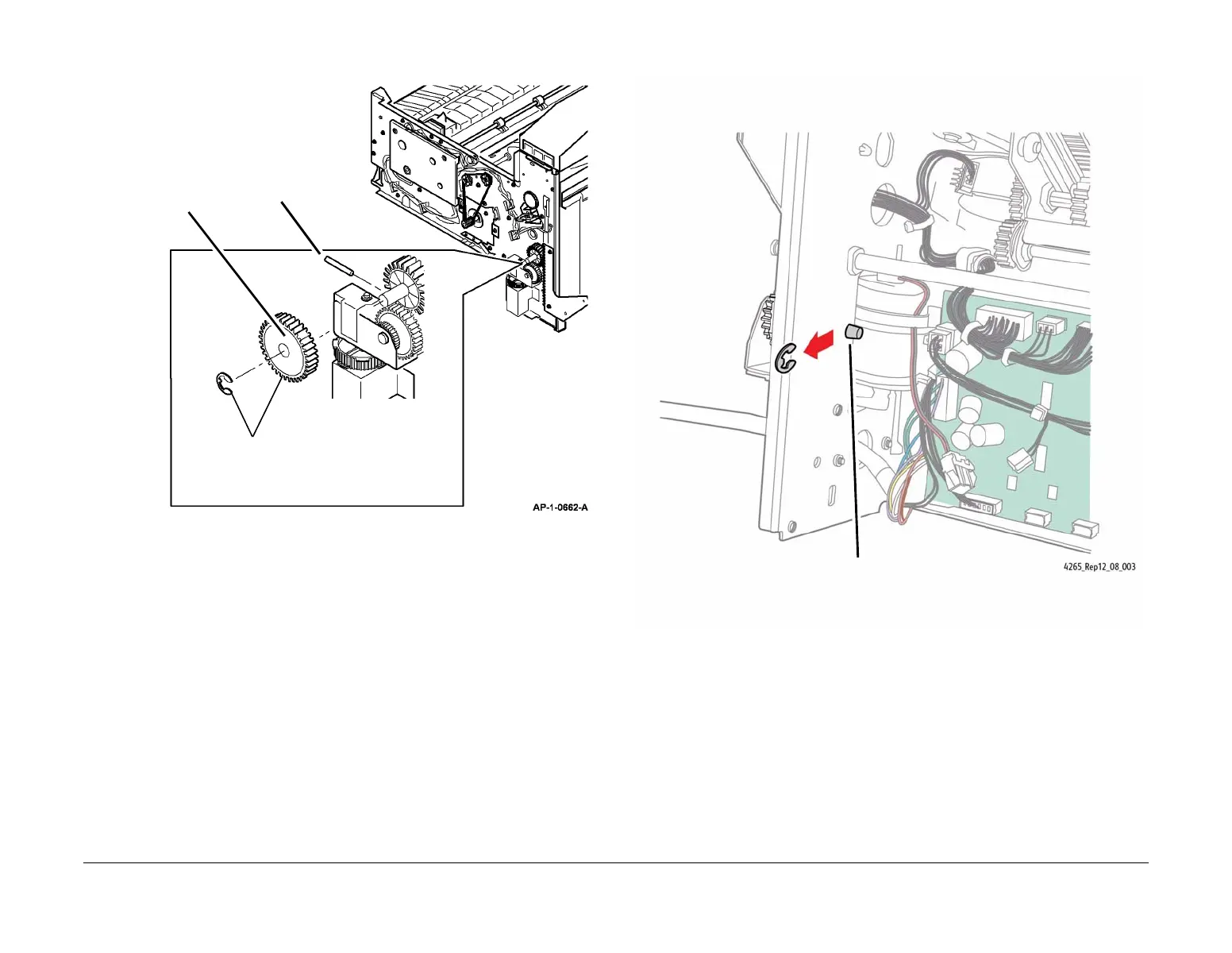

Figure 2 Preparation
7. Remove the e-clip from the Stacker Tray Motor Assembly (Figure 3).
Figure 3 Removing the E-Clip
2
Remove the pin.
1
Remove E-clip, then gear.
NOTE: The pin sits in
a recess on the
inboard face of the
gear.
1
Remove the E-Clip from
the gear shaft.
