Xerox WorkCentre 4265 Service Manual

January 2016
4-180
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.9
Repairs and Adjustments
8. Remove the Stacker Tray Motor Assembly (Figure 4).

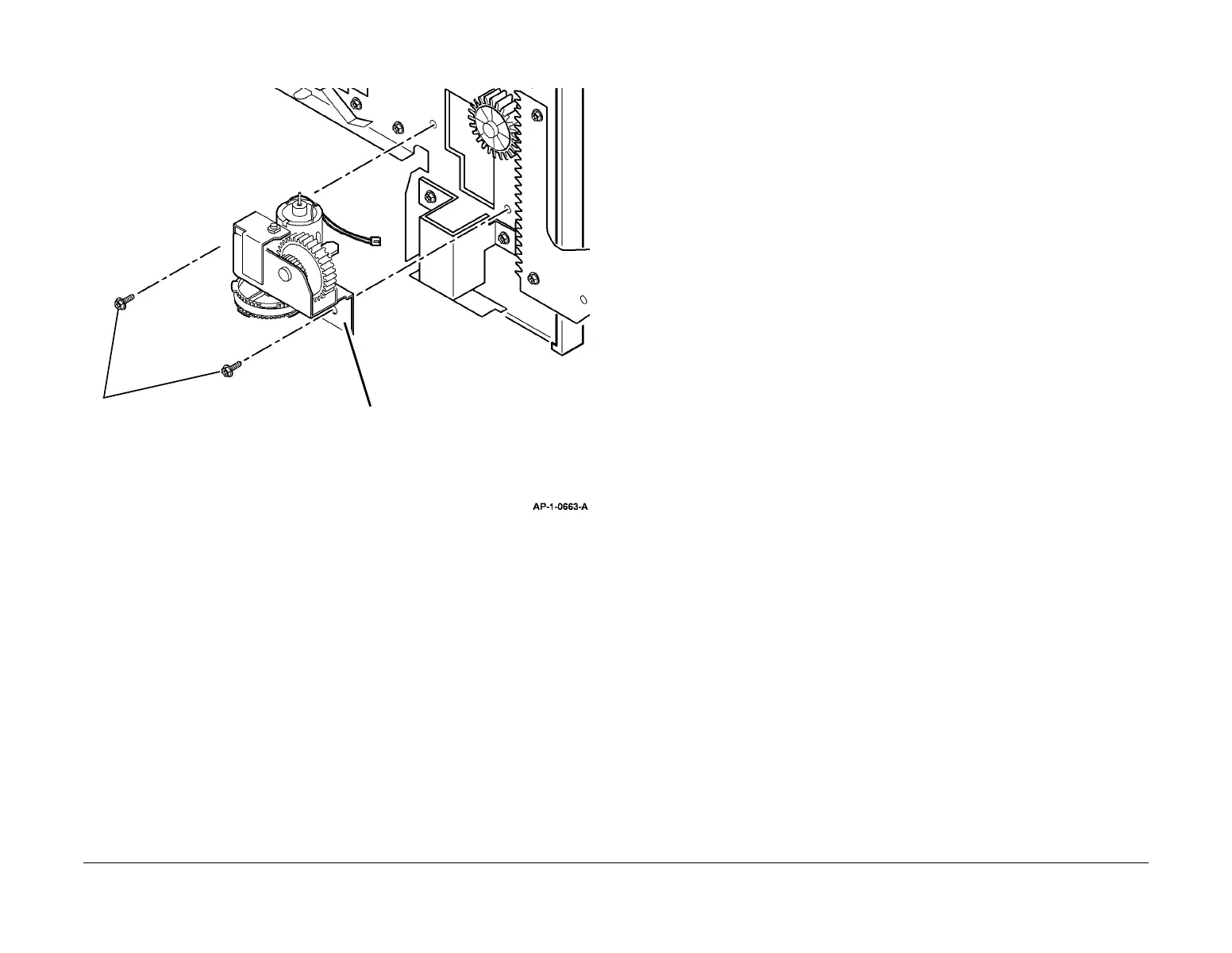

Figure 4 Removing the Stacker Tray Motor Assembly
9. If necessary, remove 1 E-clip, then the pinion gear, PL 12.45 Item 17.
10. Remove components from the Stacker Motor Assembly as necessary:
• Stacker Motor, PL 12.45 Item 20.
• Stacker Motor Belt, PL 12.45 Item 29.
• Worm Wheel, PL 12.45 Item 24.
• Worm Gear, PL 12.45 Item 22.
Replacement
Replacement is the reverse of the removal procedure.
2
Remove the Stacker Tray
Motor Assembly.
1
Remove 2 screws.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
