Xerox WorkCentre 4265 Service Manual

January 2016
4-189
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 14.4
Repairs and Adjustments
5. Remove the Document Size Sensor(s) from the Sensor Cover (Figure 2).

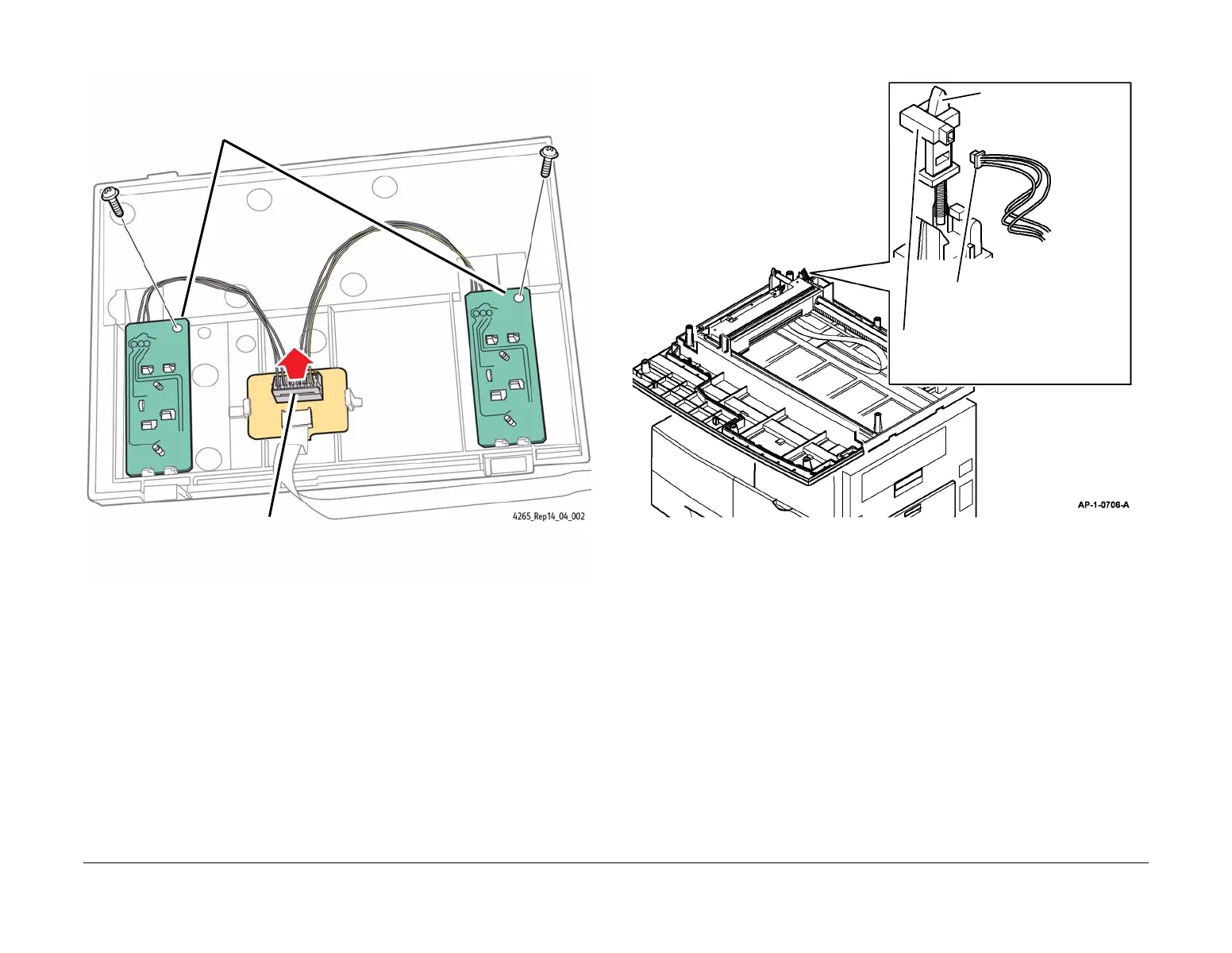

Figure 2 Removing the Size Sensors from the Cover
6. Remove the platen cover sensor and actuator (Figure 3).
Figure 3 Removing the Platen Cover Sensor and Actuator
1
Disconnect the connector.
2
Remove the mounting screw and
remove the particular sensor.
1
Disconnect the connector.
2
Unclip the platen cover sensor.
3
Remove the actuator and
spring.
