Xerox WorkCentre 4265 Service Manual

January 2016
4-190
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 14.4
Repairs and Adjustments

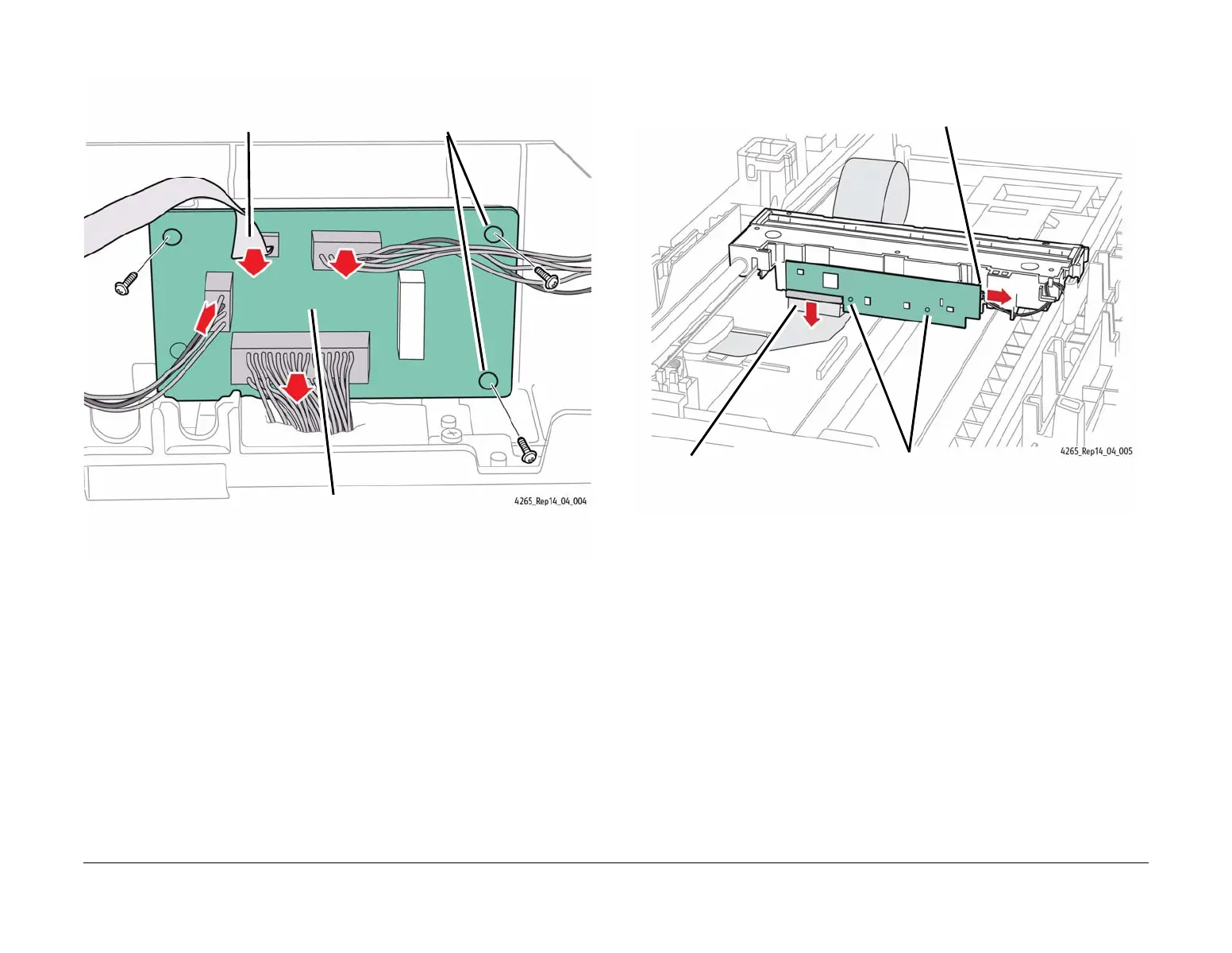

7. Remove the scanner PWB (Figure 4).
Figure 4 Removing the Scanner PWB
8. Remove the Scanner CCD Module PWB (Figure 5).
Figure 5 Removing the Scanner CCD Module PWB
2
Remove the three
mounting screws.
3
Remove the Scanner PWB
from the machine.
1
Disconnect the four PWB
connectors.
3
Remove the two mounting screws
and remove the CCD PWB.
2
Disconnect the ribbon cable.
1
Disconnect the connector.

Xerox WorkCentre 4265 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax, Email
Print Resolution (Max)	Up to 1200 x 1200 dpi
Memory (Standard)	2 GB
Memory (Maximum)	2 GB
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Paper Output	250 sheets
Scan Resolution (Optical)	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Media Sizes Supported	Legal, Letter
Mobile Printing	Apple AirPrint
Duplex Printing	Automatic
Display	7-inch color touchscreen
