7. Install the foreign device interface PWB. Secure using the 2 cross head screws supplied
in the kit, Figure 2.

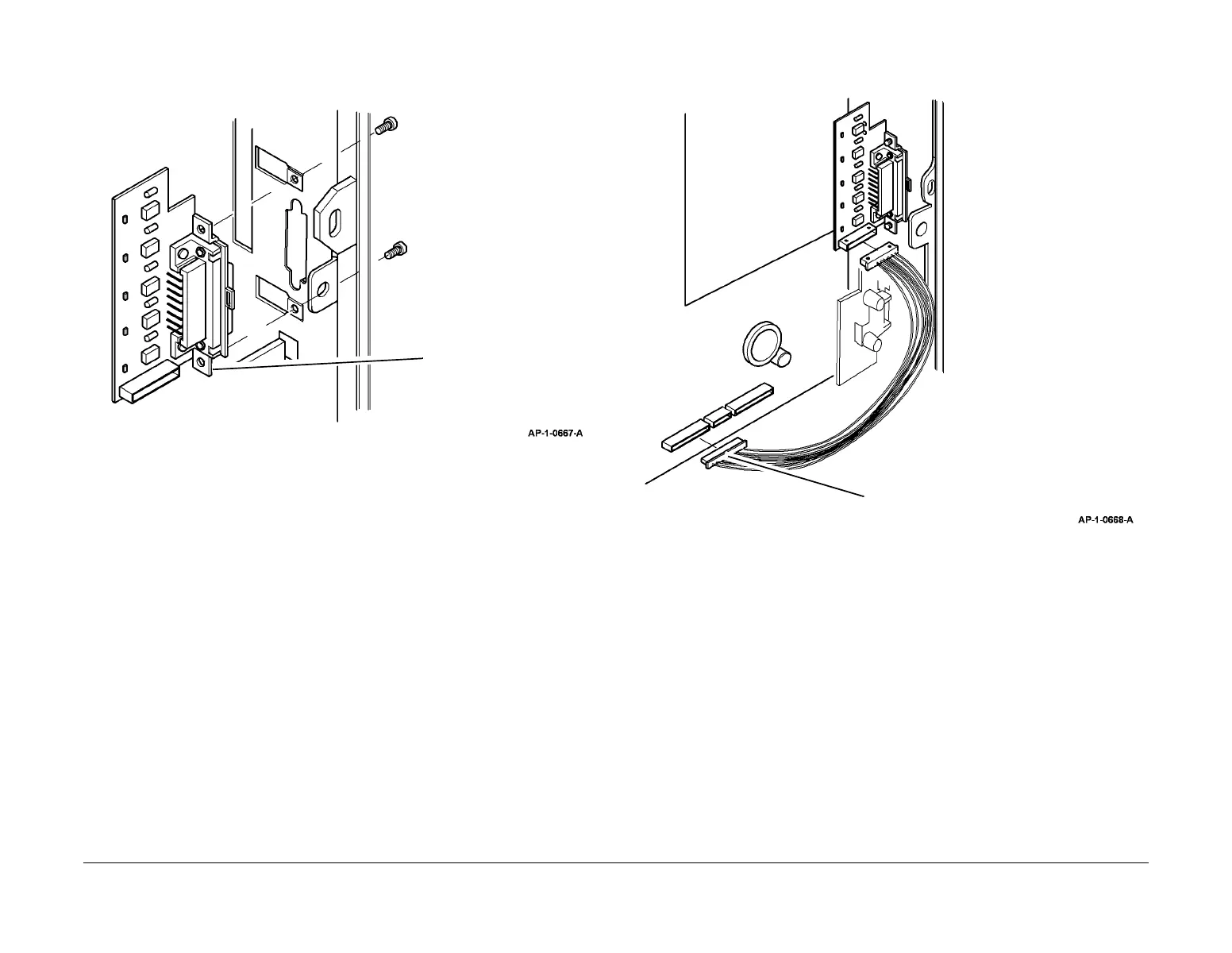

Figure 2 Installation
8. Connect the foreign device interface harness. Connect the harness to CN28 on the main
PWB, Figure 3.
Figure 3 Harness install
9. Reinstall the infill cover.
10. Reinstall the rear cover.
11. If necessary, reinstall the fax module.
12. If necessary, reinstall the network cable and the finisher harness.
13. Go to Enabling the Foreign Device Interface.
Enabling the Foreign Device Interface
1. Switch on the machine.
2. Enter System Admin Tools, GP 4.
3. Select ‘Access and Accounting’.
4. Select ‘Authentication Mode’.
5. Under Foreign Device Interface, select ‘On’.
6. Select ‘Save’.
7. In the Access and Accounting’ window, select ‘Foreign Device Interface Setup’.
8. Correctly setup the foreign device interface.
9. Exit System Admin Tools.
1
Install the PBA foreign
device interface.
