Xerox WorkCentre 4265

January 2016
8-5
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/
ACC 2
Accessories
4250/4260/4265 Install
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
Installing the Foreign Device Interface
1. Unpack the components of the foreign device interface kit.
2. If necessary, disconnect the finisher harness and the network cable.
3. If necessary, remove the fax module, PL 1.15 Item 14.
NOTE: Leave the fax cable connected to the fax module.
4. Remove the infill cover, PL 1.15 Item 19.
5. Carefully remove the foreign device interface push-out from the infill cover, Figure 4.

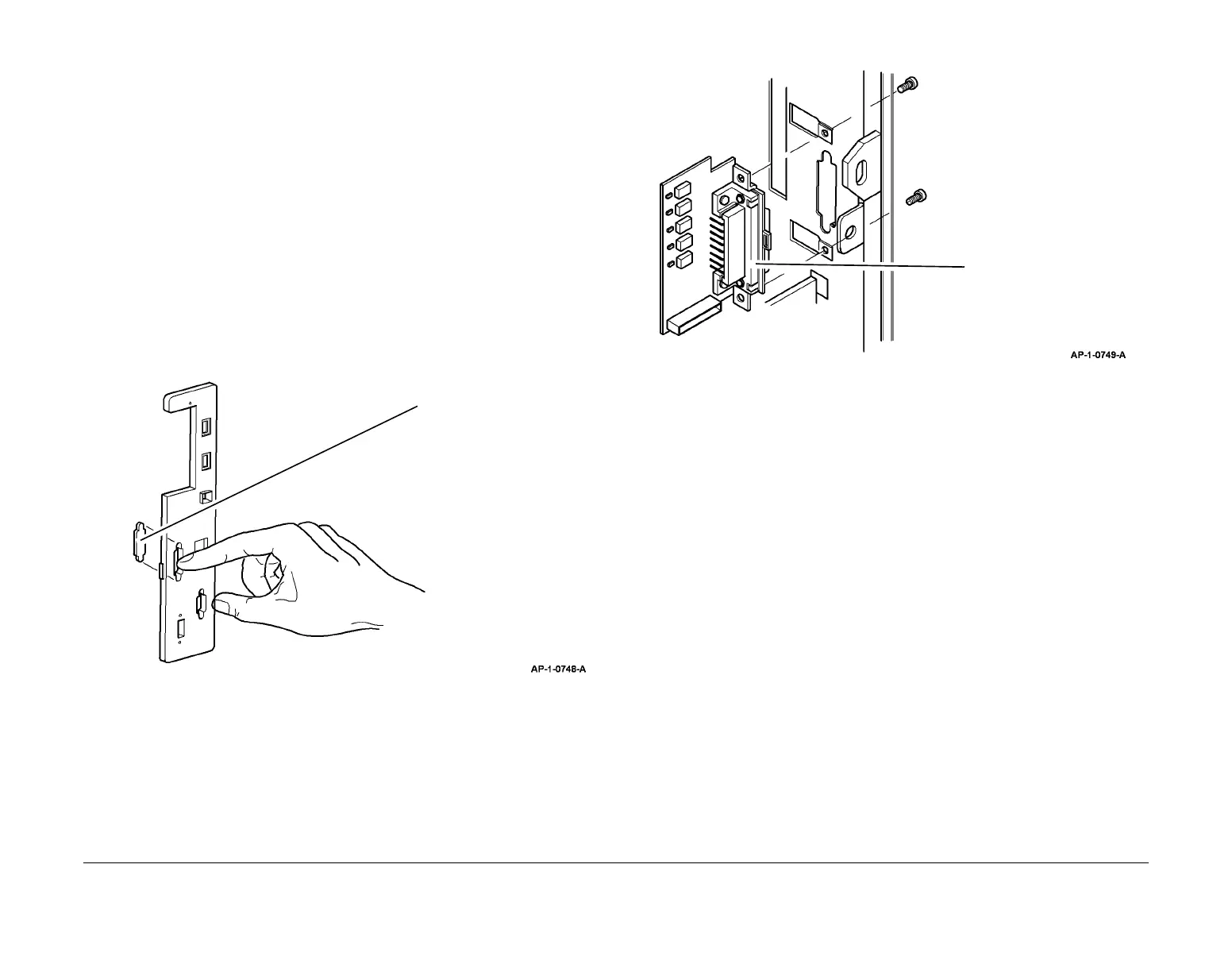

Figure 4 Push-out removal
6. Remove the rear cover, PL 28.10 Item 6.
7. Install the foreign device interface PWB. Secure using the 2 cross head screws supplied
in the kit, Figure 5.
Figure 5 Installation
8. Connect the foreign device interface harness. Connect the harness to CN24 on the main
PWB, Figure 6.
1
Remove the push-out.
1
Install the PBA foreign
device interface.
