ZCU106 Board User Guide 50
UG1244 (v1.0) March 28, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions
SI5341B 10 Independent Output Any-Frequency Clock Generator
[Figure 2-1, callout 8]
• Clock generator: Silicon Labs SI5341B-B05071-GM
• Jitter: <100 fs RMS typical
• Differential and single-ended outputs
The SI5341B (U69) is a one-time programmable clock source. For more details, see the
SI5341B data sheet [Ref 19]. The clock circuit is shown in Figure 3-8.
X-Ref Target - Figure 3-8

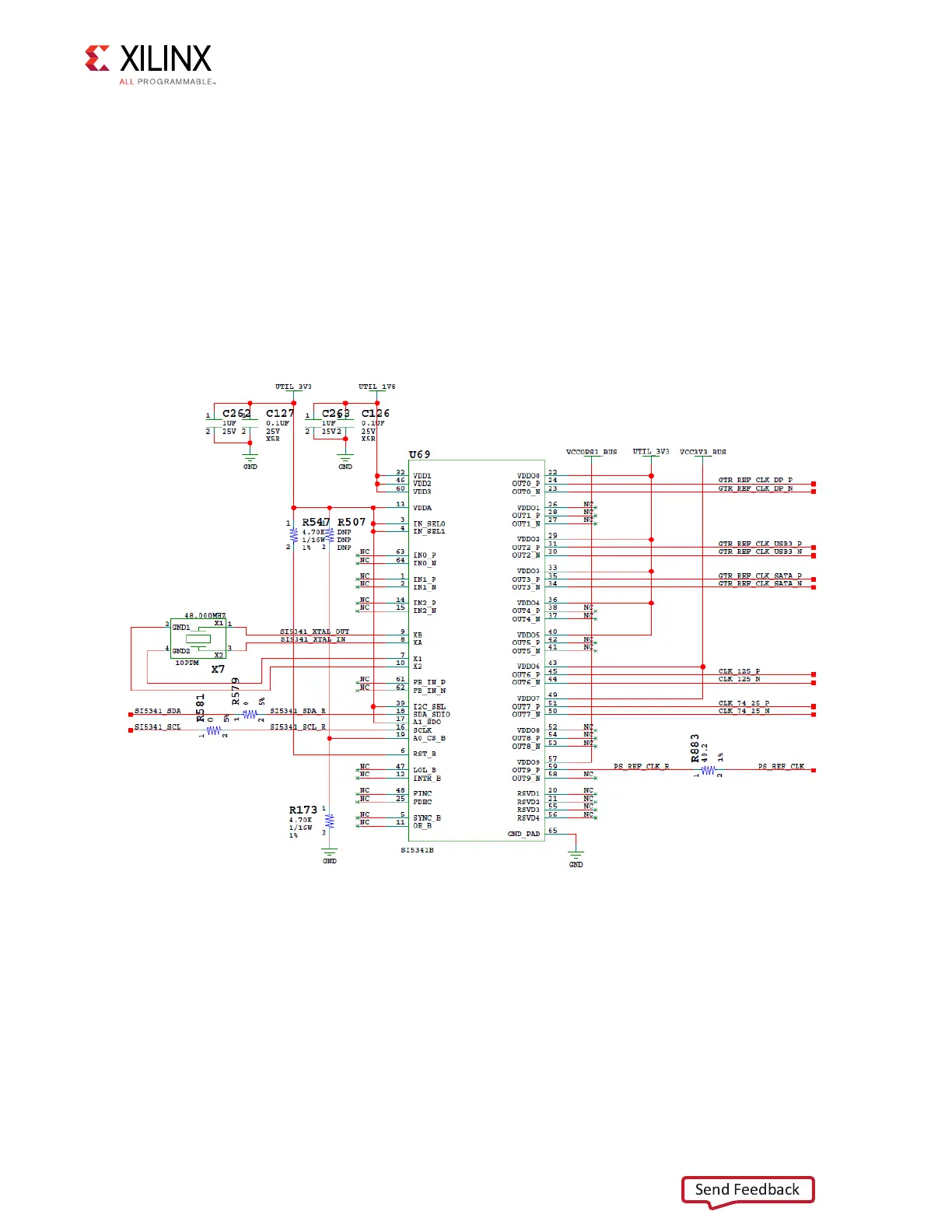

Figure 3-8: SI5341B Clock Generator
