USB TO DEVICE port
Used to connect a USB flash memory, an optional
USB floppy disk drive, etc.
LAN port
Used to connect to the Internet.
OUTPUT jacks
Used to connect the speaker cord from the monitor
speakers*
ANALOG MIDI IN jacks
Used to connect the audio equipment such as an
external CD changer.
OMNI (SYNC) OUT jacks
Used to connect the microphone/line input of a
camcorder.
OMNI (SYNC) IN jacks
Used to connect the audio output of a camcorder.
TO PIANO connectors
Used to connect the piano.
DC-IN 12V connector
Used to connect to the power supply unit.
USB TO HOST port
Used to connect the USB cable from a computer.
MIDI OUT terminal
Used to connect external MIDI equipment for
outputting MIDI data.
MIDI IN terminal
Used to connect external MIDI equipment for
inputting MIDI data.
* Only for models supplied with the monitor speakers.

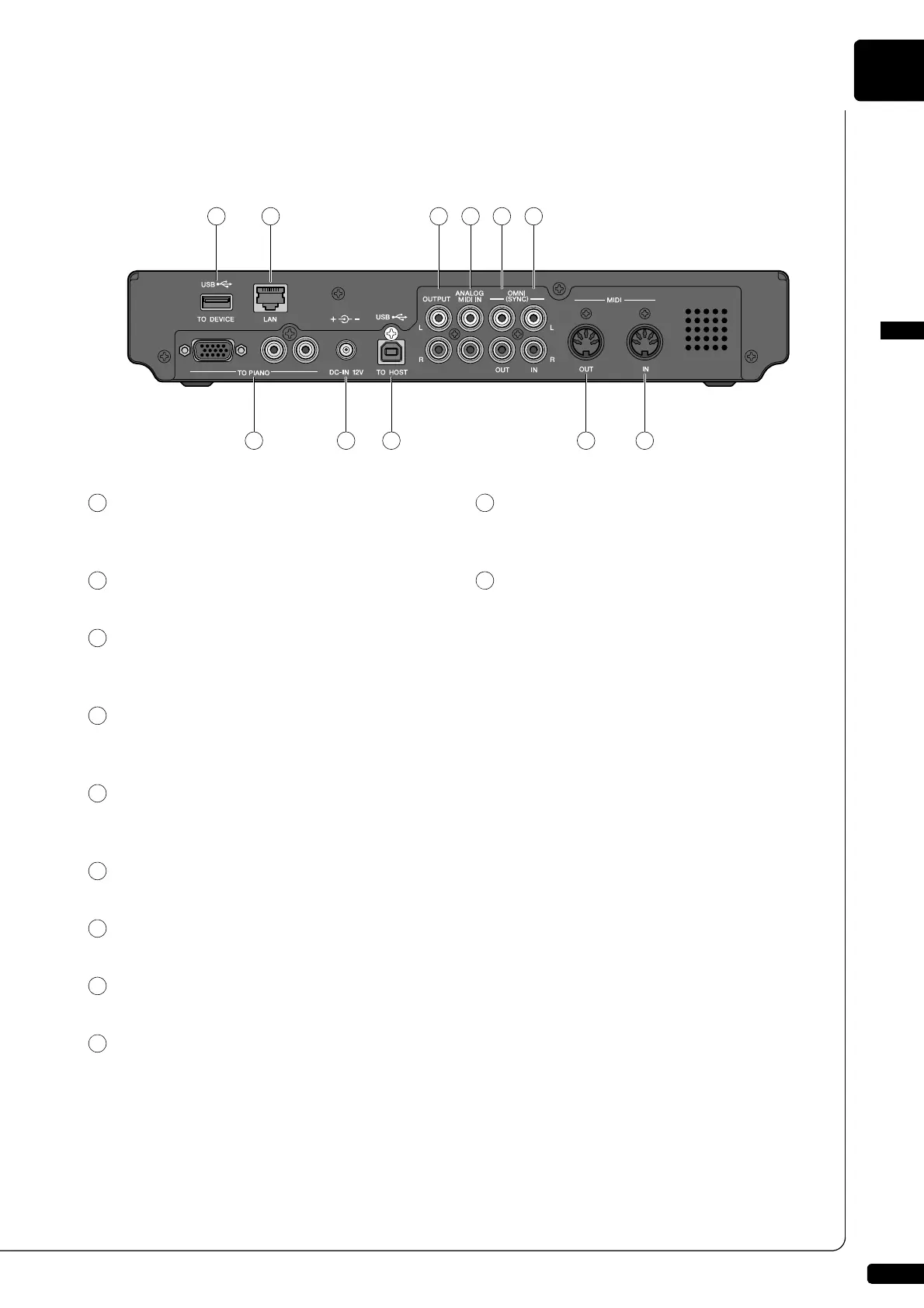

■ Control Unit — Rear Panel
