Yamaha F100A - Fuel Hose and Fuel Filter Exploded Diagram; Removal and Installation Chart

4-1
E
FUEL
FUEL HOSE AND FUEL FILTER
FUEL HOSE AND FUEL FILTER

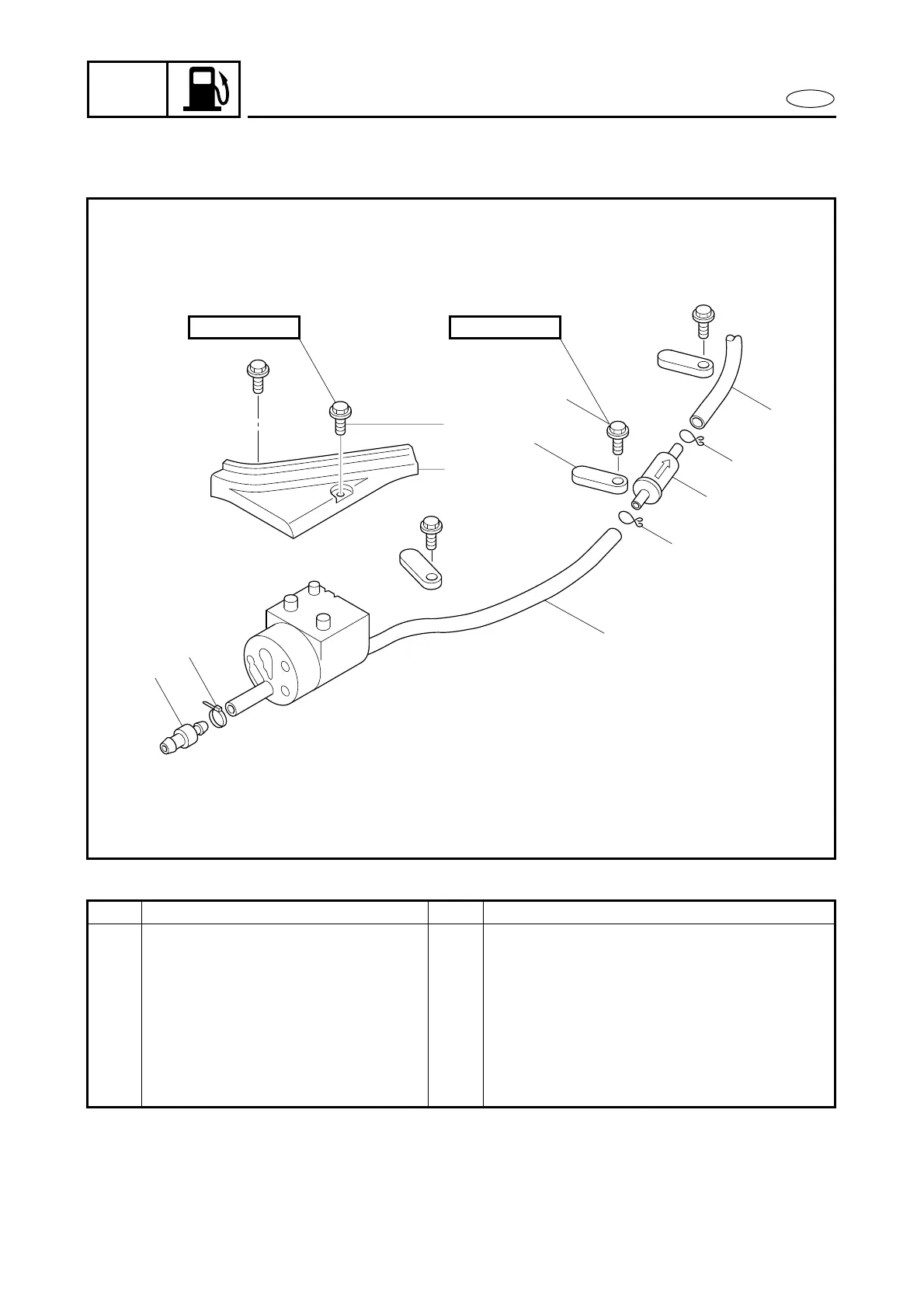

EXPLODED DIAGRAM
1
2
8
5
5
6
7
4
3
10
9
6 × 25 mm
6 × 25 mm
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
FUEL HOSE AND FUEL FILTER
REMOVAL
Follow the left “Step” for removal.
1 Bolt 2
2 Grommet retaining plate 1
3 Bolt 3
4 Plate 3
5 Clip 2
6 Fuel filter 1
