Yamaha F100A - PTT Motor Assembly

7-37
E
BRKT
PTT MOTOR

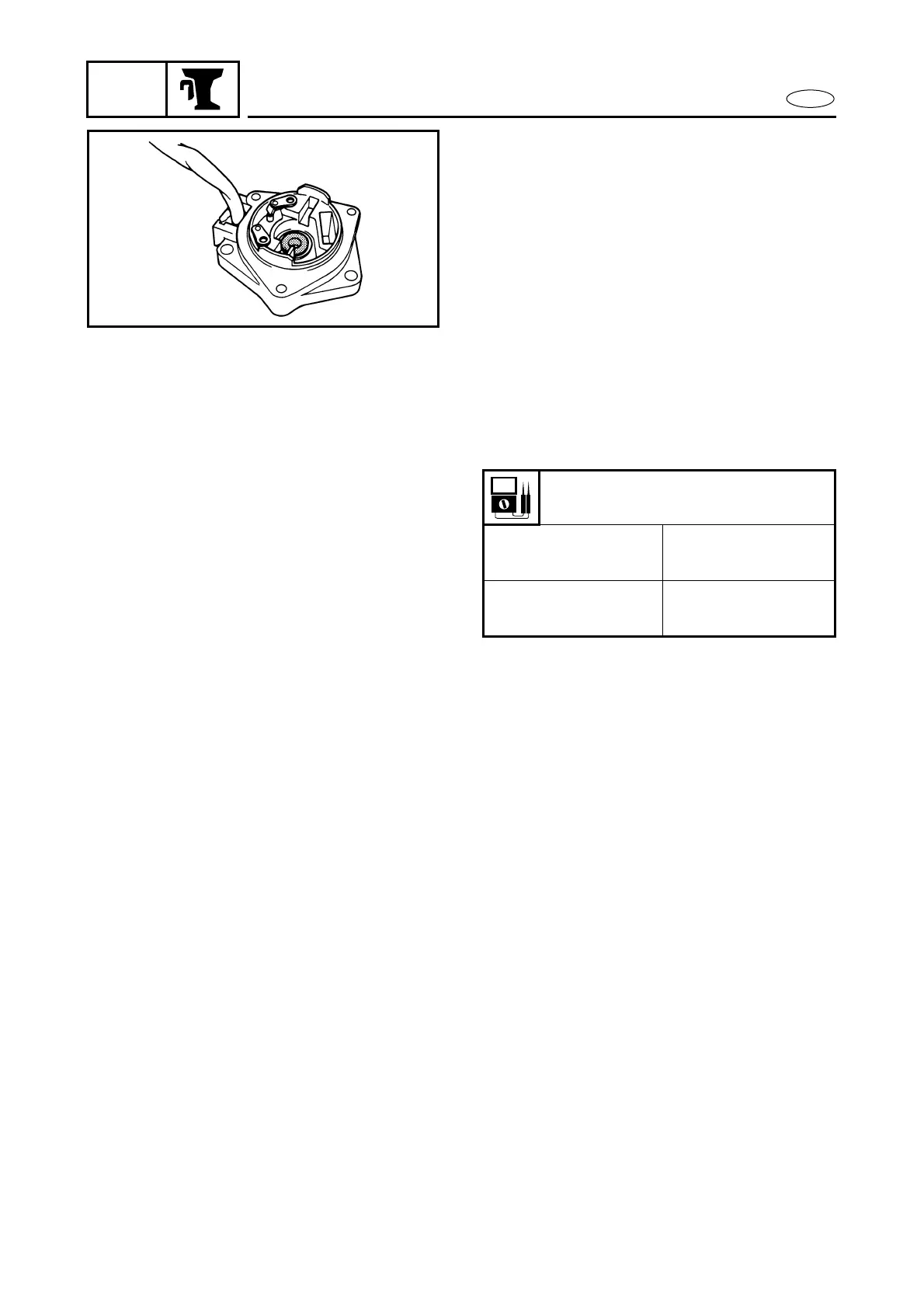

4. Inspect:
● PTT motor base
Cracks/damage → Replace.
5. Inspect:
● Stator bushing
● PTT motor base bushing
Cracks/damage → Replace.
6. Inspect:
● PTT motor base oil seal
Damage/wear → Replace.
PTT motor assembly
1. Check:
● PTT motor operation
Incorrect operation → Repair.
PTT motor operation
Blue (+), Green (–)
Motor turns
clockwise
Green (+), Blue (–)
Motor turns
counterclockwise
