Yamaha F100A - Lower Case Exploded Diagram; Removal and Installation Chart

6-16
E
LOWR
LOWER CASE
LOWER CASE

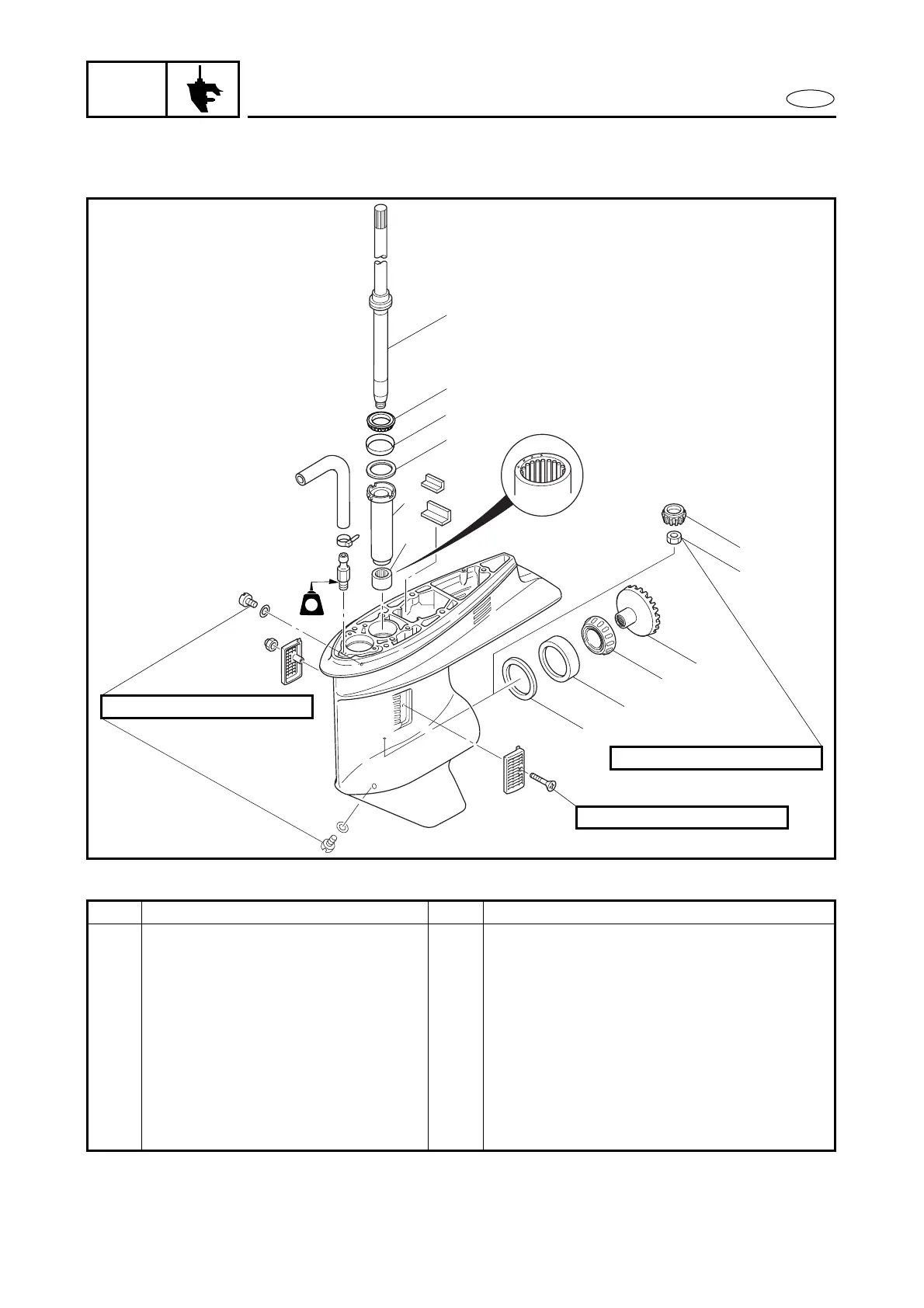

EXPLODED DIAGRAM
1
2
3
4
6
7
10
11
12
5 Nm (0.5 m
•
kg, 3.6 ft
•
Ib)
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
95 Nm (9.5 m
•
kg, 68 ft
•
Ib)
9
8
5
LT
LT
572
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
LOWER CASE DISASSEMBLY Follow the left “Step” for removal.
Propeller shaft housing assy. Refer to “PROPELLER SHAFT HOUSING
ASSY.”.
1 Pinion gear nut 1
2 Pinion gear 1
3 Drive shaft 1
4 Forward gear 1
5 Bearing 1 Do not reuse if separated from the for-
ward gear.
6 Bearing race 1
