Yamaha F100A - Propeller Shaft Housing Assy. Disassembly

6-9
E
LOWR
PROPELLER SHAFT HOUSING ASSY.

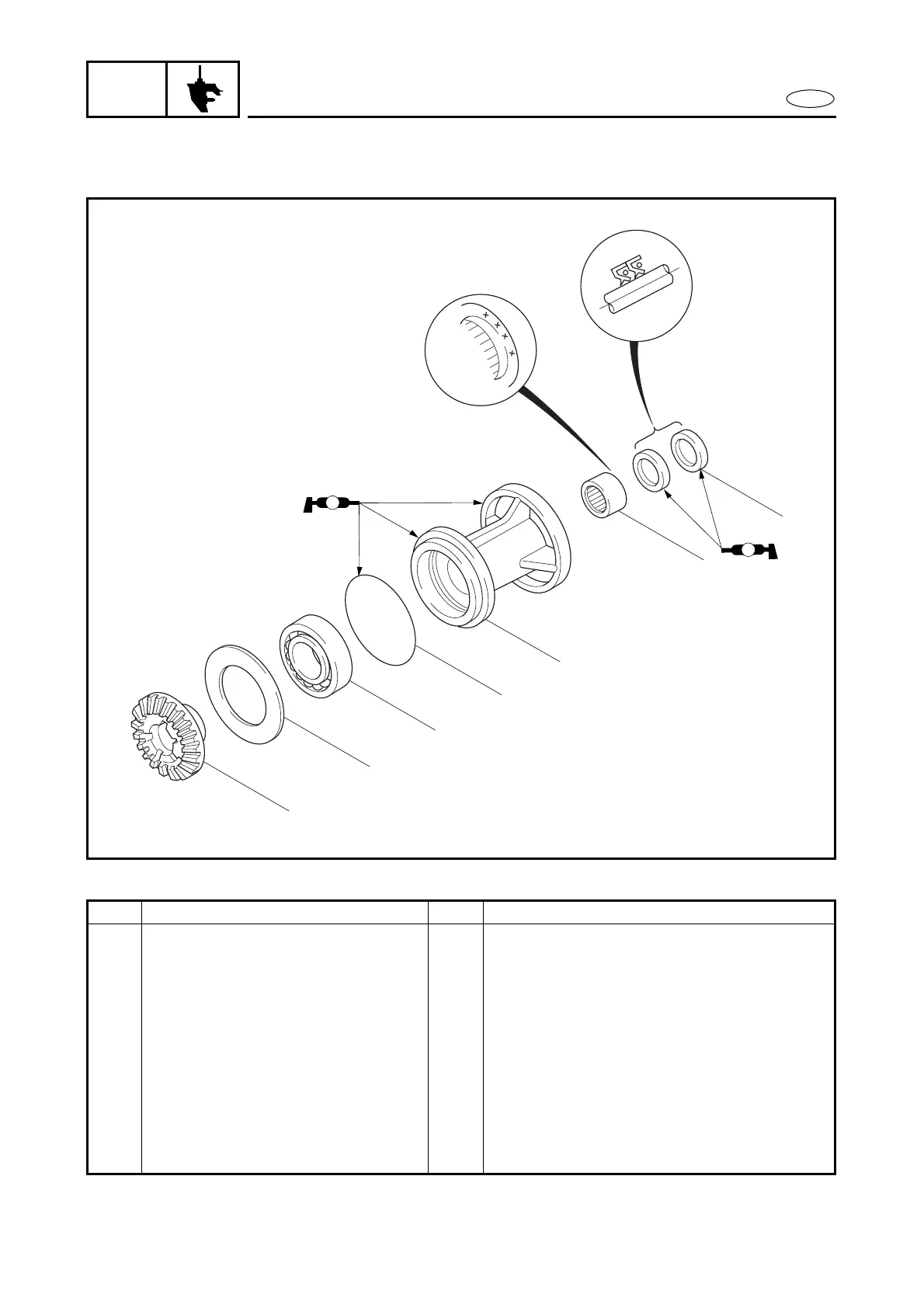

EXPLODED DIAGRAM
2
3
4
1
5
6
7
A
A
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
PROPELLER SHAFT HOUSING
ASSY. DISASSEMBLY
Follow the left “Step” for removal.
1 O-ring 1
2 Reverse gear 1
3 Thrust washer 1
4 Ball bearing 1
5 Oil seal 2
6 Needle bearing 1
7 Propeller shaft housing 1
Reverse the disassembly steps for
installation.
